Electronic Brake Control Module: Diagrams



Antilock Brake System Connector End Views

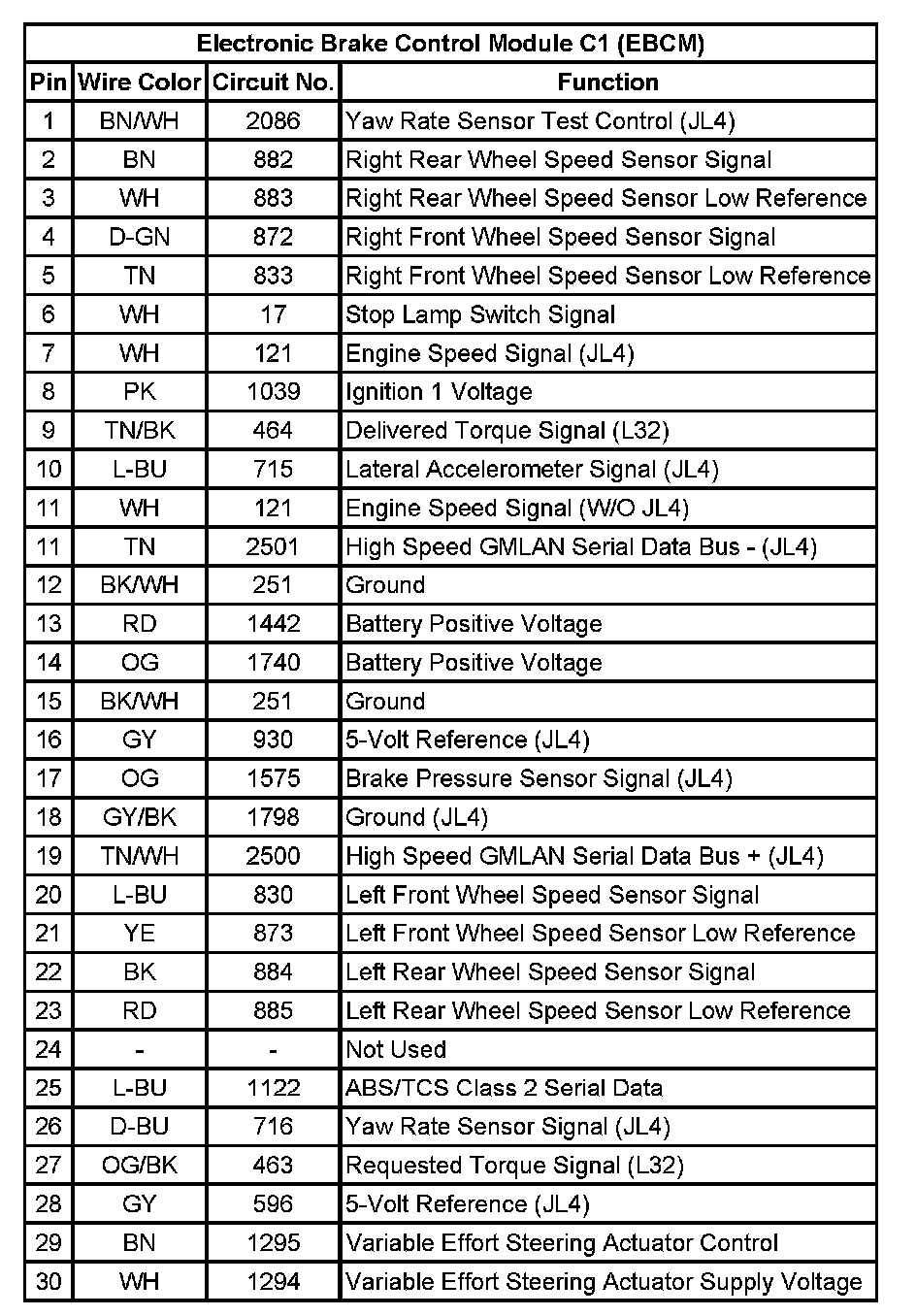

Electronic Brake Control Module C1 (EBCM):
