Home >> Pontiac >> 2007 >> Grand Prix V6-3.8L SC >> Repair and Diagnosis >> Power and Ground Distribution >> Locations >> Footwell Views

Footwell Views

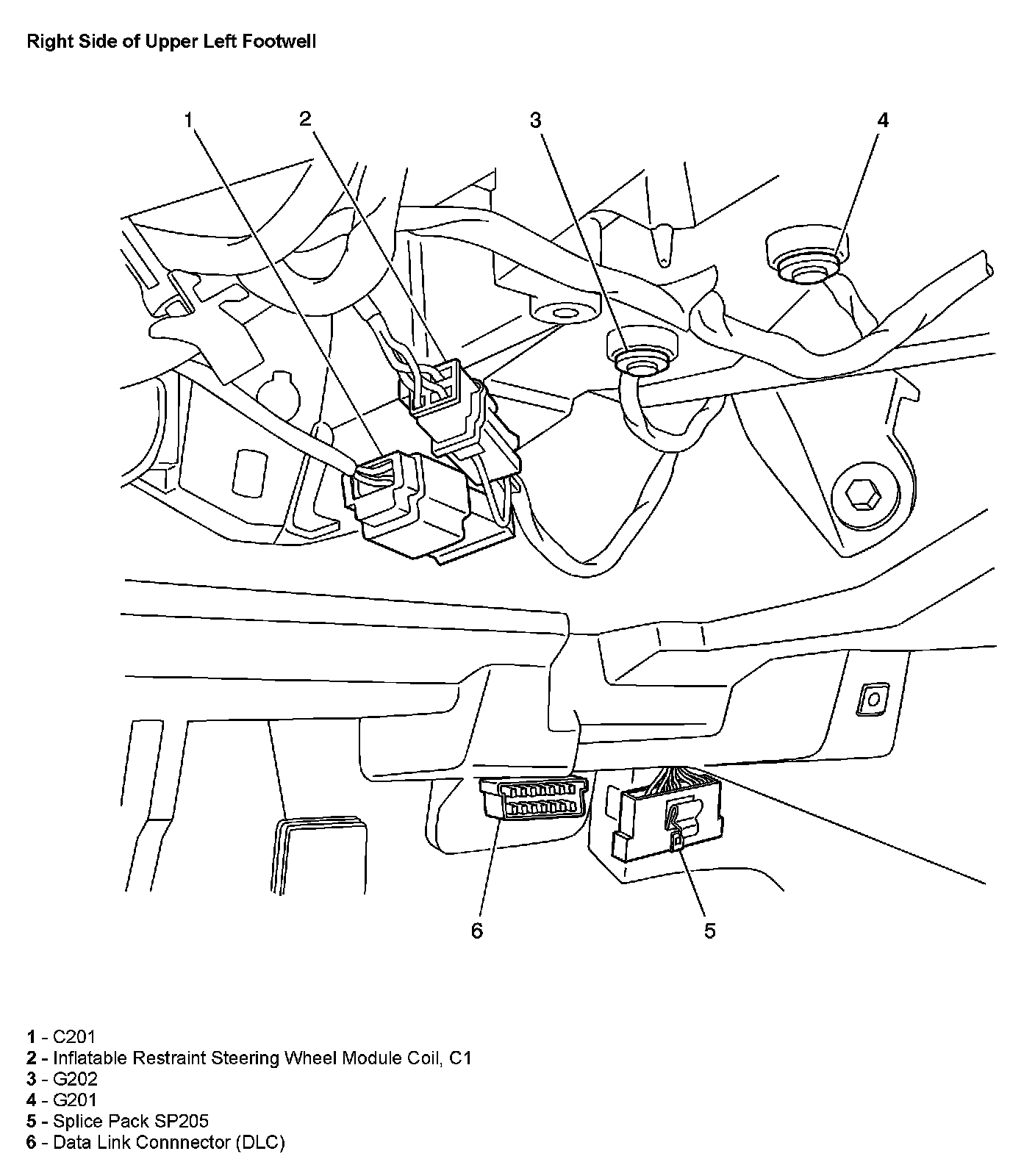

Right Side Of Upper Left Footwell:
