Underhood Fuse Block



Fuse Block - Underhood - Label (With RPO Code L26/L32):

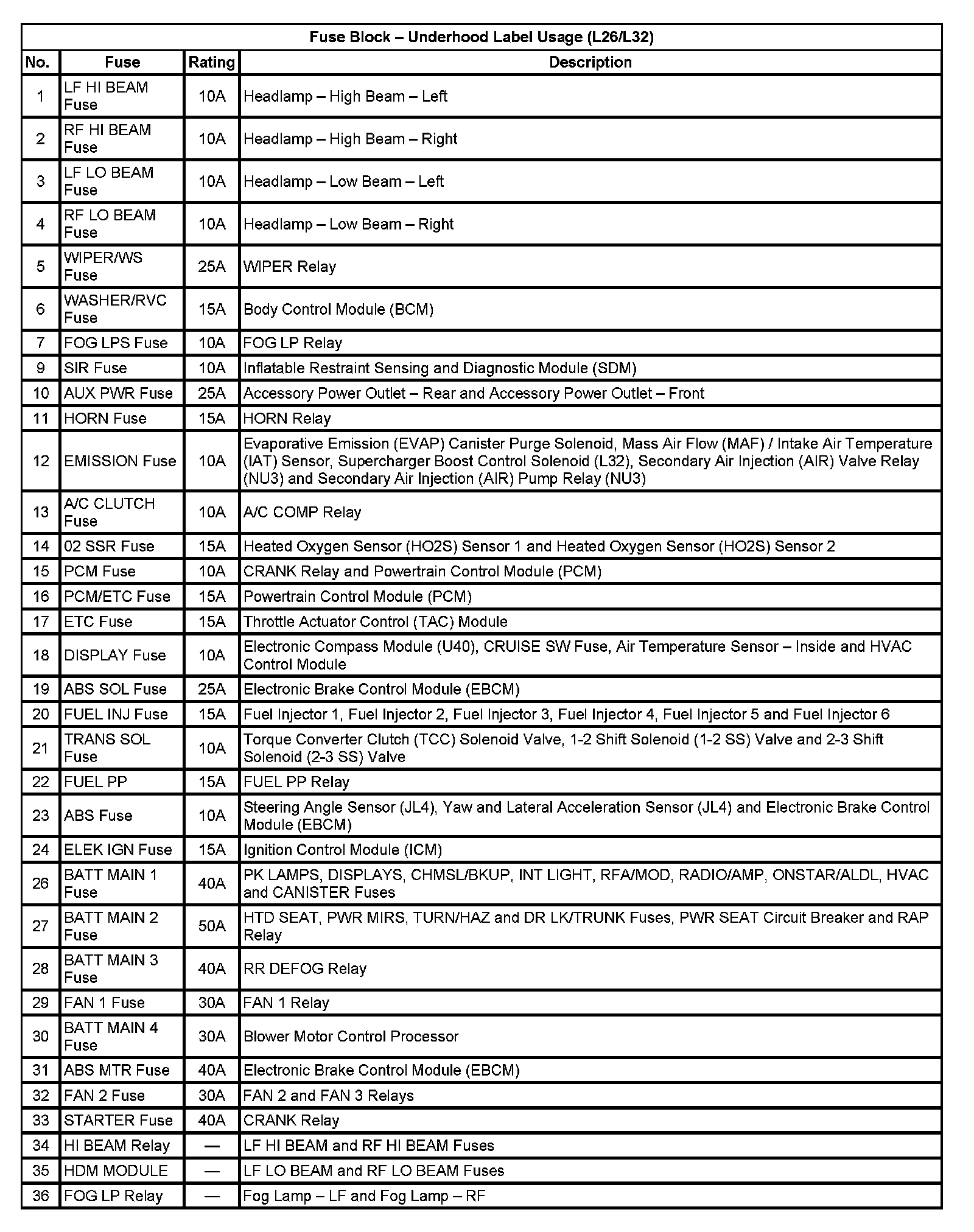

Fuse Block - Underhood Label Usage (With RPO Code L26/L32):

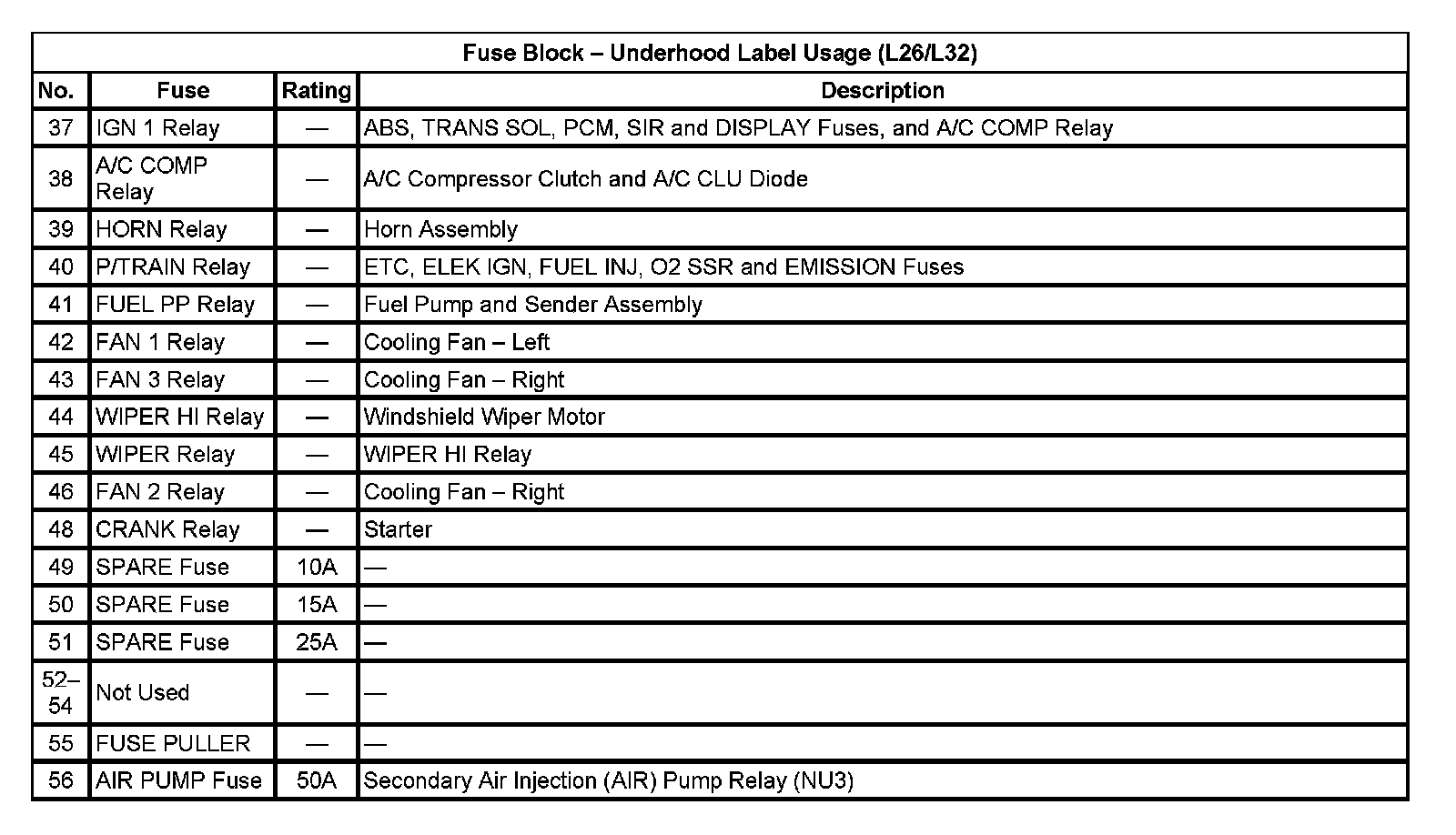

Fuse Block - Underhood Label Usage (With RPO Code L26/L32) (Part 2):
