Starting and Charging: Locations



Engine Electrical Component Views

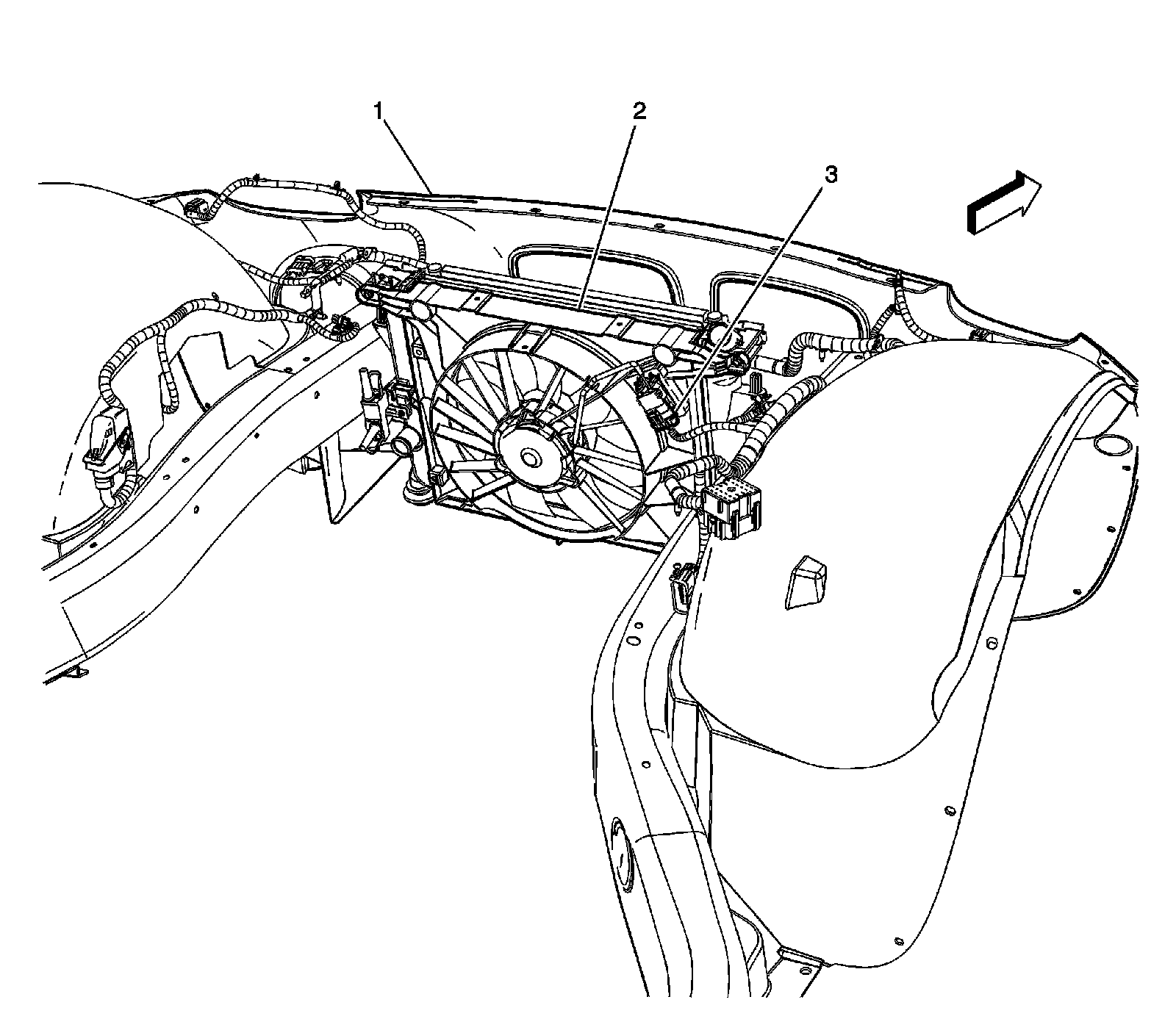

Engine Cooling Fan:





1 - Front Fascia
2 - Engine Cooling Fan
3 - Engine Cooling Fan Connector
