Home >> Pontiac >> 2006 >> Grand Prix V6-3.8L SC VIN 4 >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Scan Tool Output Controls

Scan Tool Output Controls

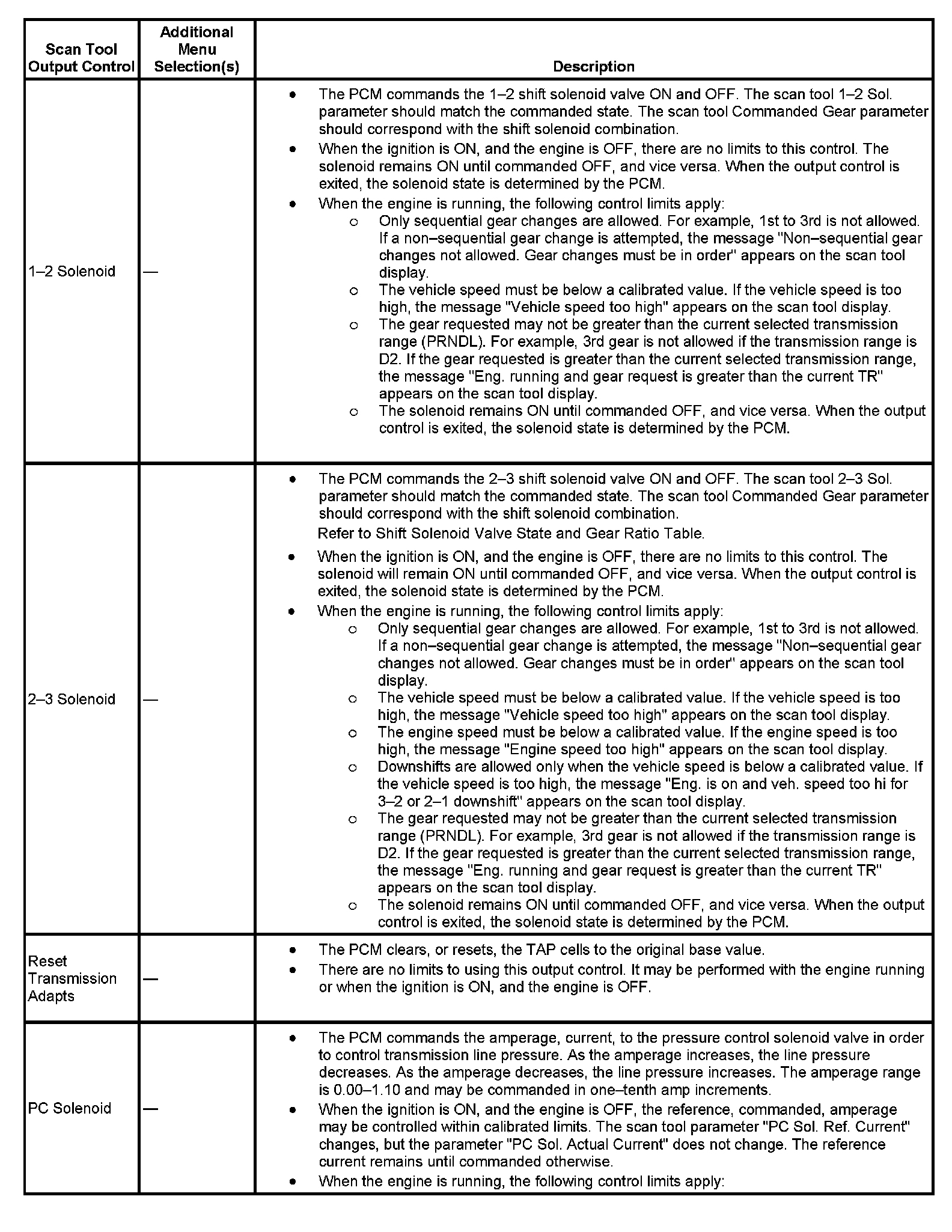

Scan Tool Output Controls 1:

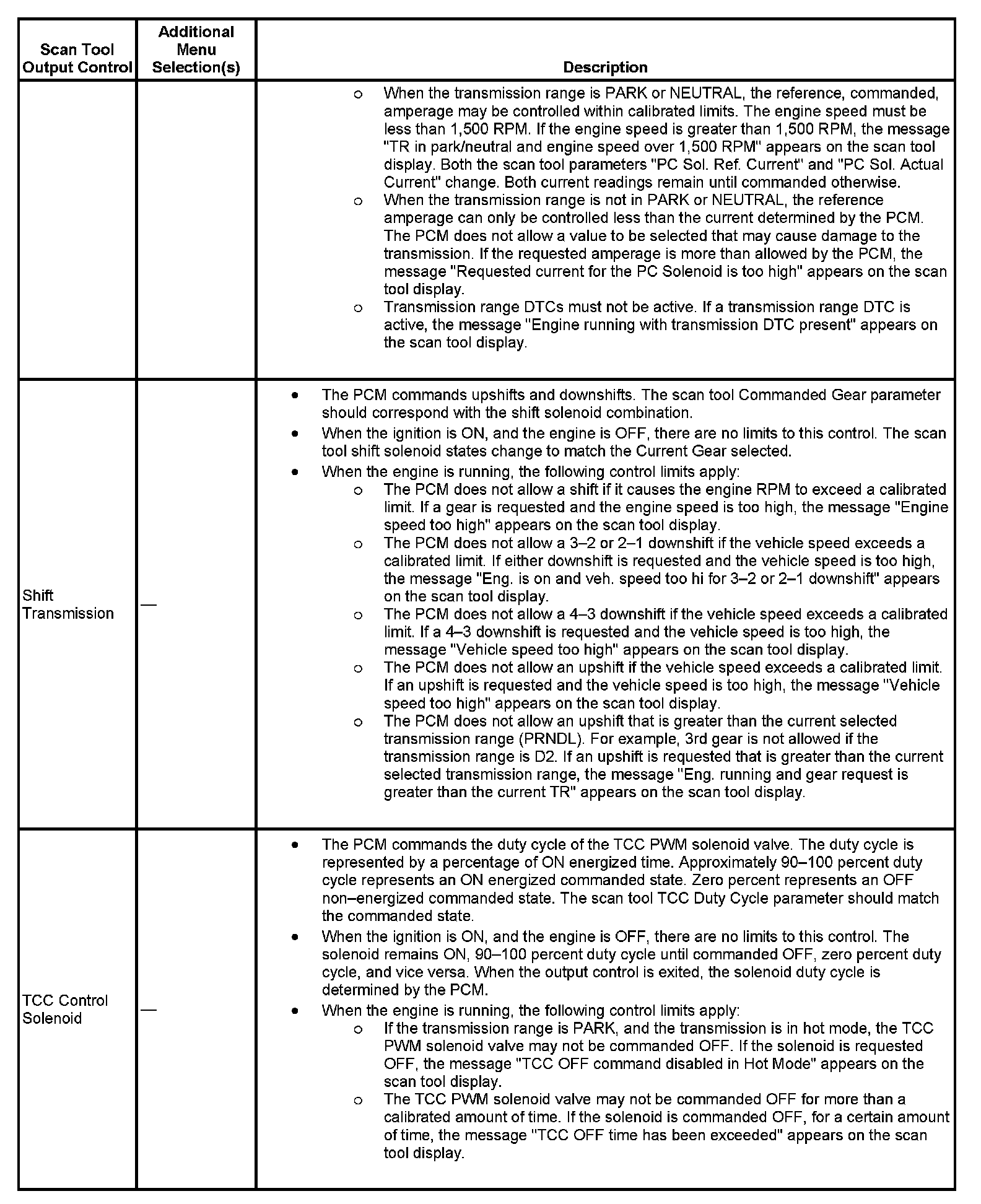

Scan Tool Output Controls 2:
