Home >> Pontiac >> 2006 >> G6 V6-3.9L VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> Window Switch - Driver C2

Window Switch - Driver C2

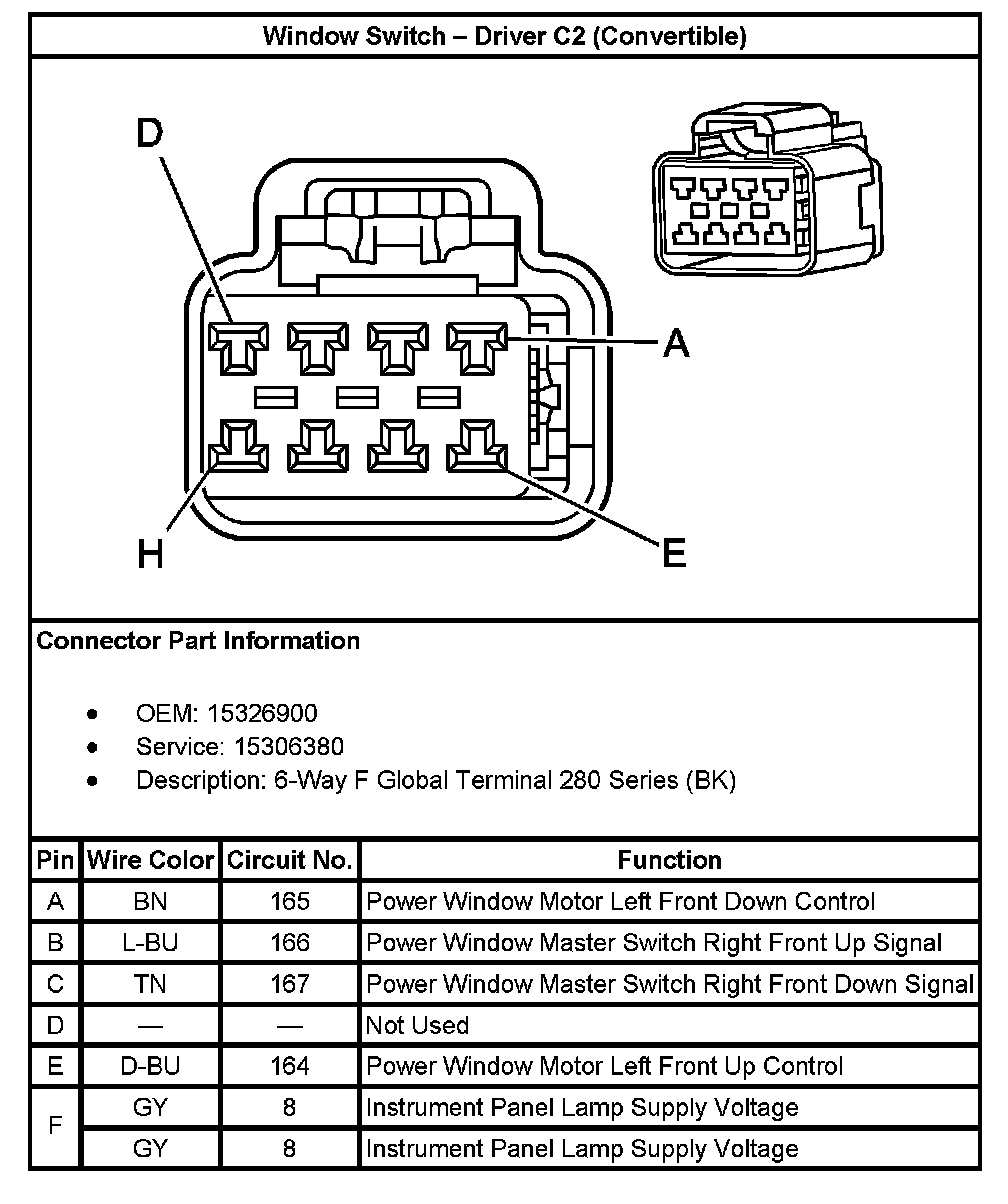

Window Switch - Driver C2 (Convertible):



Window Switch - Driver C2 (Sedan):
