FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Pontiac
>>
2006
>>
G6 V6-3.9L VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>

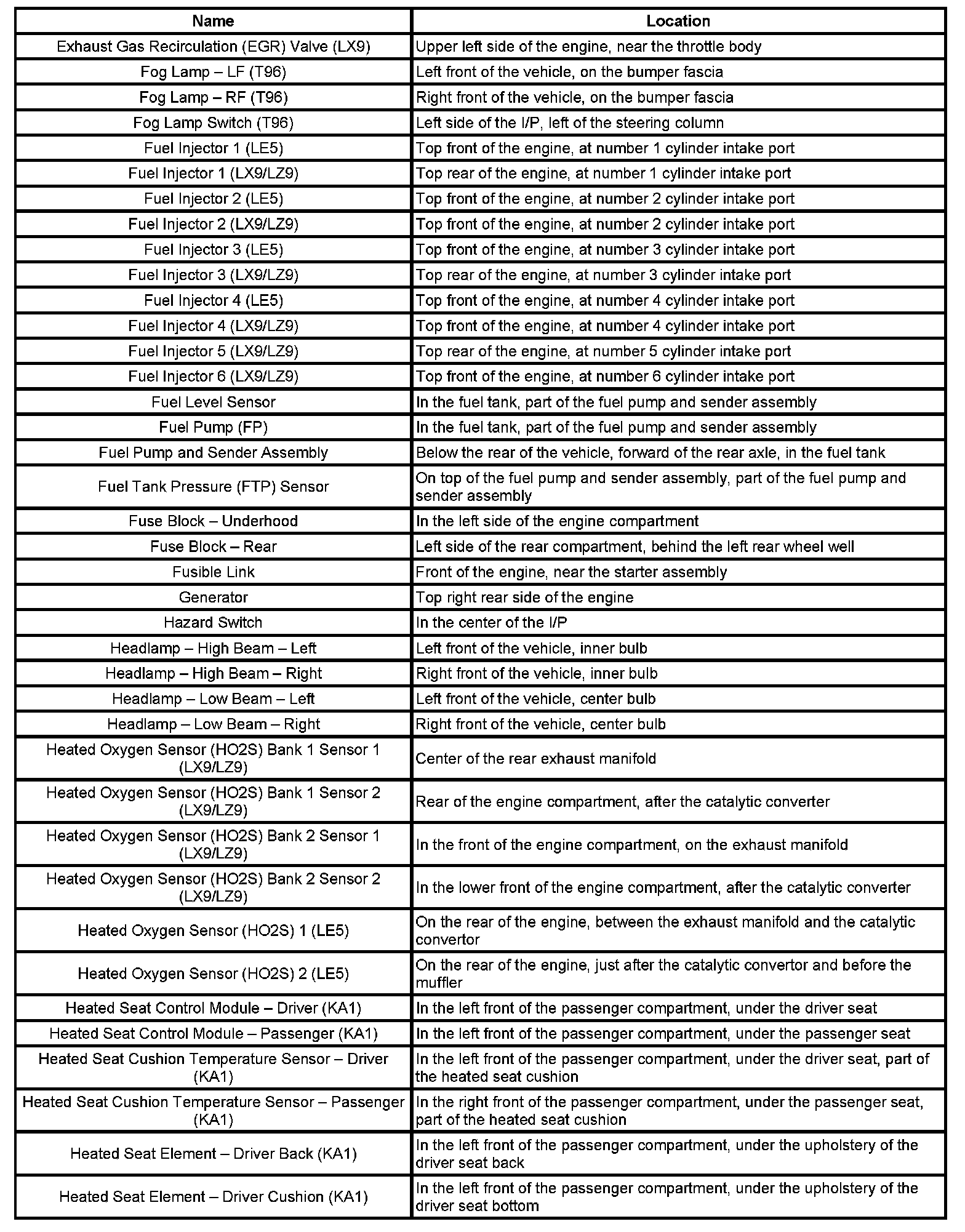

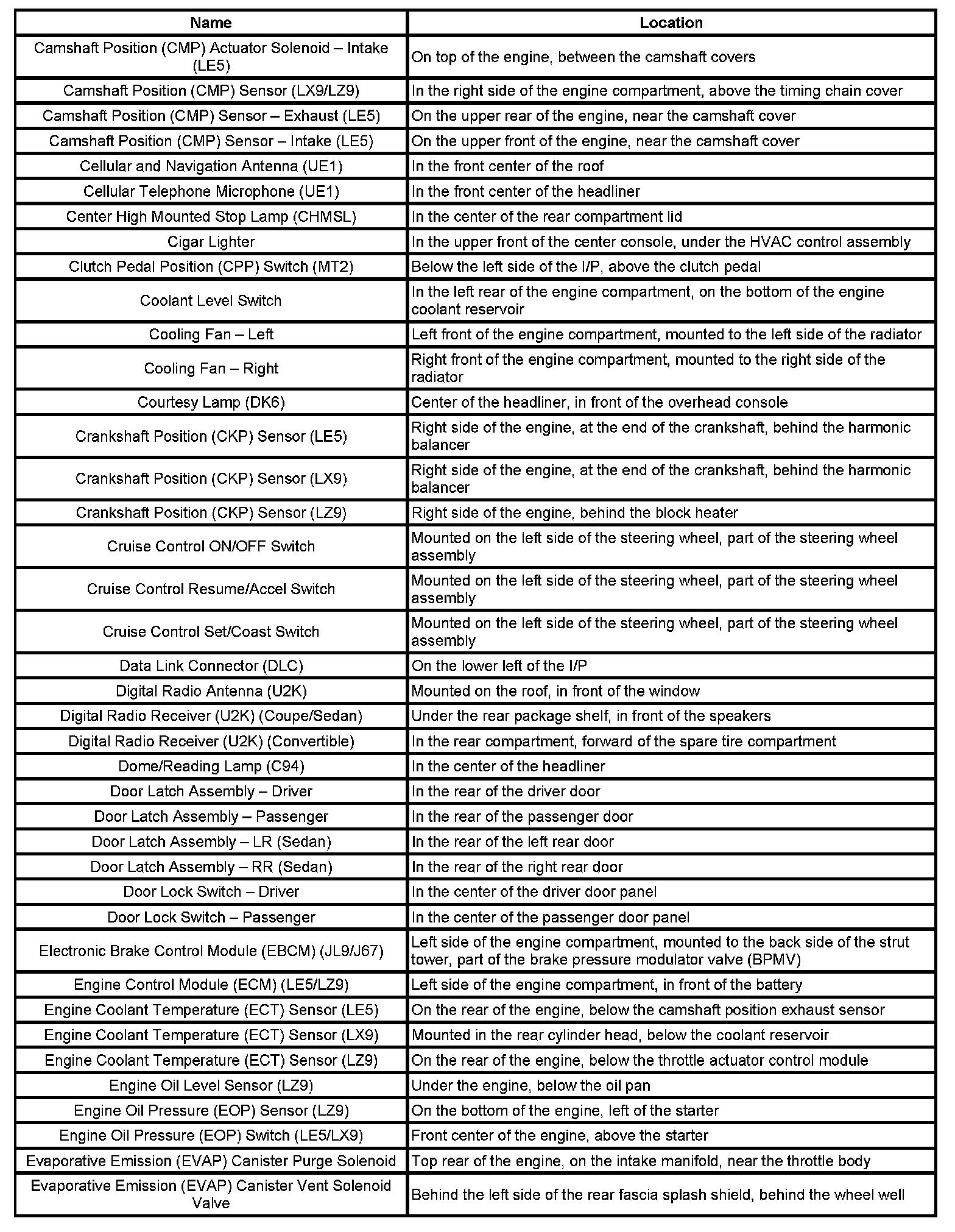

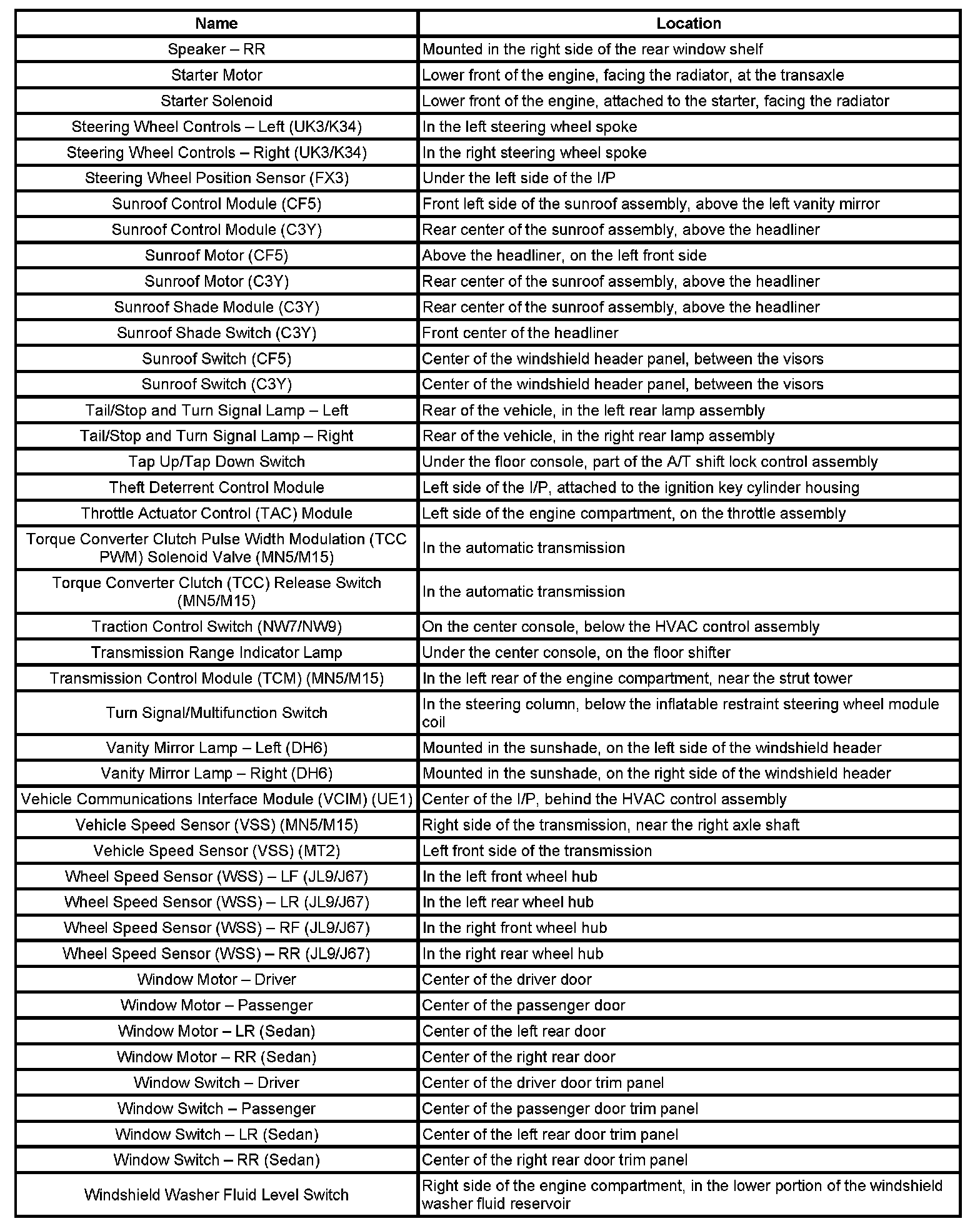

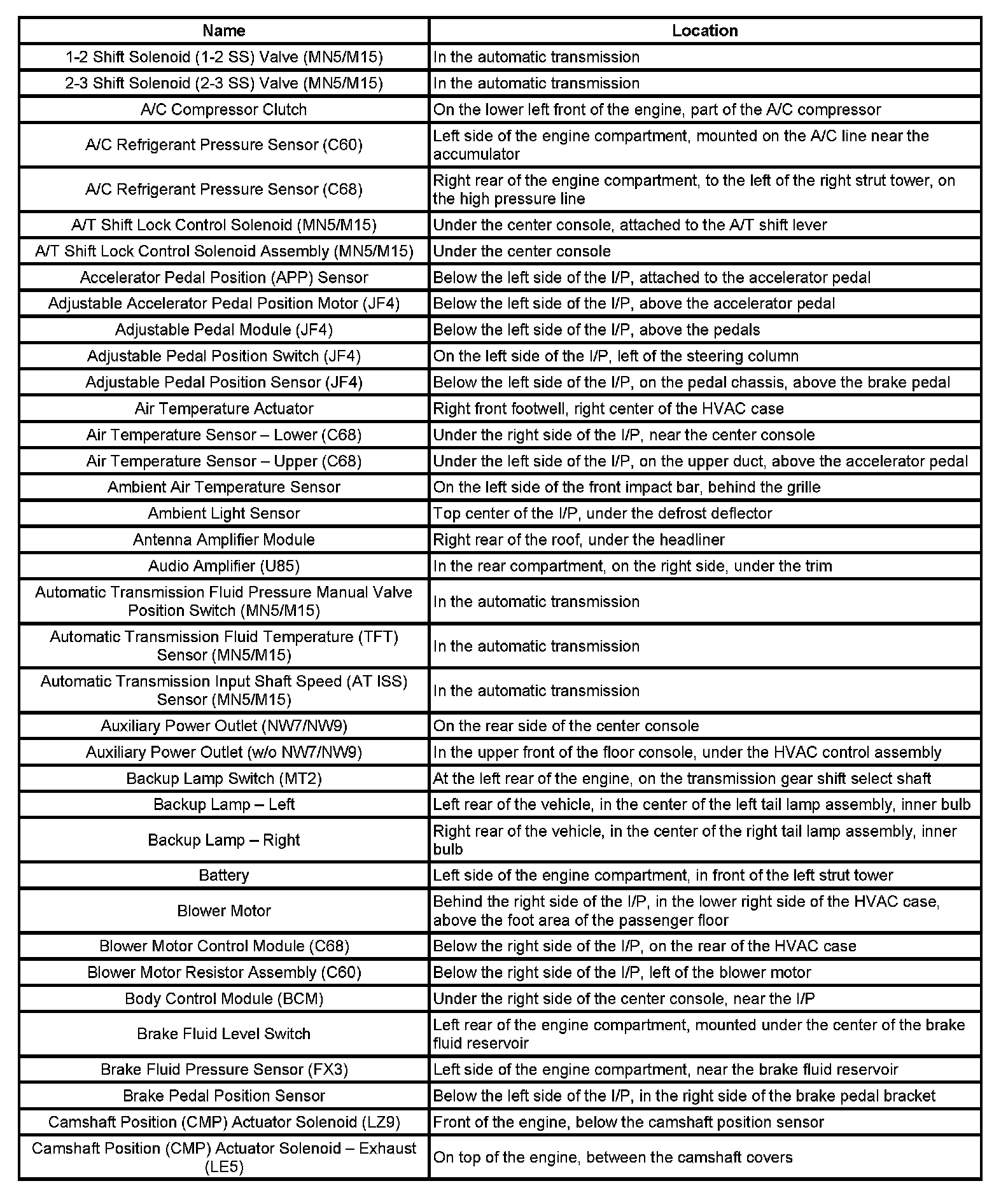

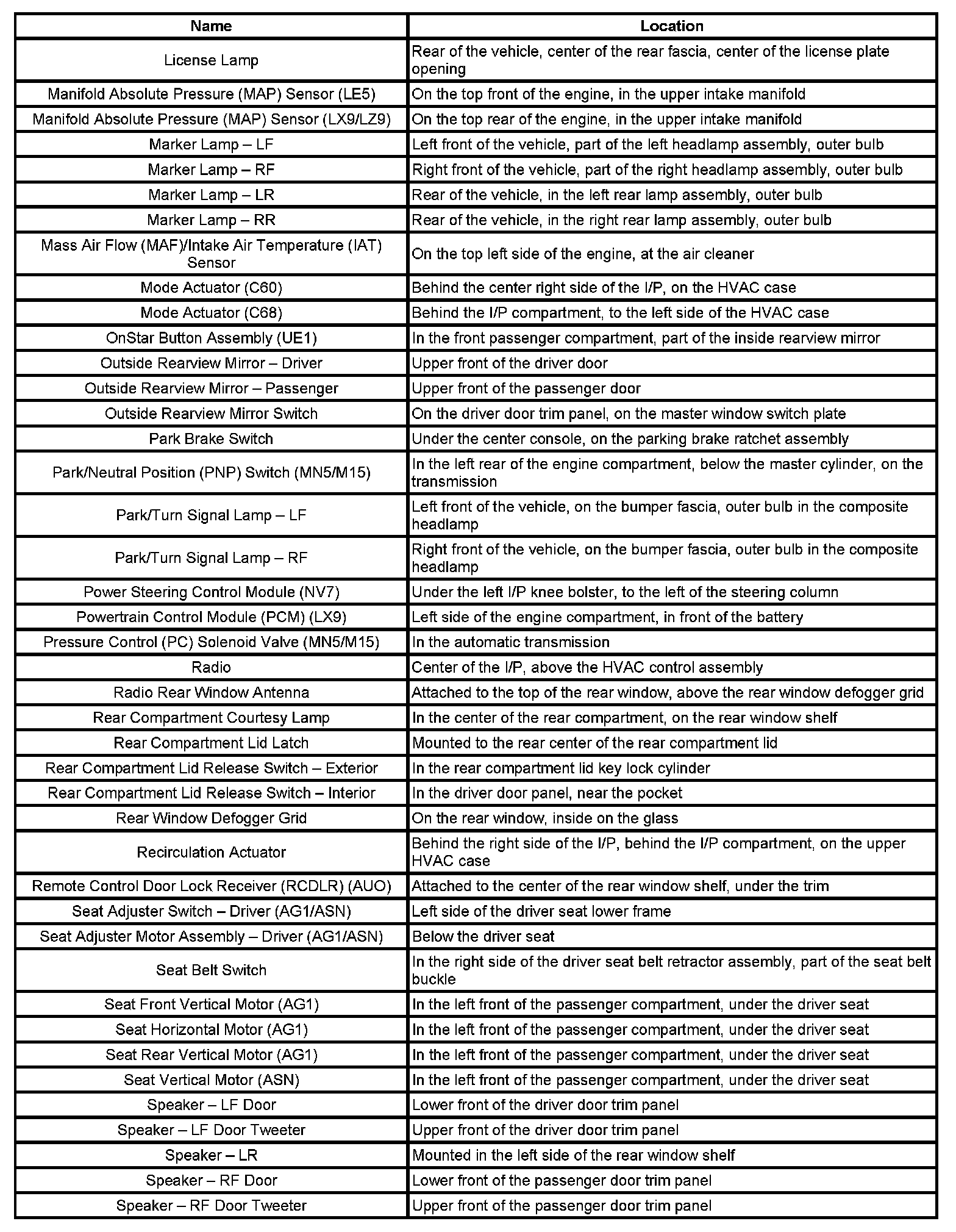

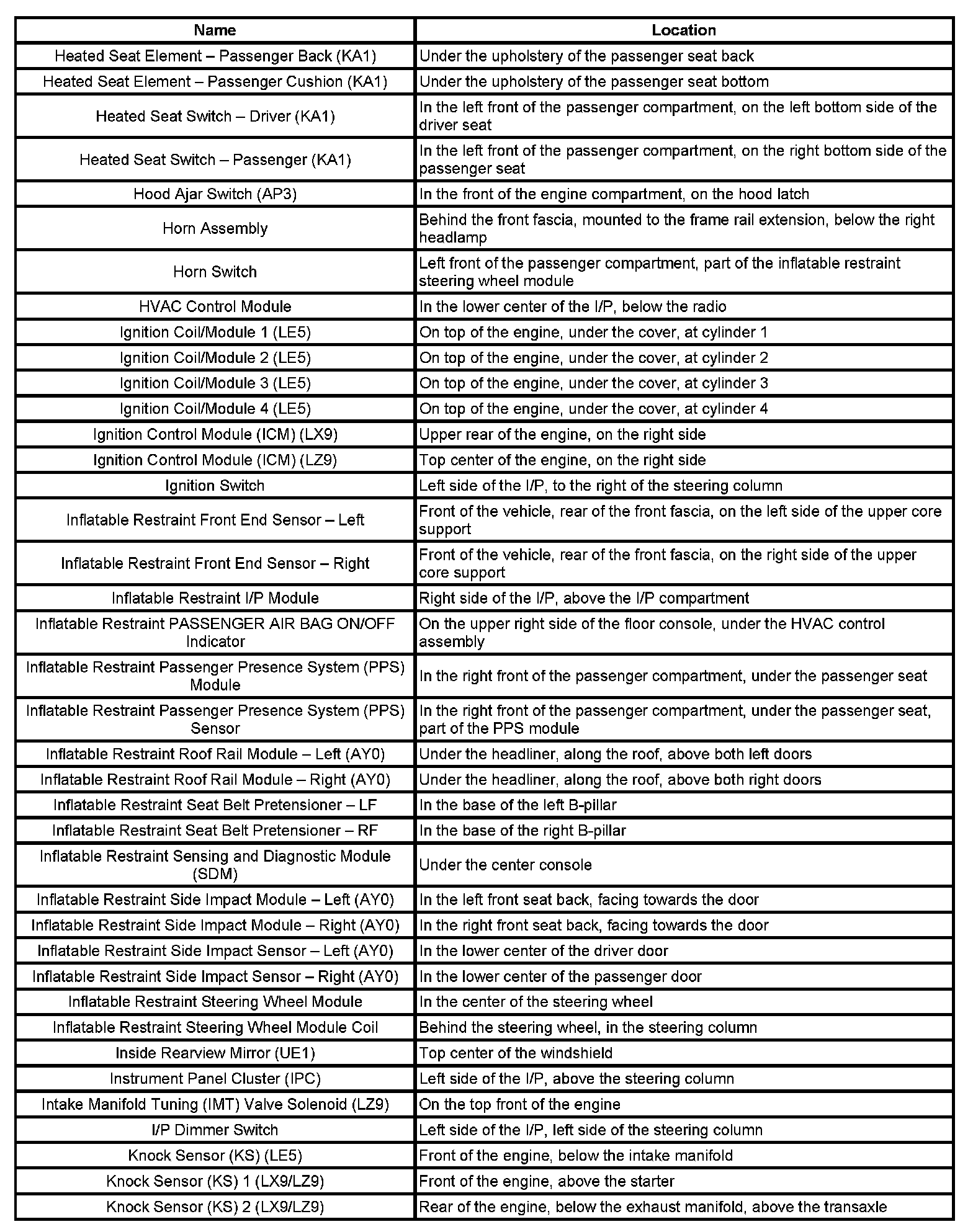

Components
Components
1-2 Sh - Ca:
Ca - Ev:
Ex - He:
He - Kn:
Li - Sp:
Sp - Wi:
Wi - Ya:
