FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Pontiac
>>
2005
>>
Vibe FWD L4-1.8L VIN L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
Overhaul (Unit Repair)
>>

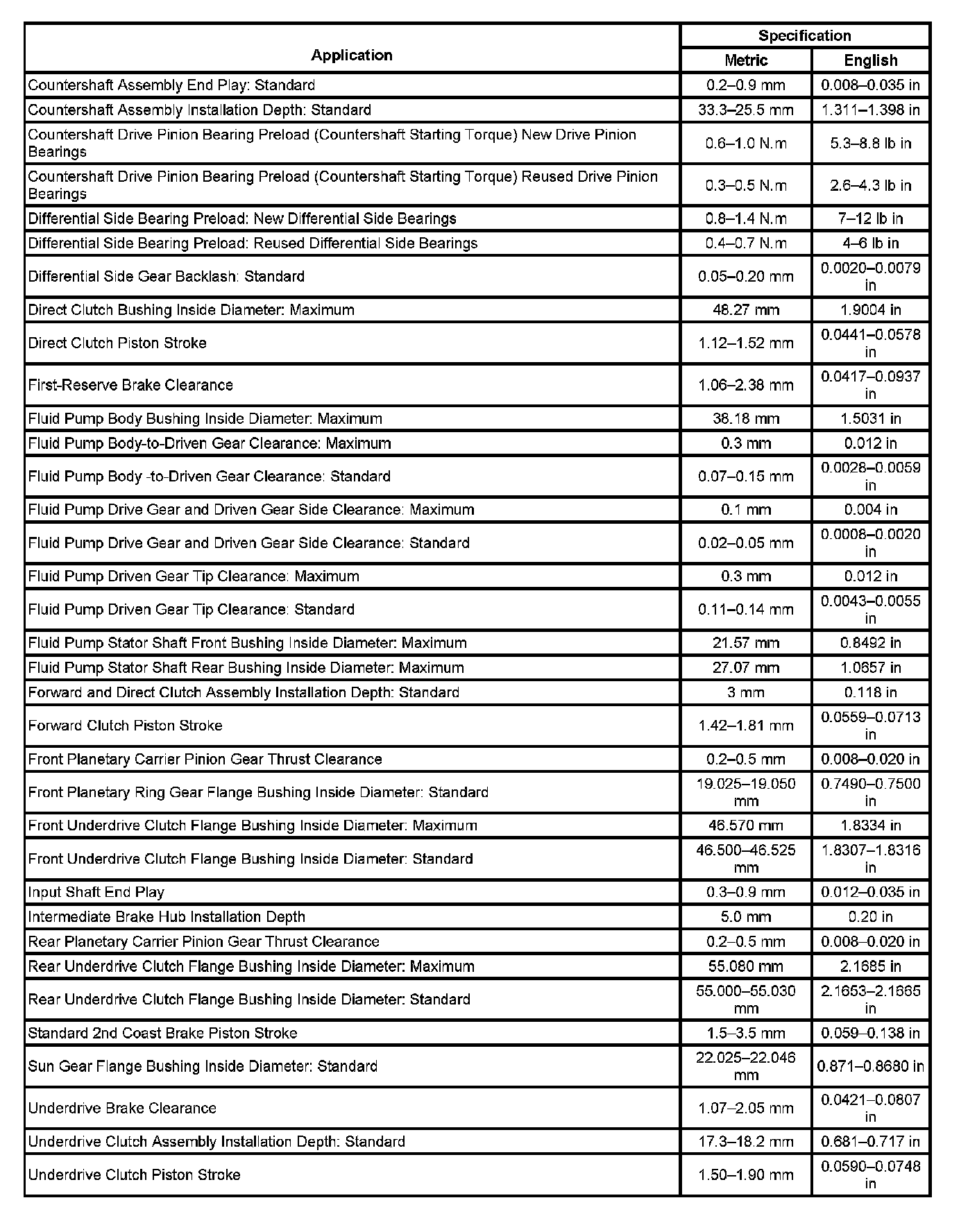

Automatic Transmission Specifications
Automatic Transmission Specifications
Automatic Transmission Specifications:
Automatic Transmission Specifications:
