Normal Scan Tool Data Values

Body Control Module (BCM):

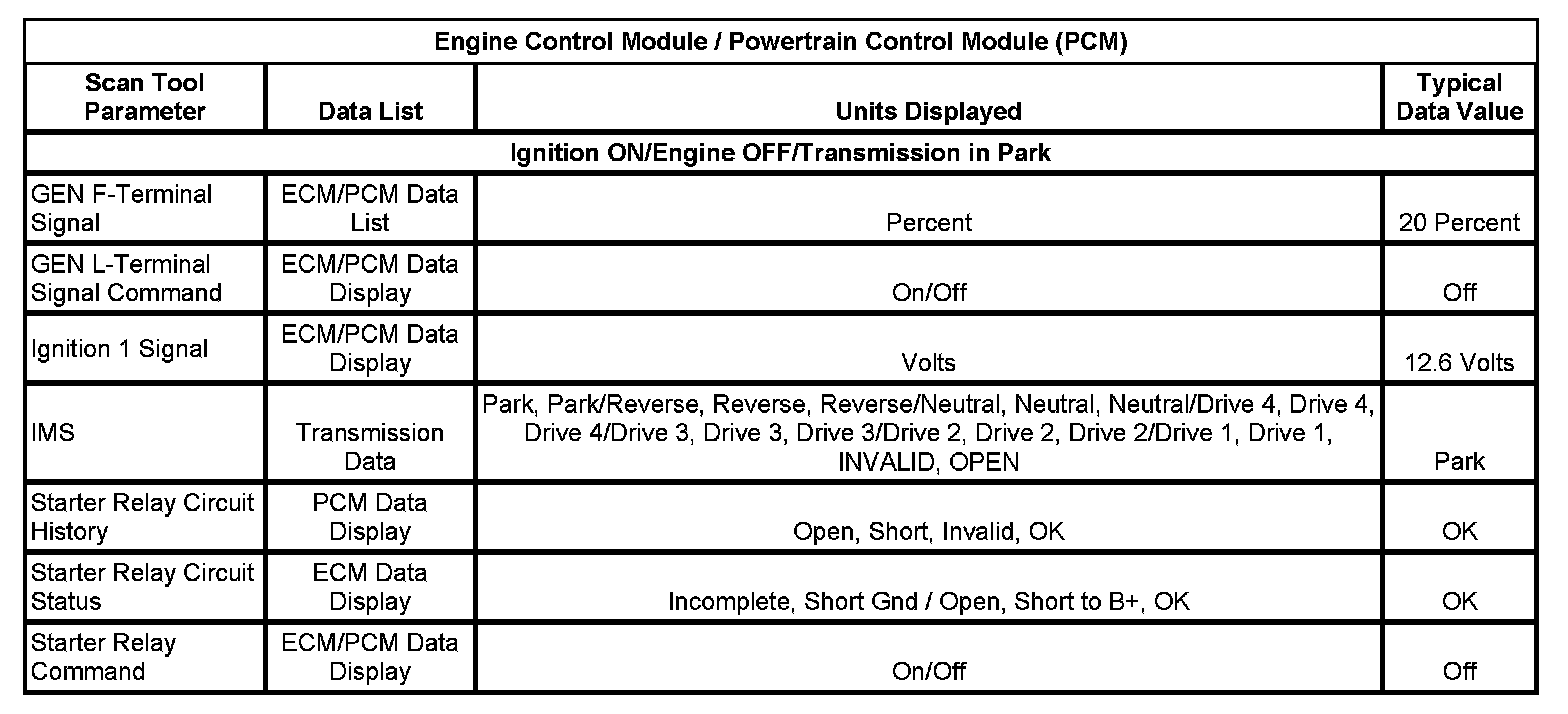

Engine Control Module/Powertrain Control Module (PCM):
