Home >> Pontiac >> 2005 >> Grand Prix V6-3.8L SC VIN 4 >> Repair and Diagnosis >> Diagrams >> Components

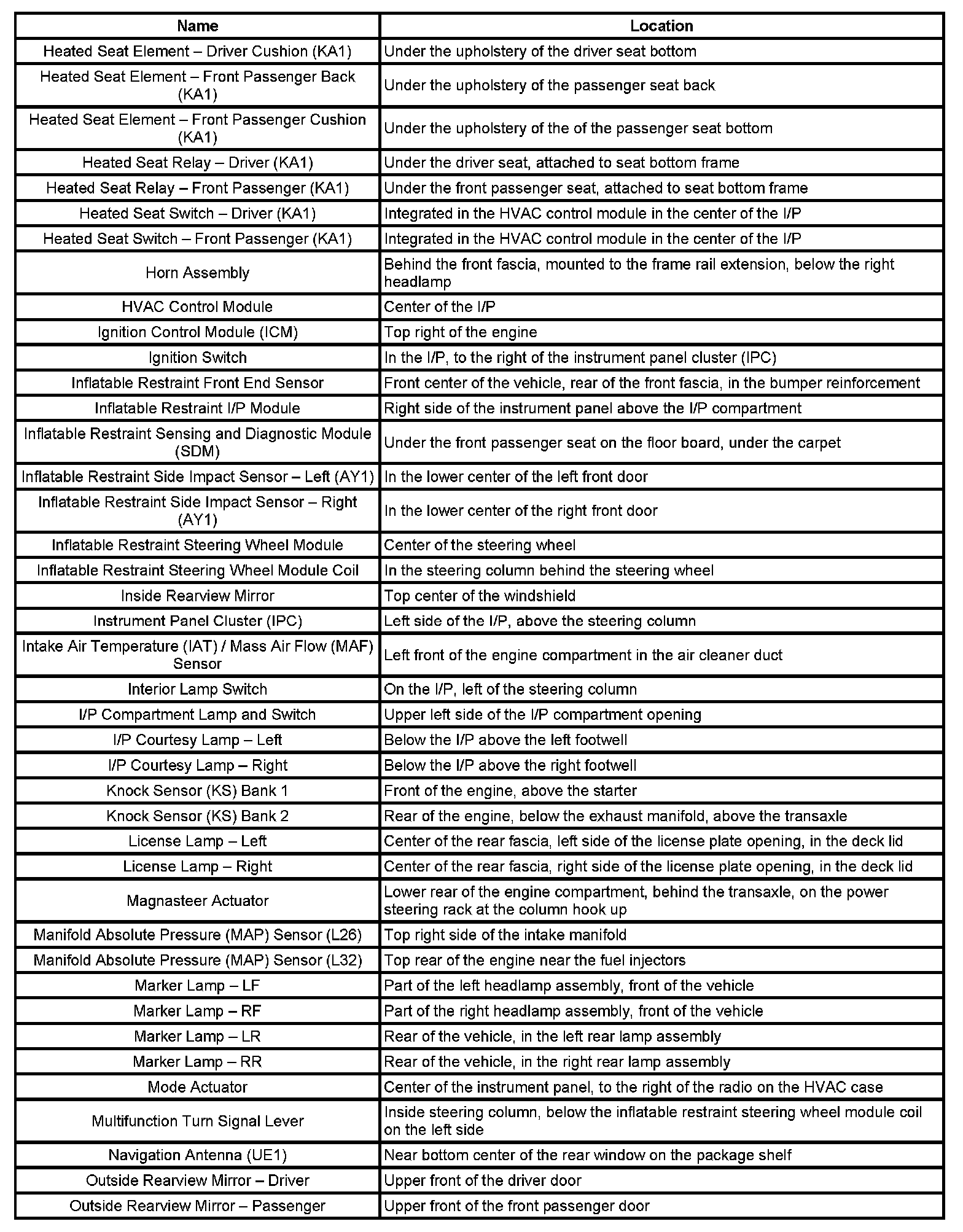

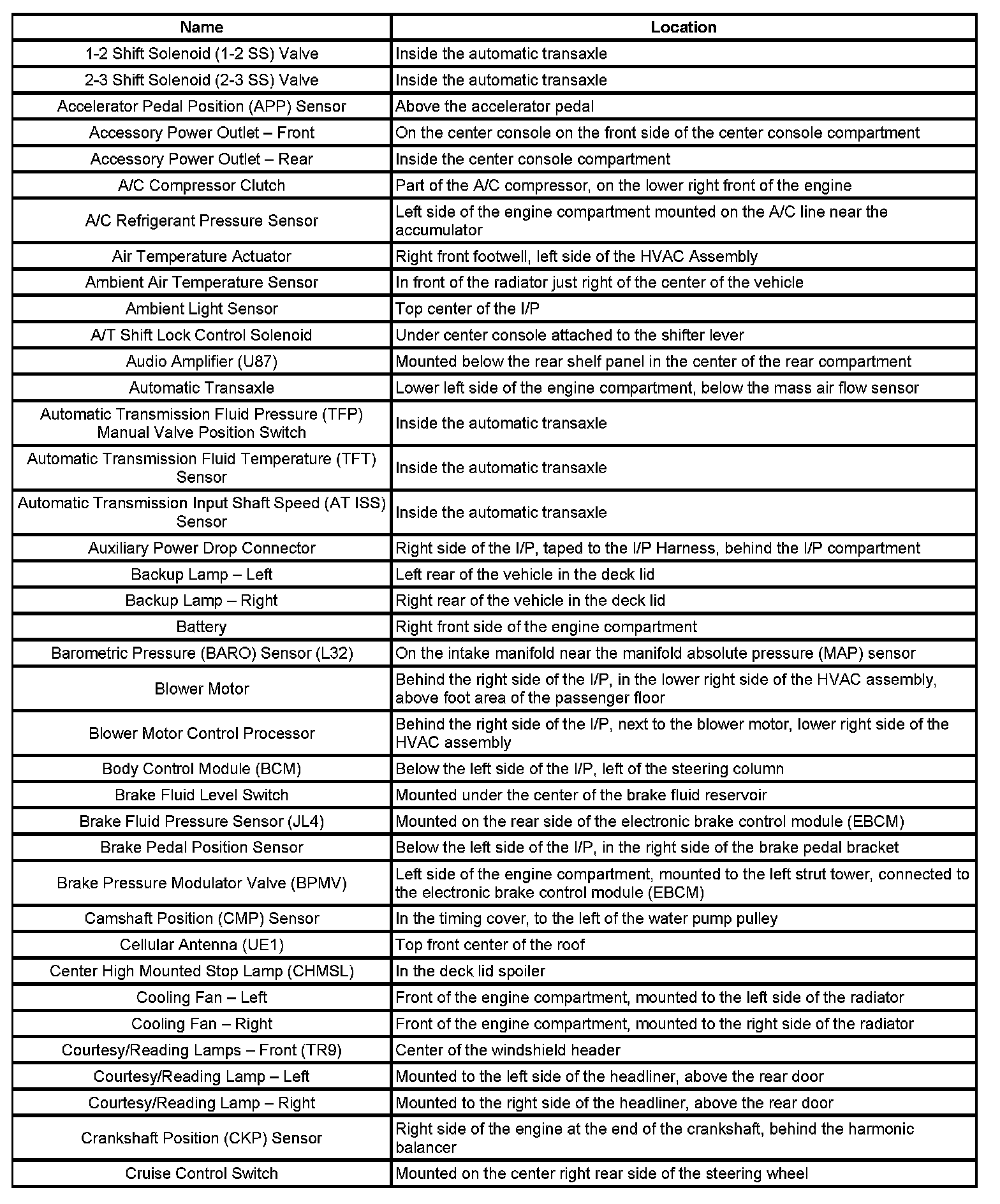

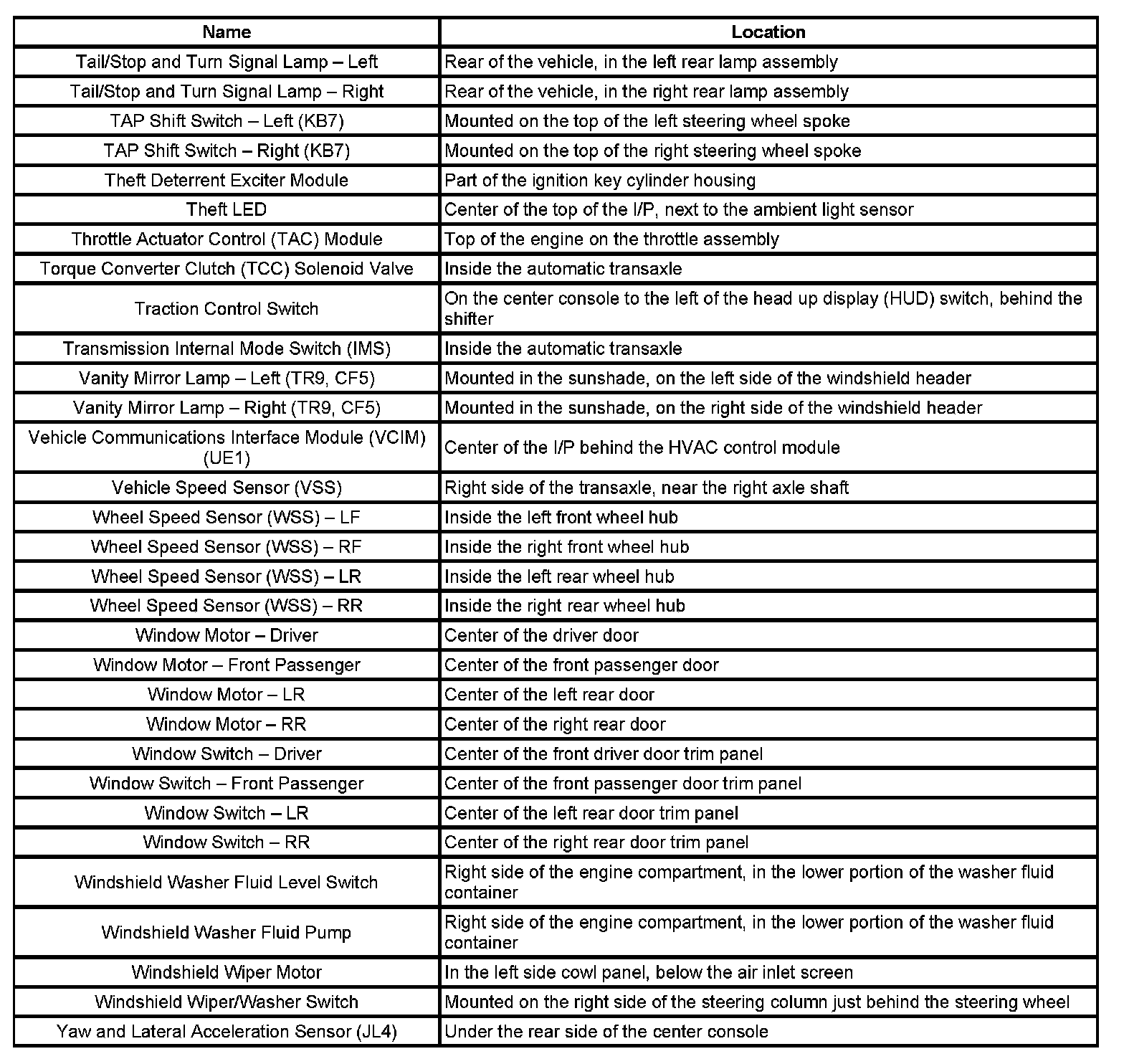

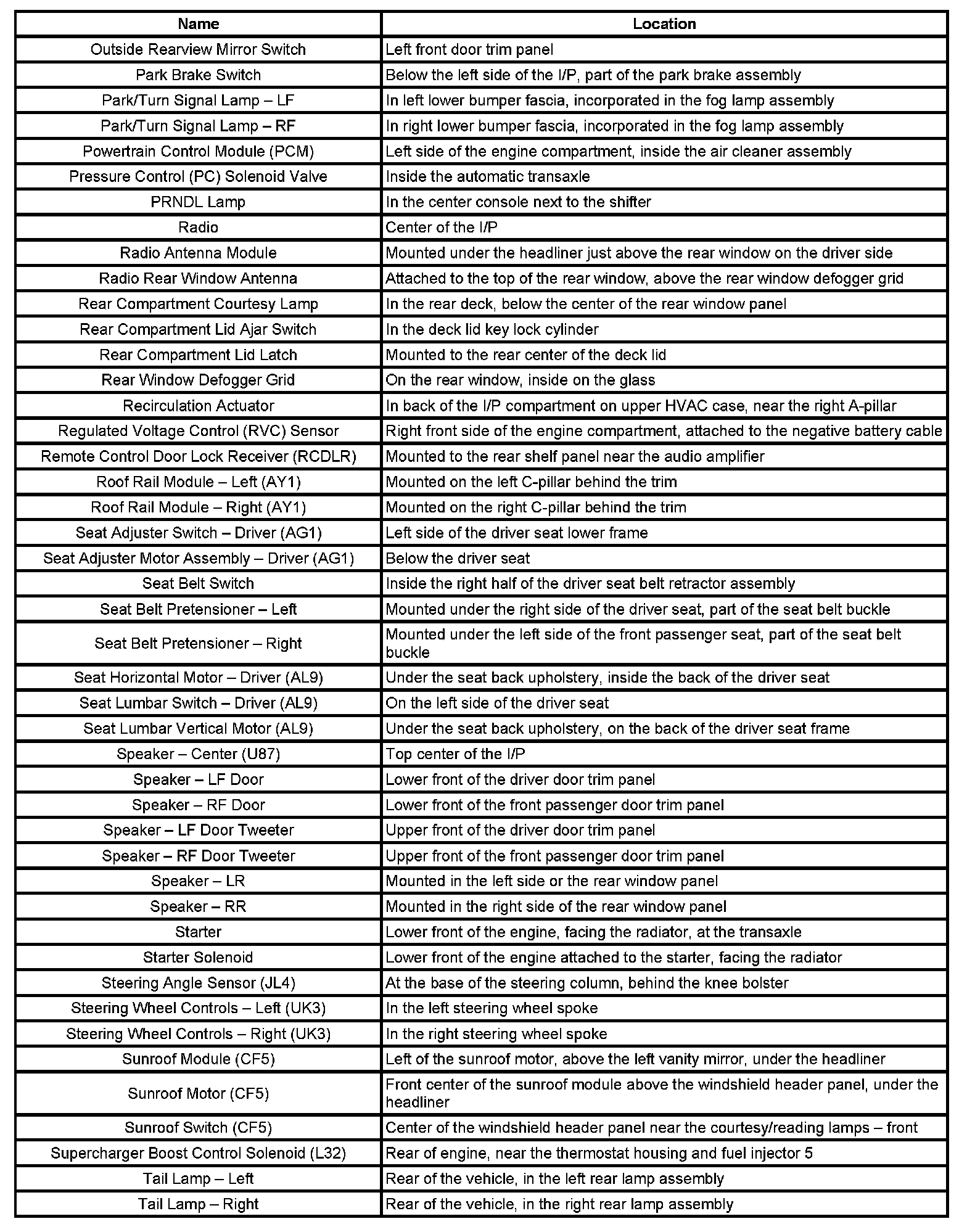

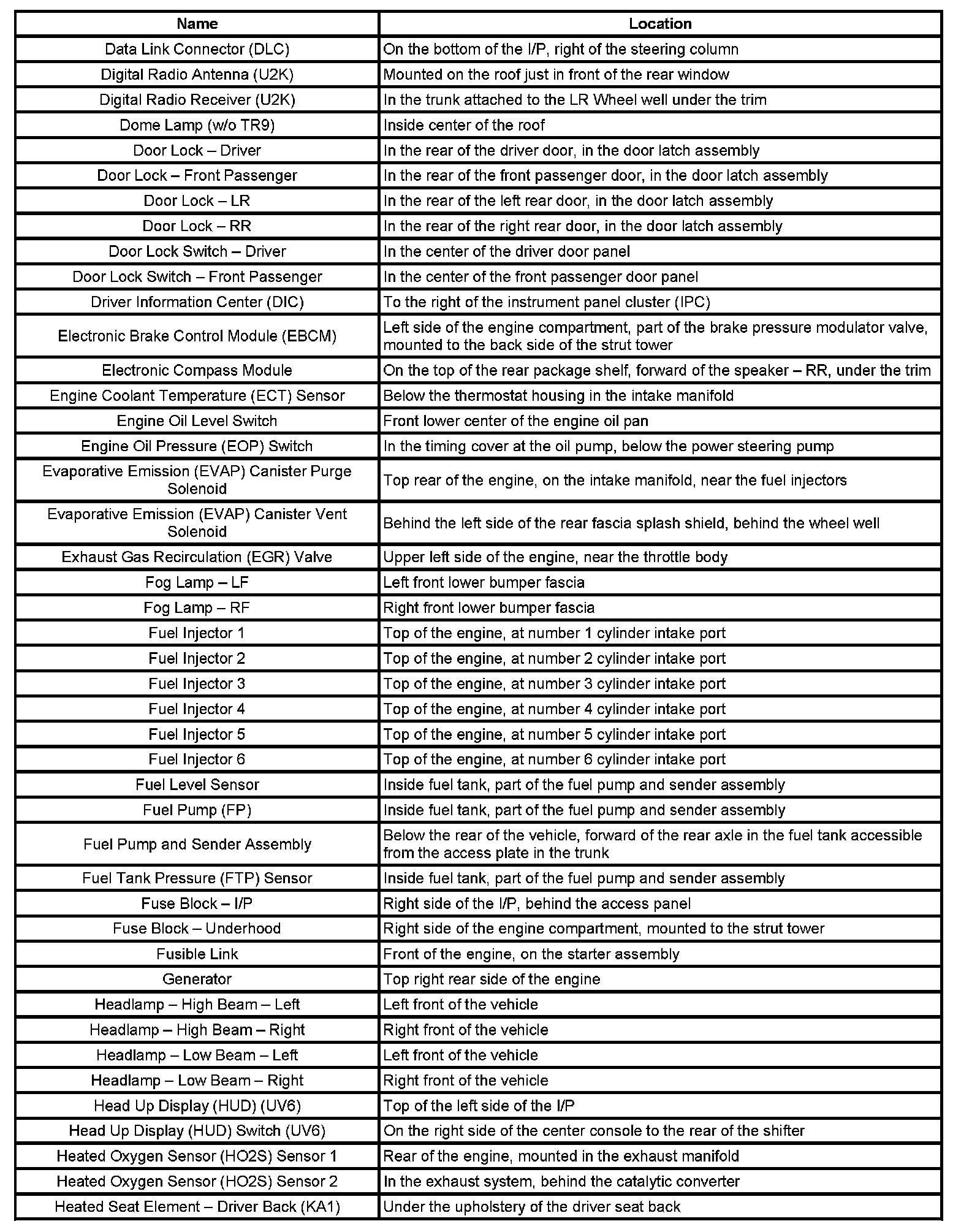

Components

1-2 - Cr:



Da - He:



He - Ou:



Ou - Ta:



Ta - Ya:
