Home >> Pontiac >> 2005 >> Grand AM L4-2.2L VIN F >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Tightening Torques & Sequences

Tightening Torques & Sequences

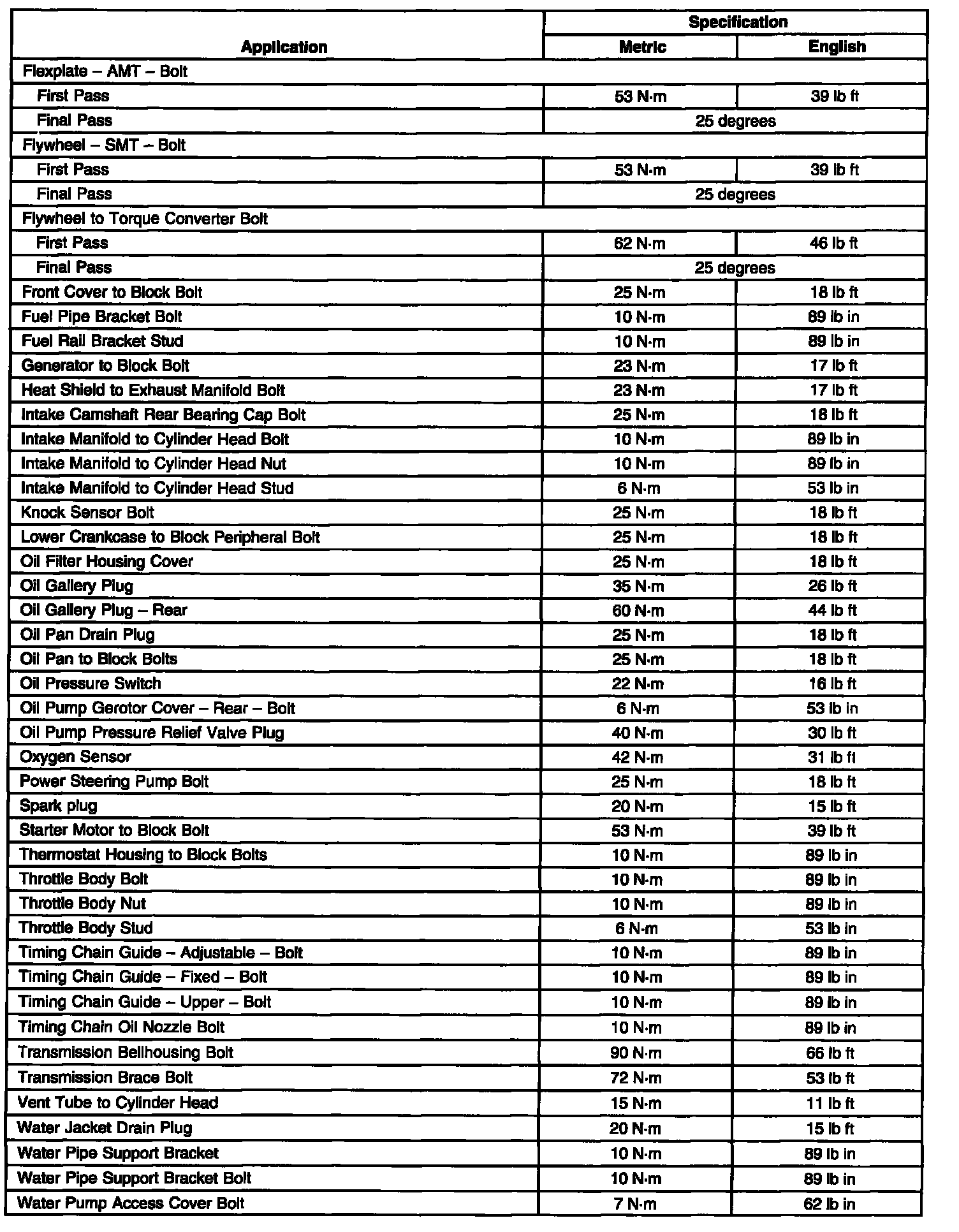

Torque Specifications, Part 1:

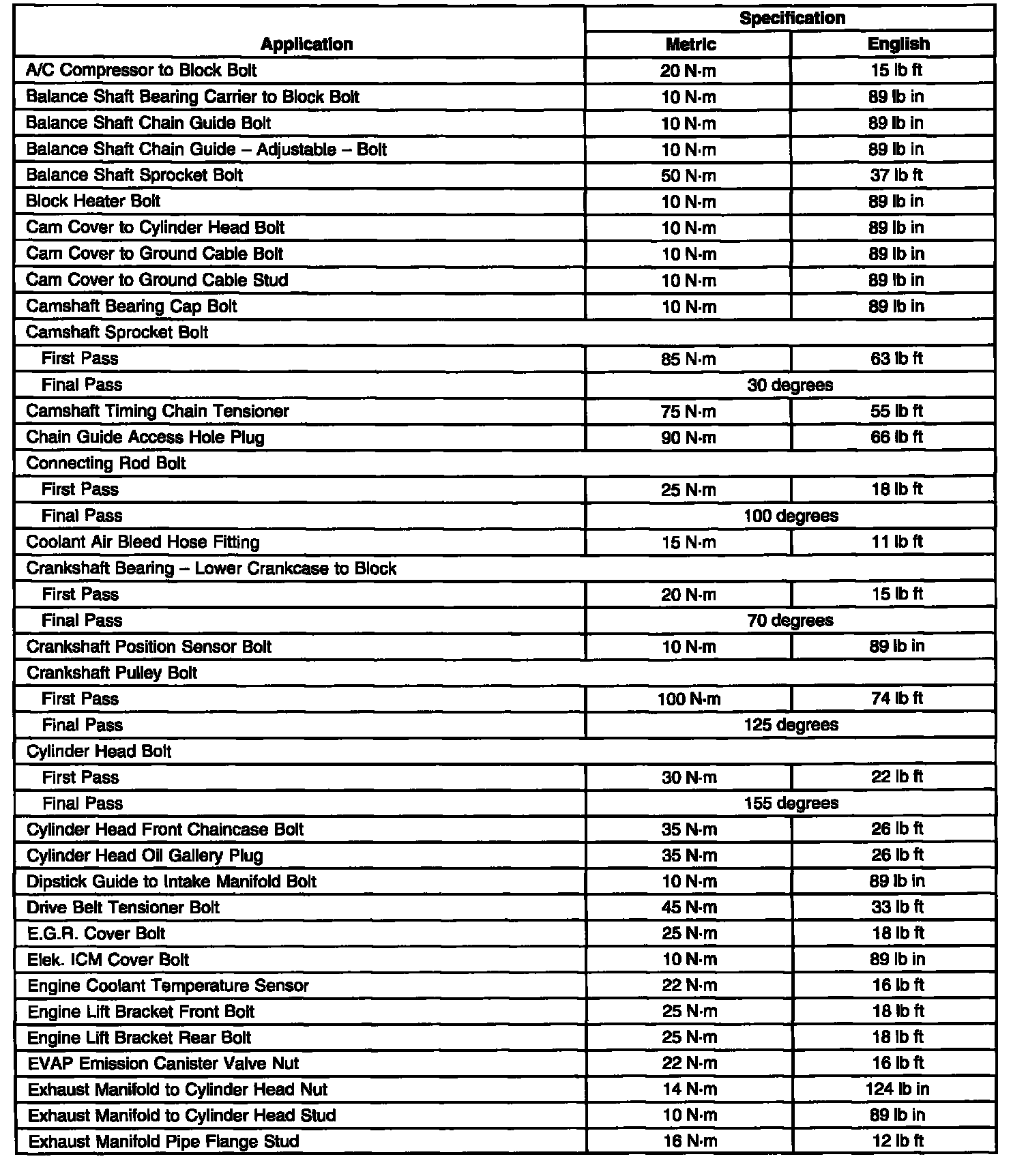

Torque Specifications, Part 2:



Torque Specifications, Part 2:
