Home >> Pontiac >> 2005 >> Grand AM L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transmission Control Systems

Transmission Control Systems

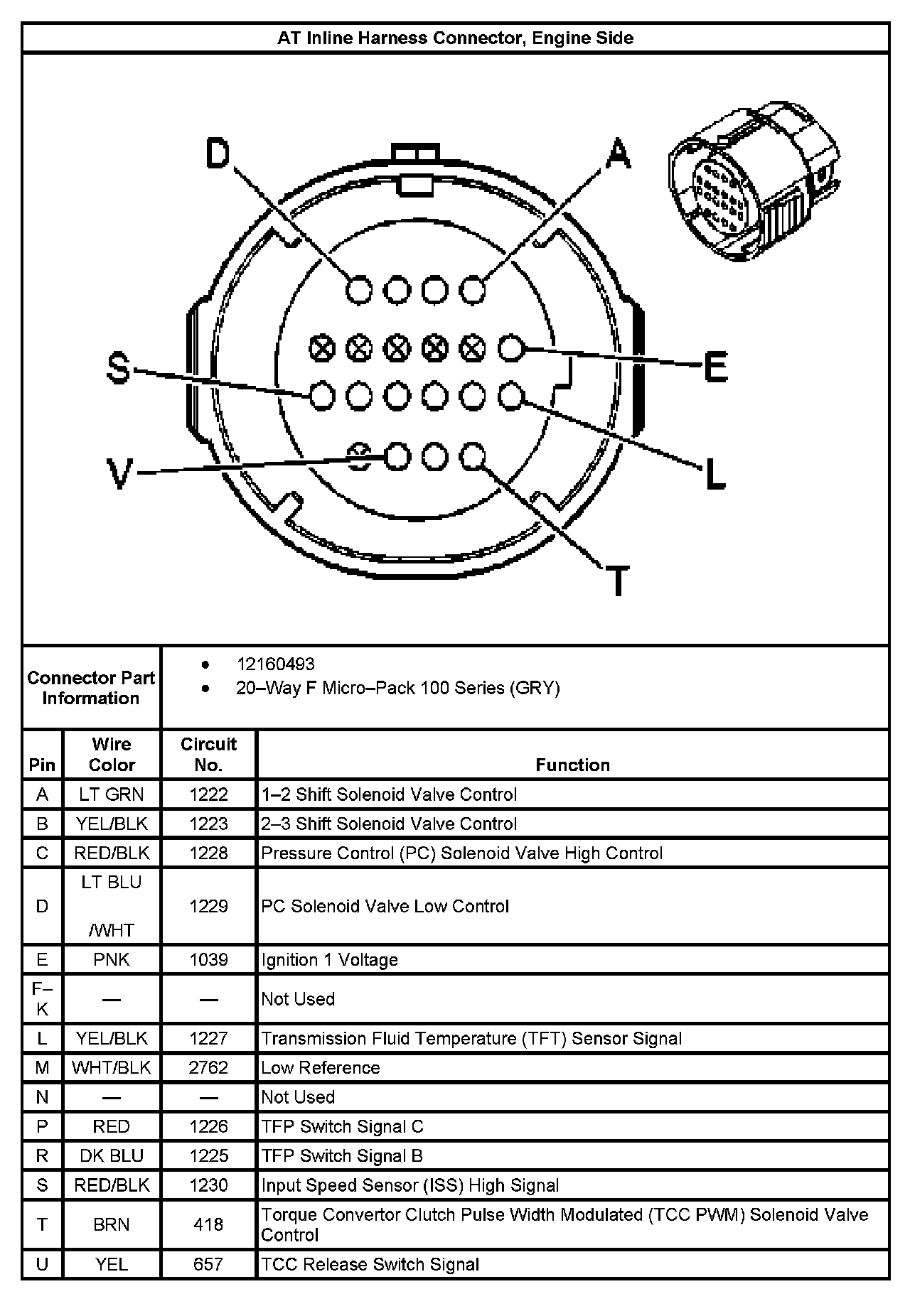

AT Inline Harness Connector, Engine Side:



AT Inline Harness Connector, Engine Side:

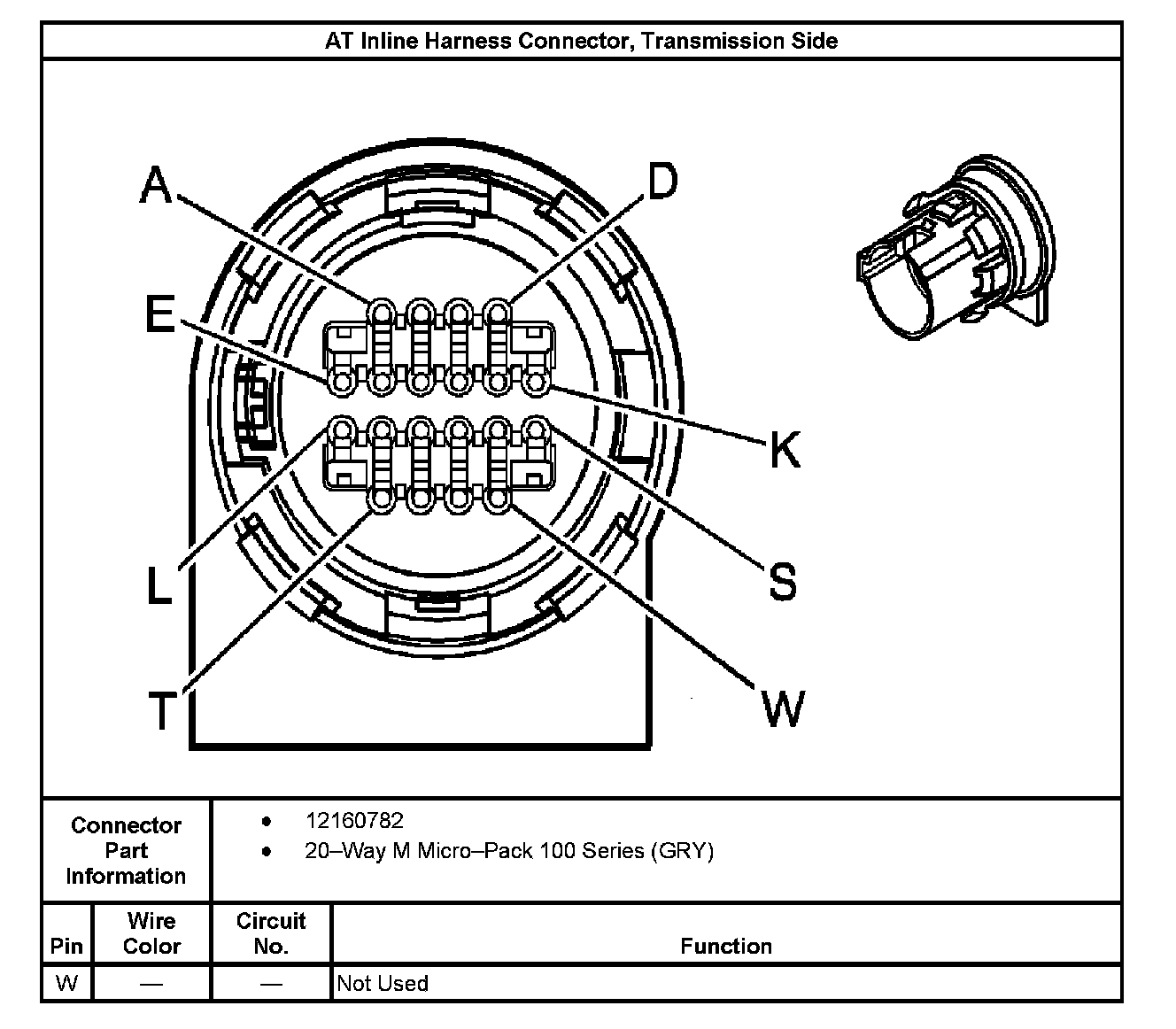

AT Inline Harness Connector, Transmission Side:

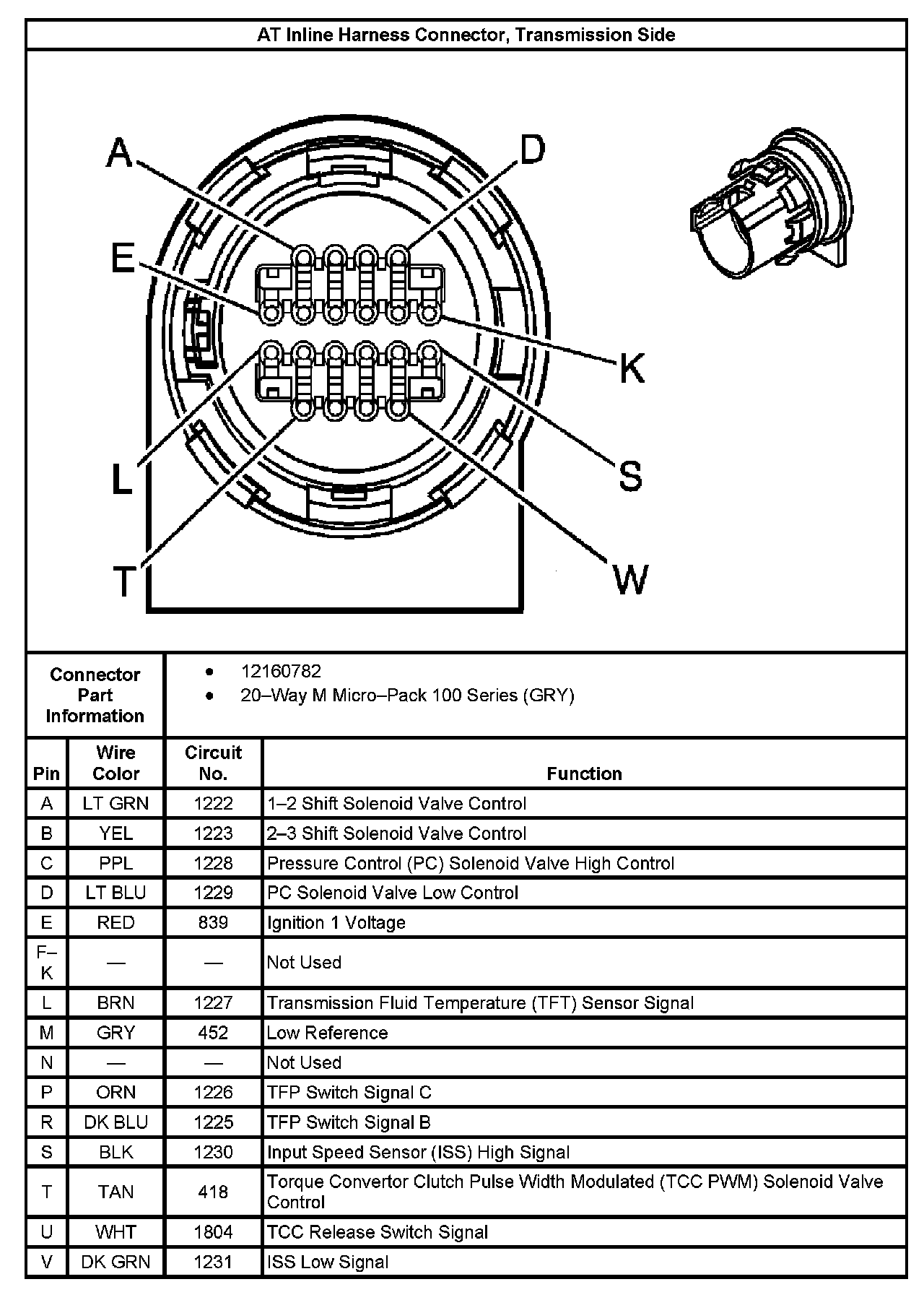

AT Inline Harness Connector, Transmission Side:
