Differential Assembly

Differential Carrier Assembly Disassembled Views

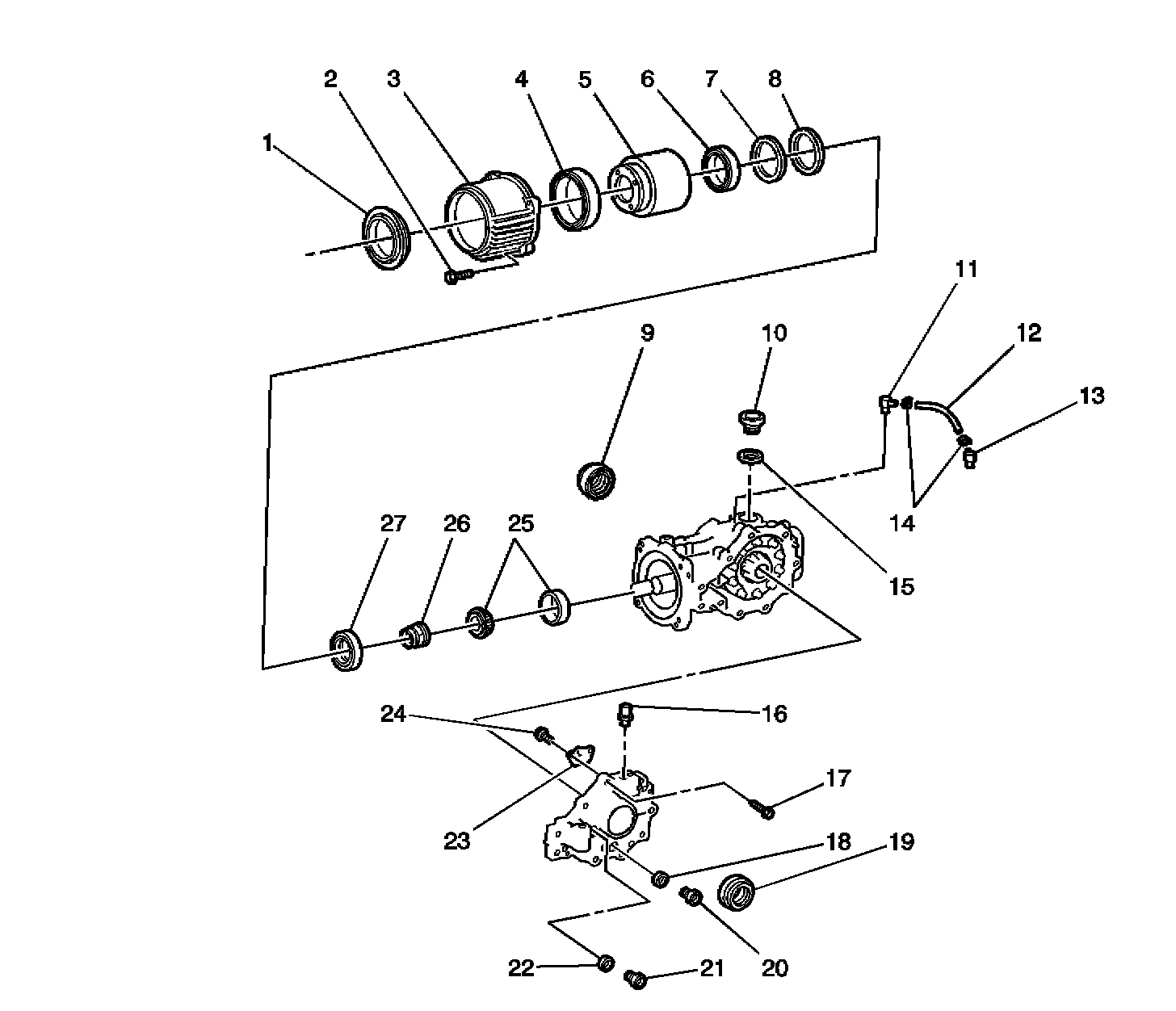

Rear Axle Disassembled View

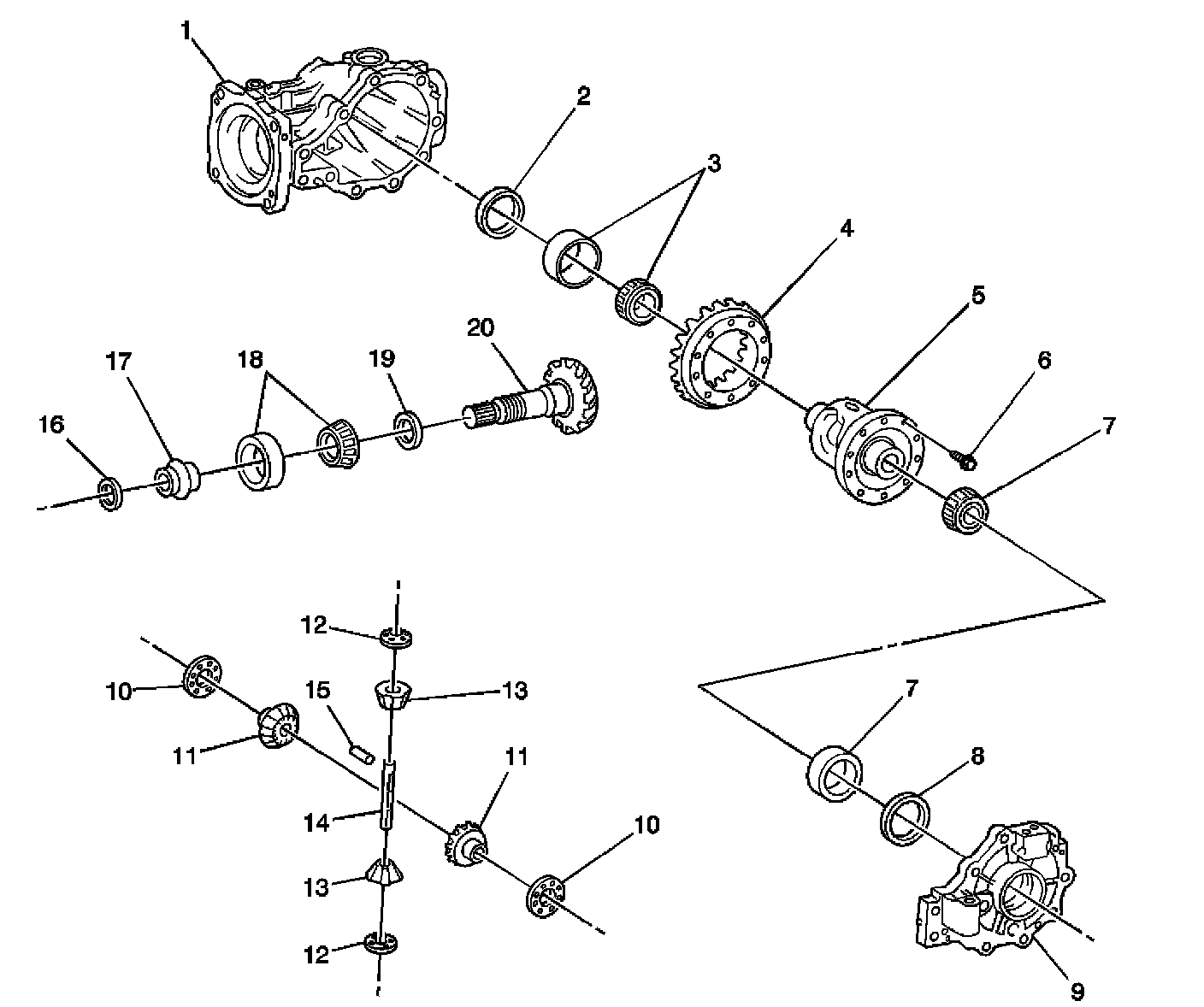

Rear Axle Internal Components

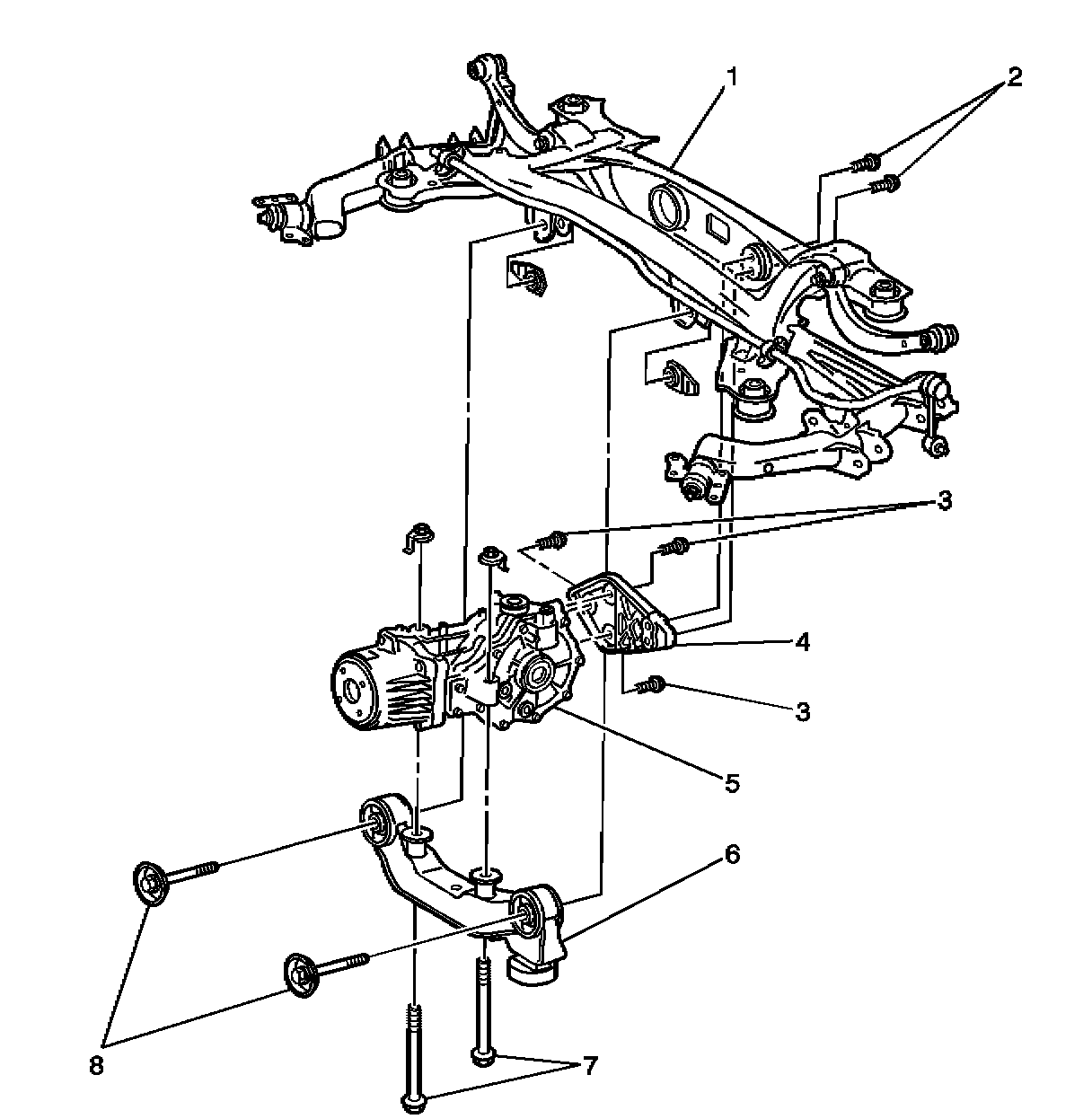

Rear Axle Mounting Components

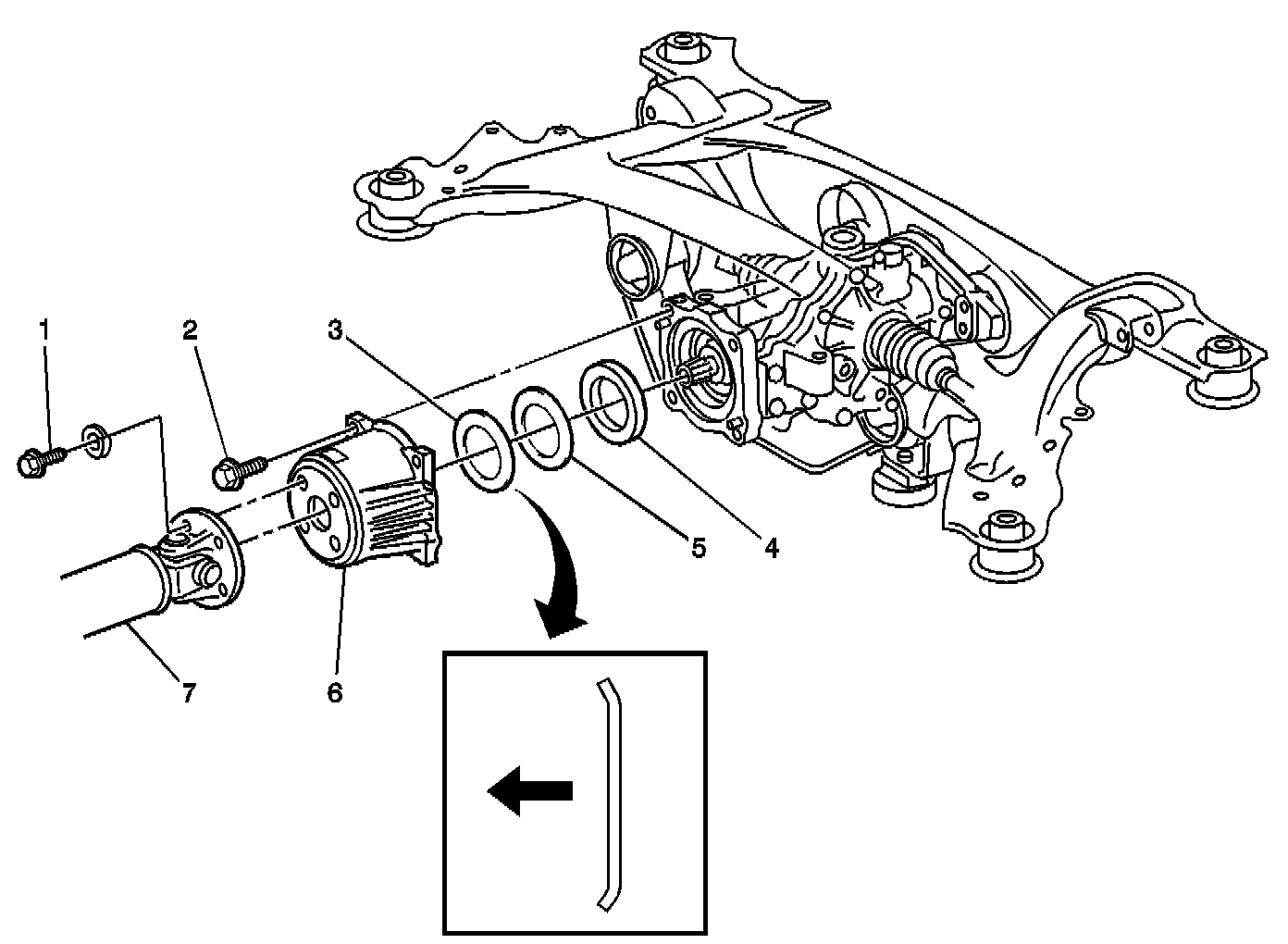

Rear Axle Carrier Coupling Cover
