Home >> Pontiac >> 2004 >> Vibe AWD L4-1.8L VIN 8 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

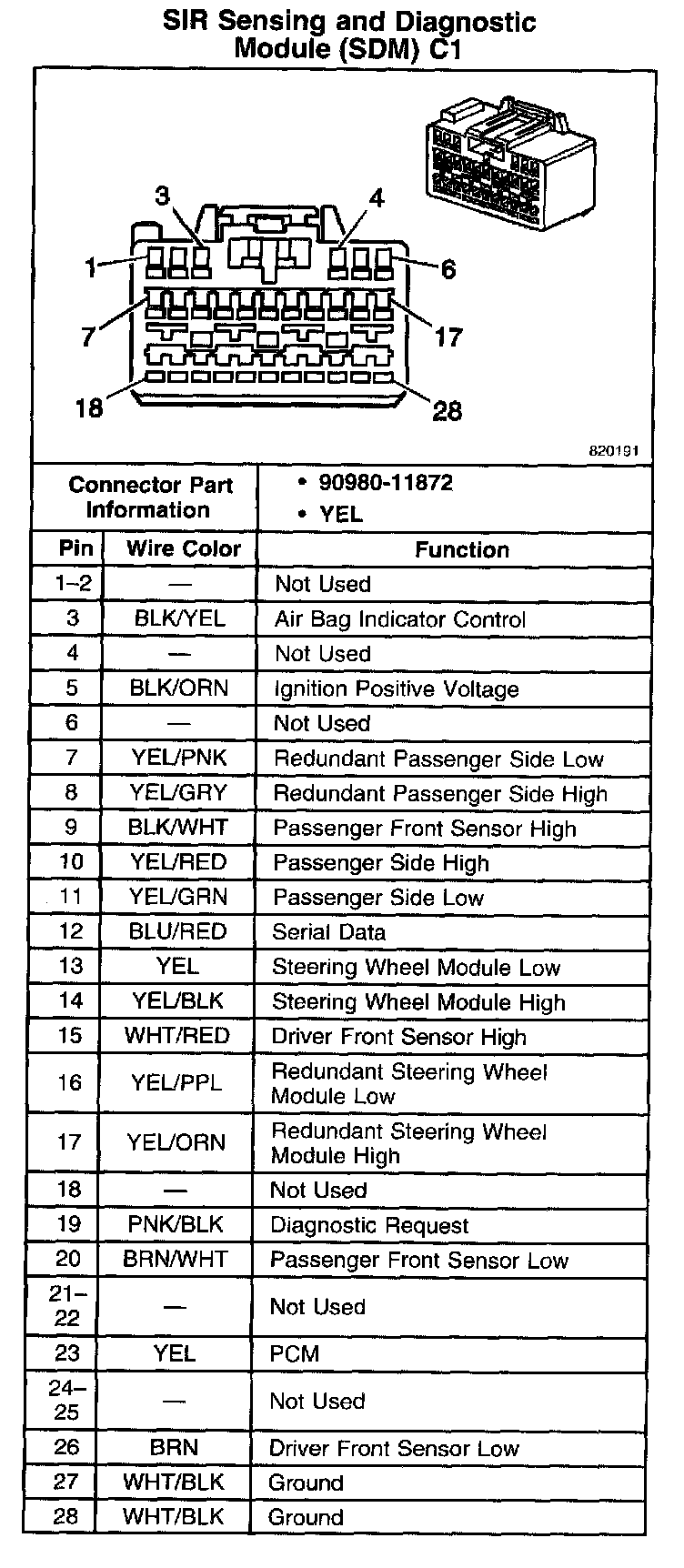

SIR Sensing And Diagnostic Module (SDM) C1:

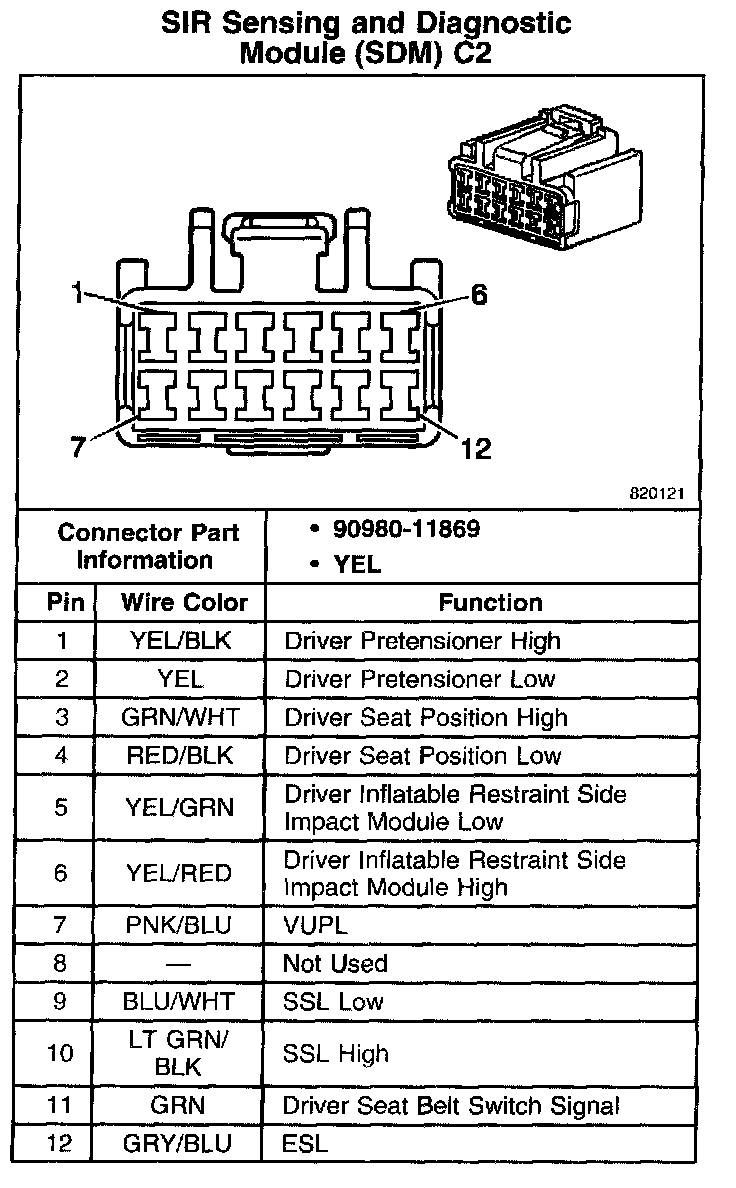

SIR Sensing And Diagnostic Module (SDM) C2:



SIR Sensing And Diagnostic Module (SDM) C3:
