Home >> Pontiac >> 2004 >> Grand Prix V6-3.8L SC VIN 4 >> Repair and Diagnosis >> Powertrain Management >> Locations >> Left Upper Front of Engine

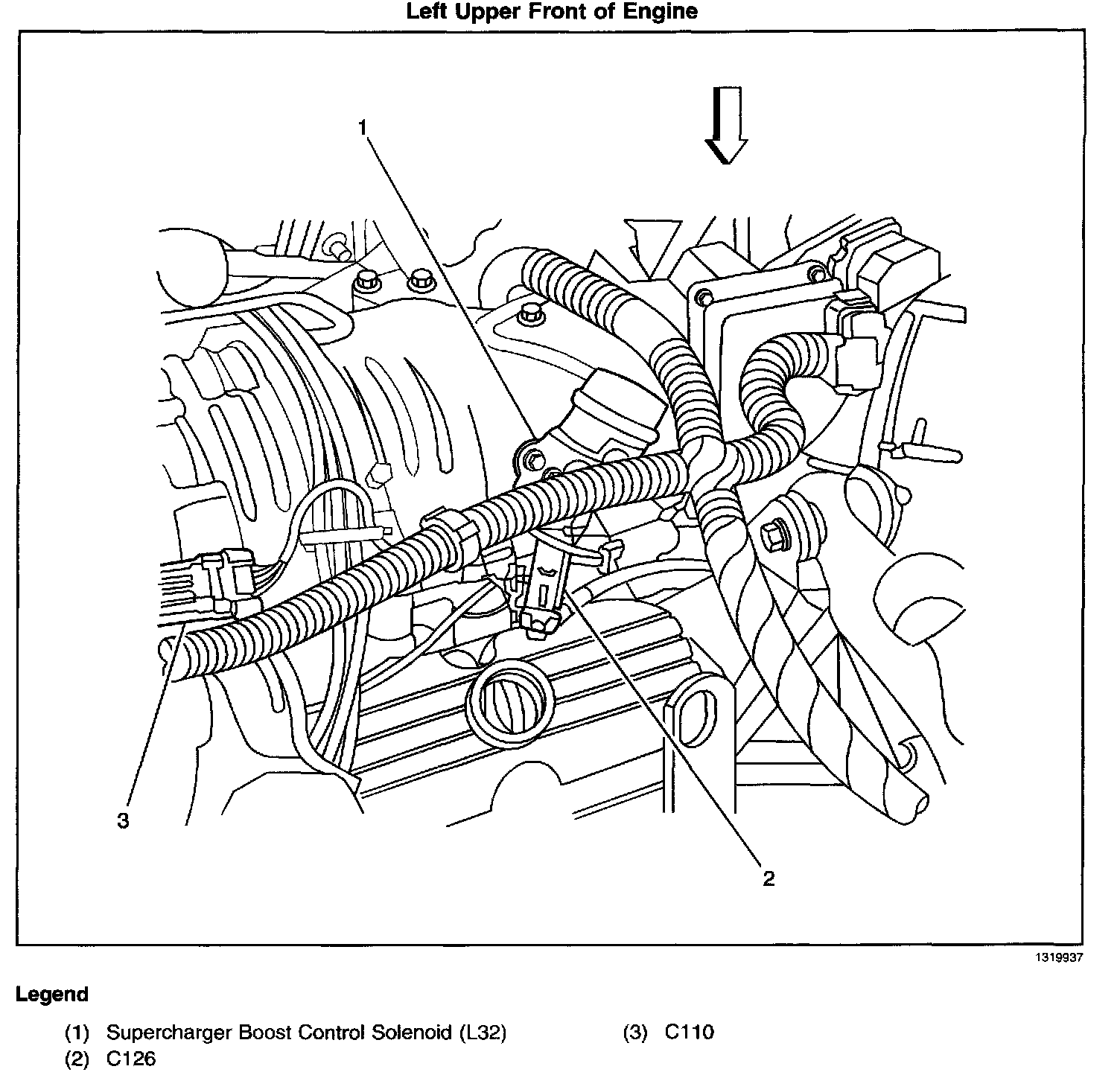

Left Upper Front of Engine

Left Upper Front Of Engine:
