Home >> Pontiac >> 2004 >> Grand Prix V6-3.8L SC VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Amplifier, Sound System

Amplifier, Sound System

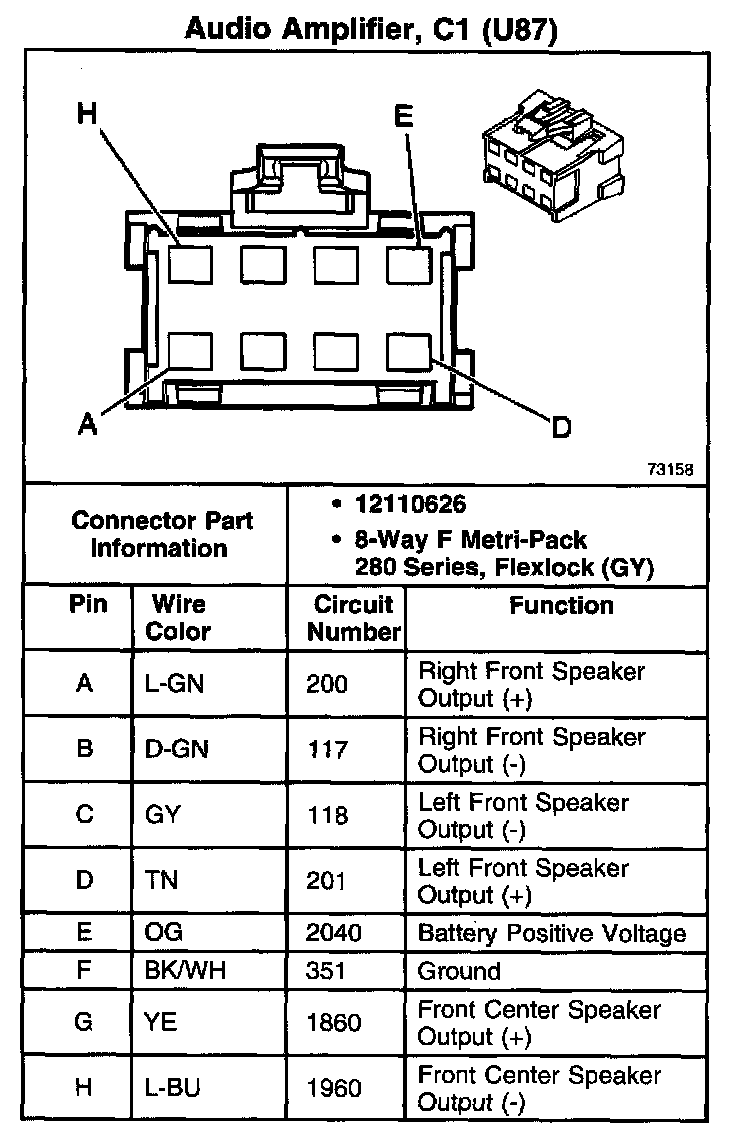

Audio Amplifier, C1 With RPO Code U87:

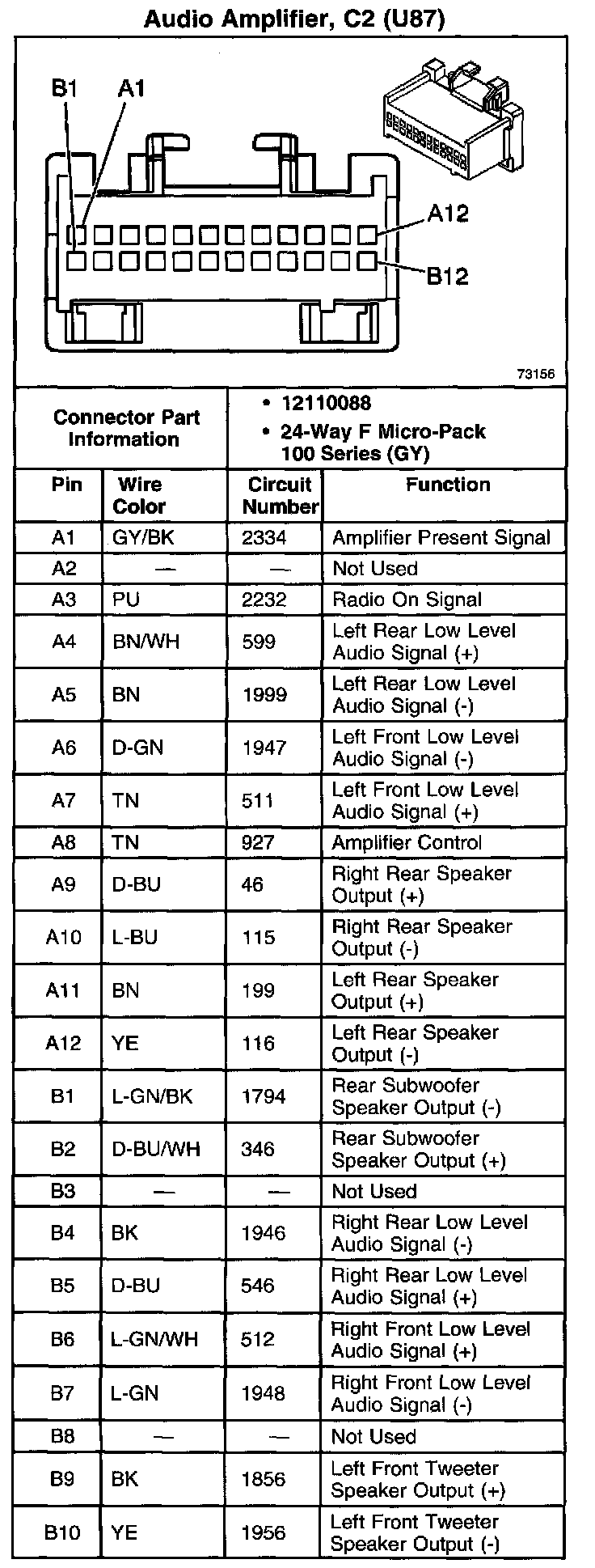

Audio Amplifier, C2 With RPO Code U87 Part 1:



Audio Amplifier, C2 With RPO Code U87 Part 2:
