Home >> Pontiac >> 2004 >> GTO V8-5.7L VIN G >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Body and Frame >> System Specifications >> Fastener Tightening Specifications

Fastener Tightening Specifications



Body Front End Fastener Tightening Specifications:

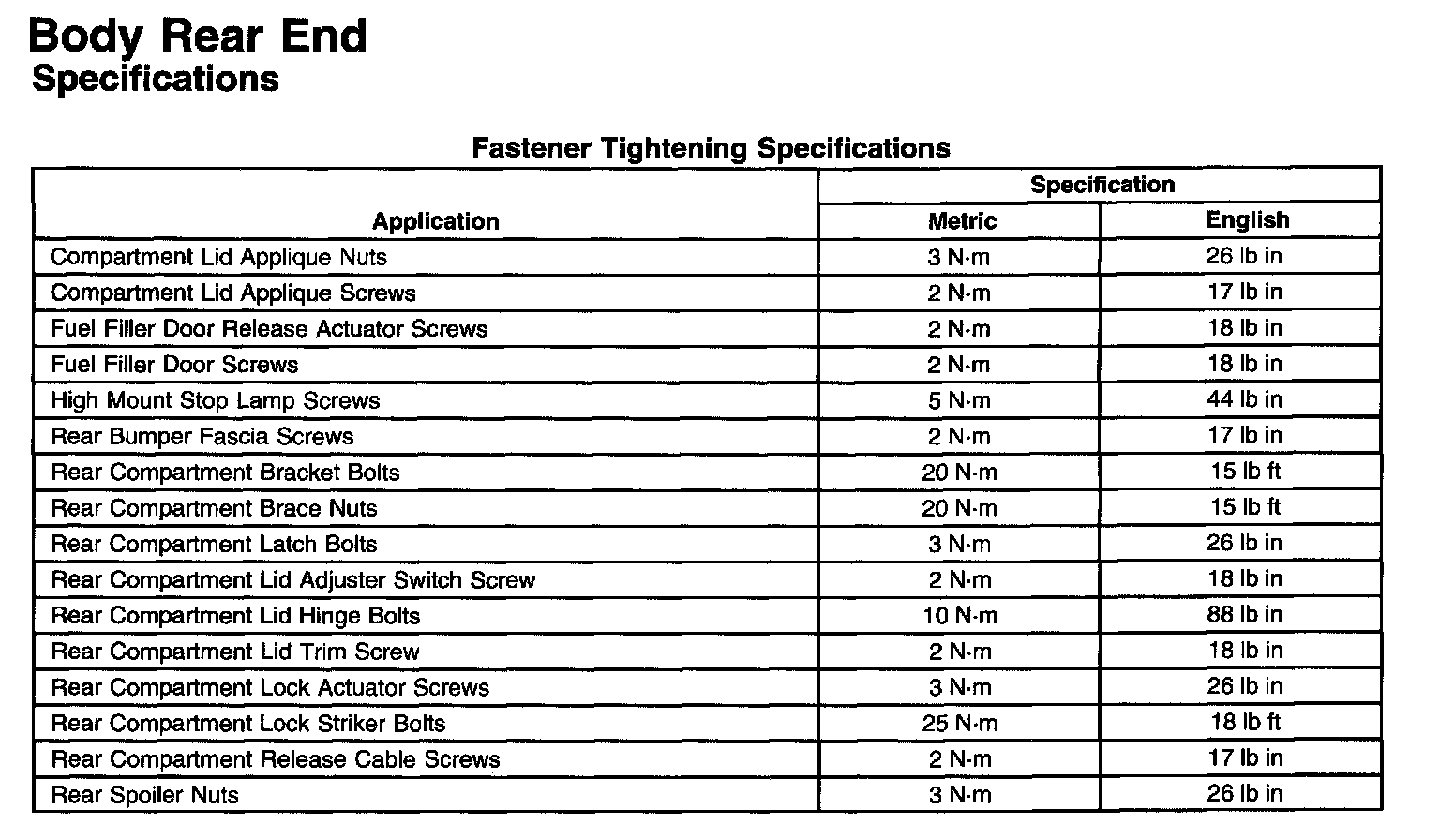

Body Rear End Fastener Tightening Specifications:

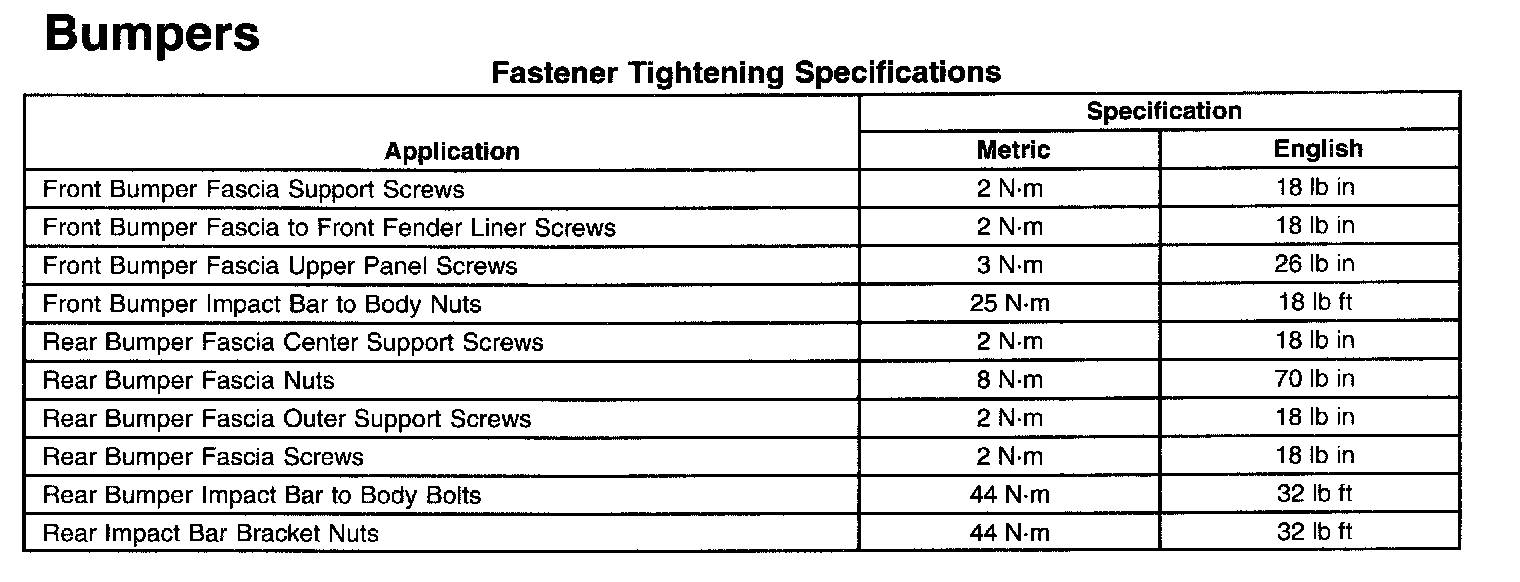

Bumper Fastener Tightening Specifications:



Doors Fastener Tightening Specifications:

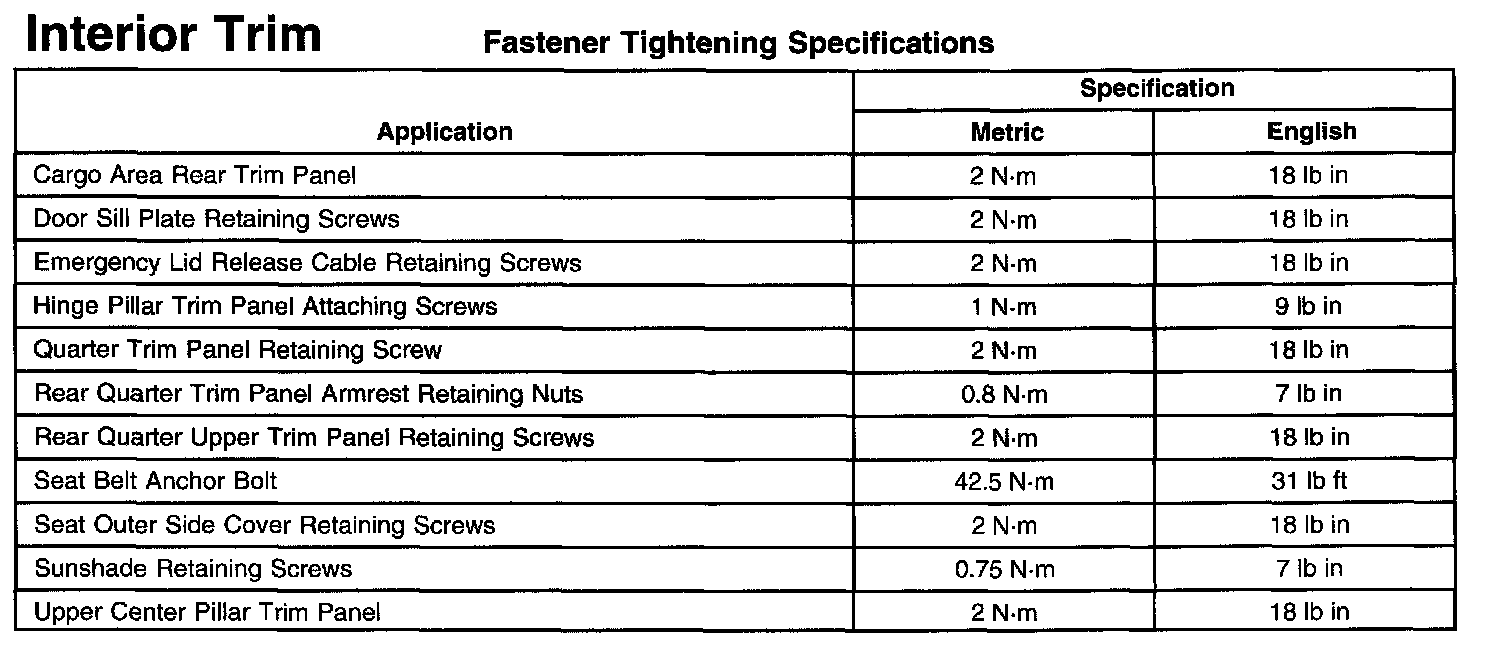

Interior Trim Fastener Tightening Specifications:
