Ground Locations
Ground Locations
Harness Routing Views (Engine Sensors):

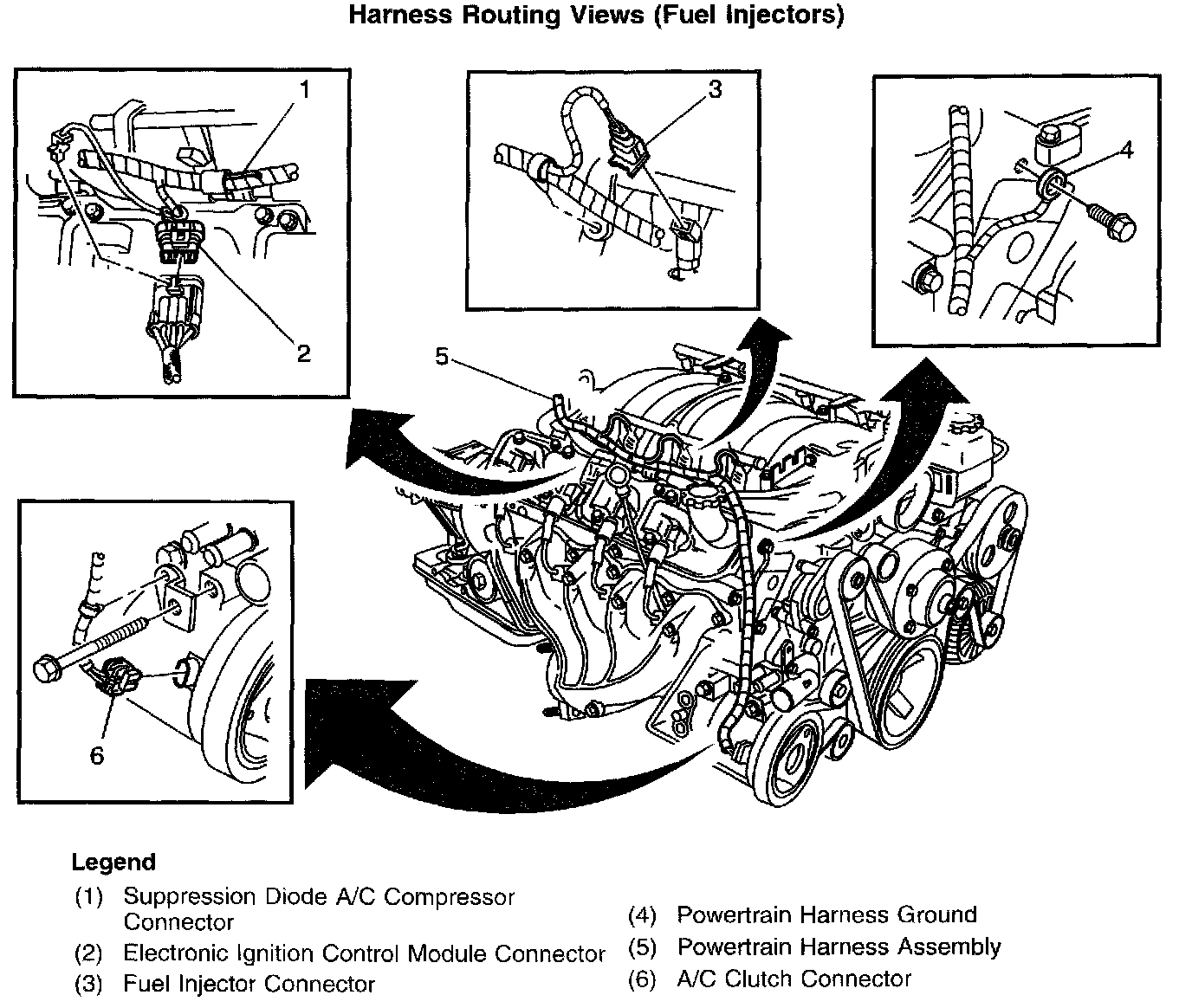

Harness Routing Views (Fuel Injectors):
