Connector Locations

Master Electrical Connector List (C101 - C201):

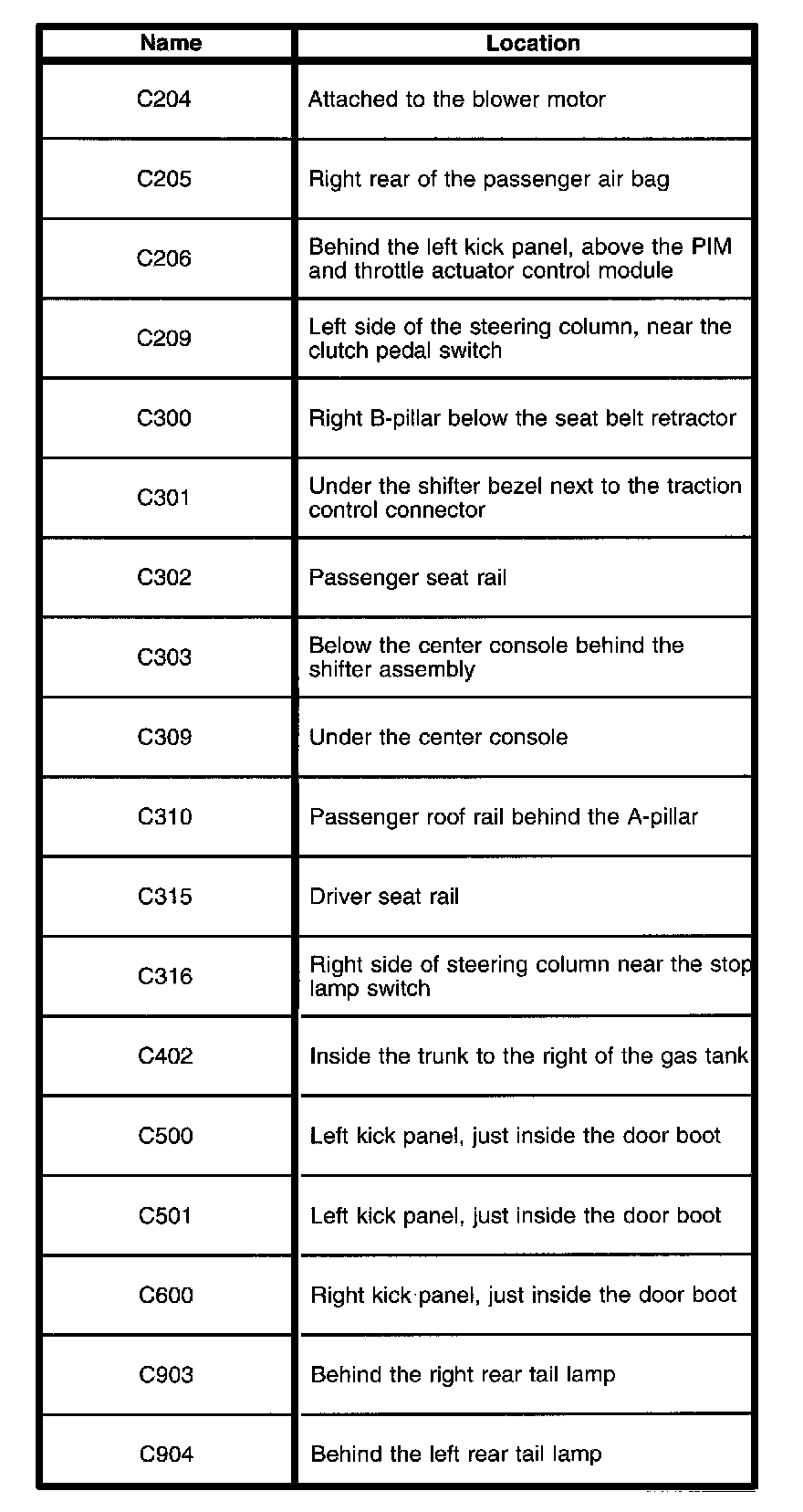

Master Electrical Connector List (C204 - C904):
