Home >> Pontiac >> 2004 >> Bonneville V8-4.6L VIN Y >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column

Steering Column

Steering Column Disassembled View (Column Shift)








Tilt Steering Column, Column Shift

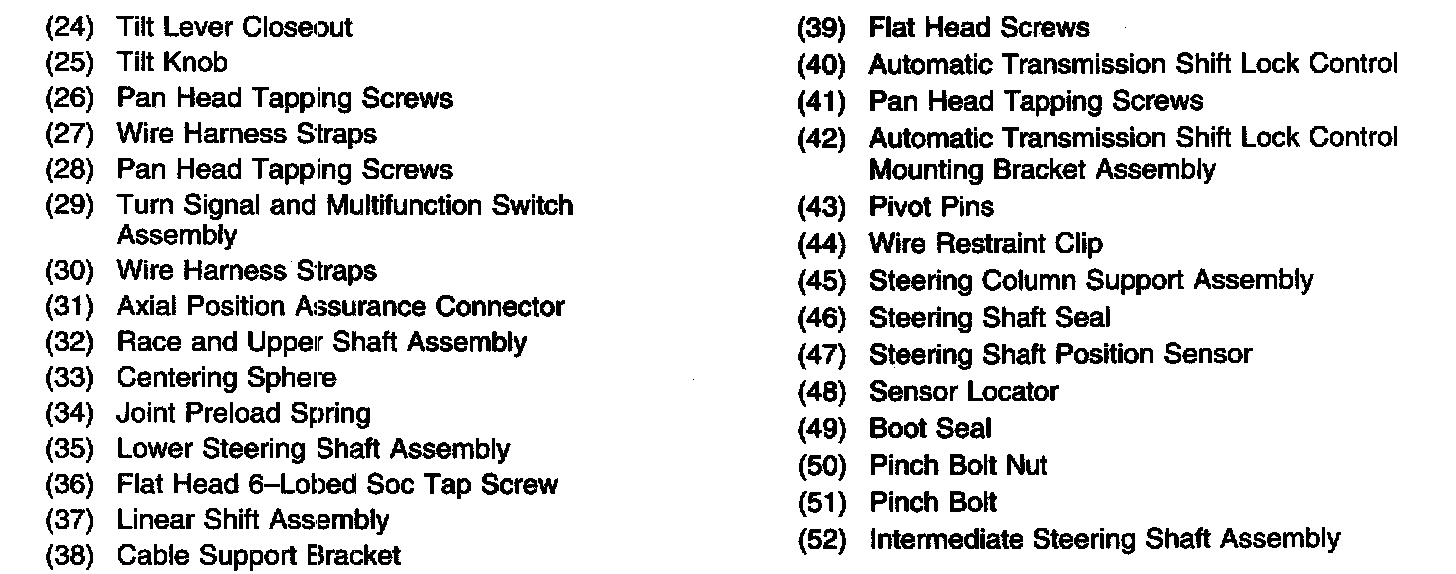

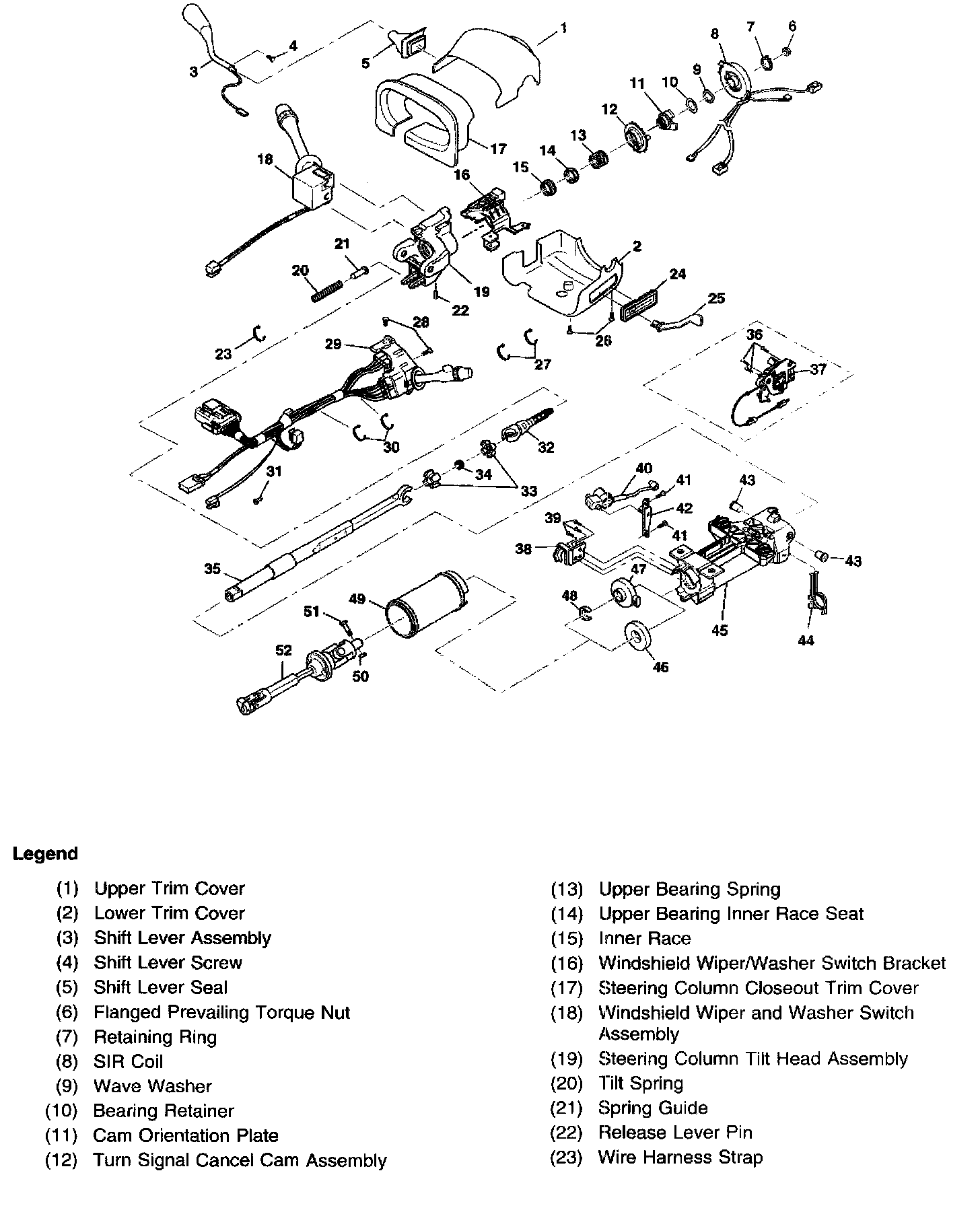

Steering Column Disassembled View (Floor Shift)








Tilt Steering Column, Floor Shift
