Timing Cover

Install the timing chain cover. Use the following fasteners in order to secure the cover:
Nineteen bolts

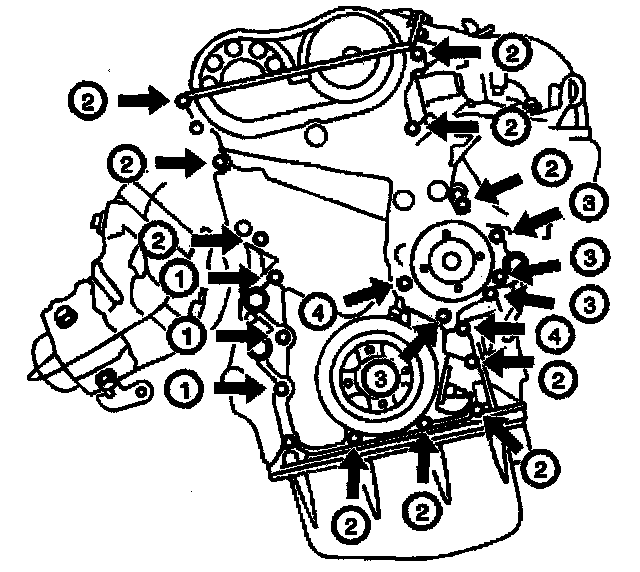

Tighten the timing chain cover bolts (1) 21 Nm (15 lb ft).
Tighten the timing chain cover bolts (2) 11 Nm (8 lb ft).
Tighten the timing chain cover bolts (3) 9 Nm (80 lb in).
Tighten the timing chain cover bolts (4) 9 Nm (80 lb in).

Timing Chain Cover Stud Nut 9.3 Nm (80 lb in)
