Home >> Pontiac >> 2003 >> Vibe L4-1.8L VIN L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Alignment

Alignment

Trim Height Specifications:



Suspension Fastener Tightening Specifications:

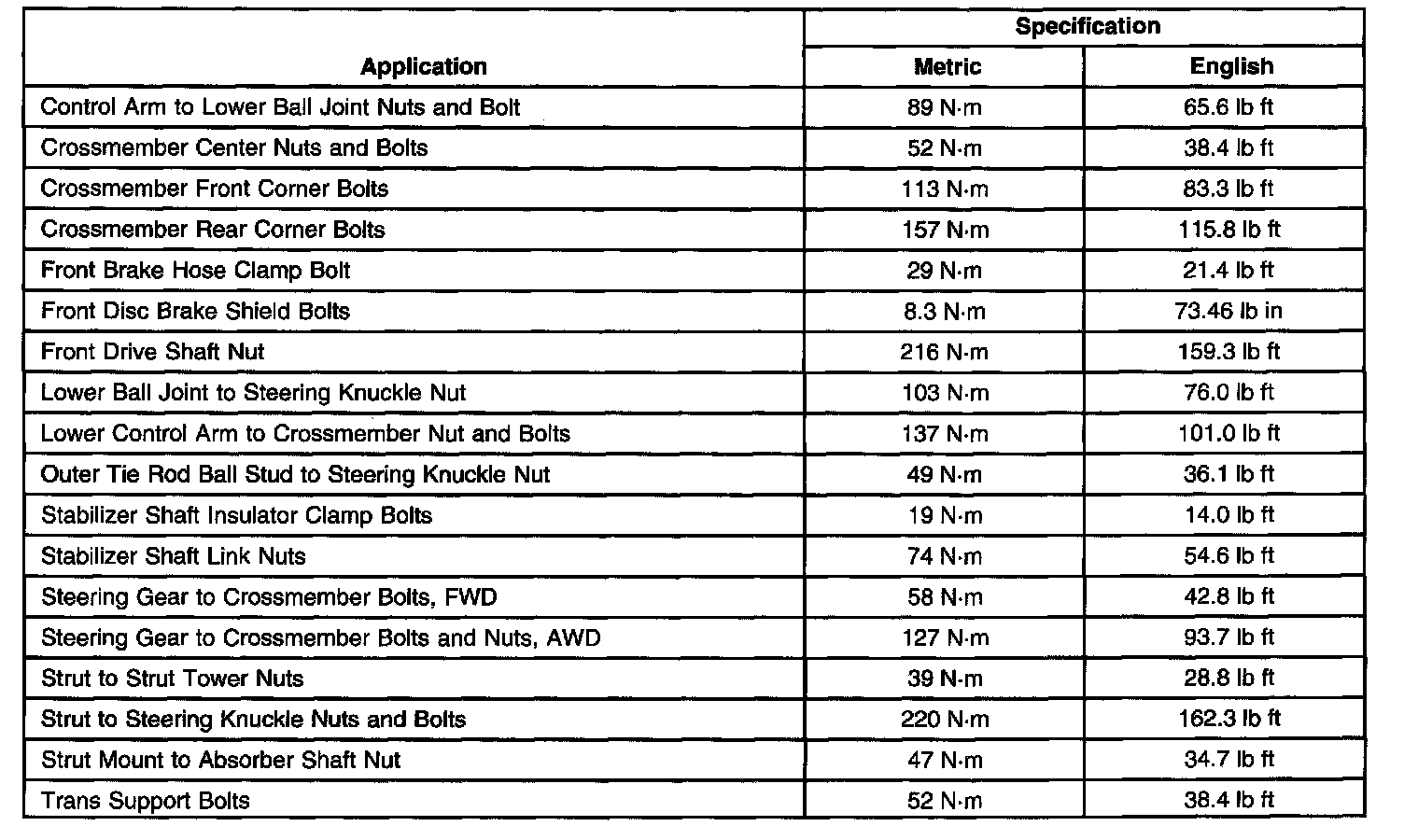

Front Suspension:

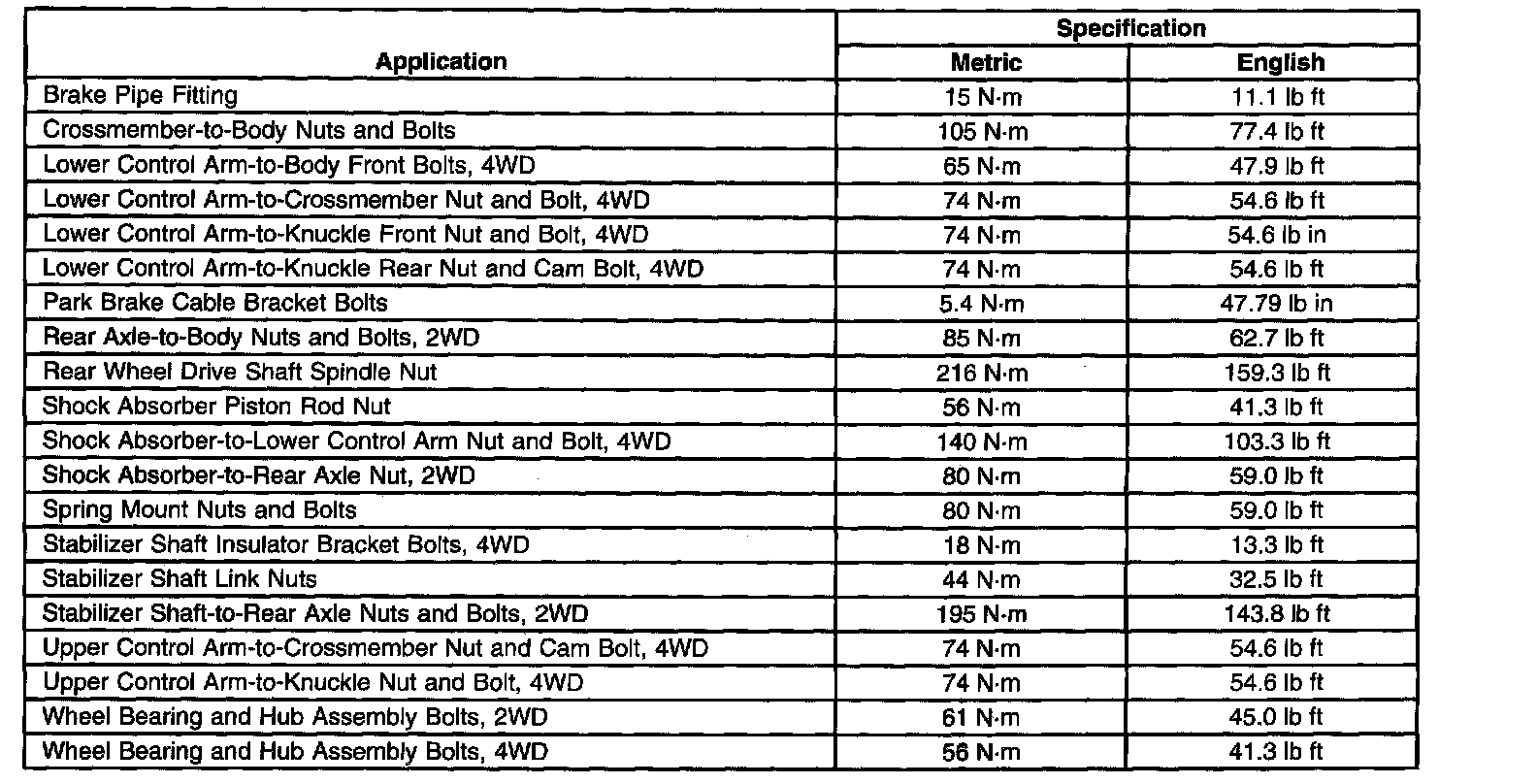

Rear Suspension:
