Power Steering Pump

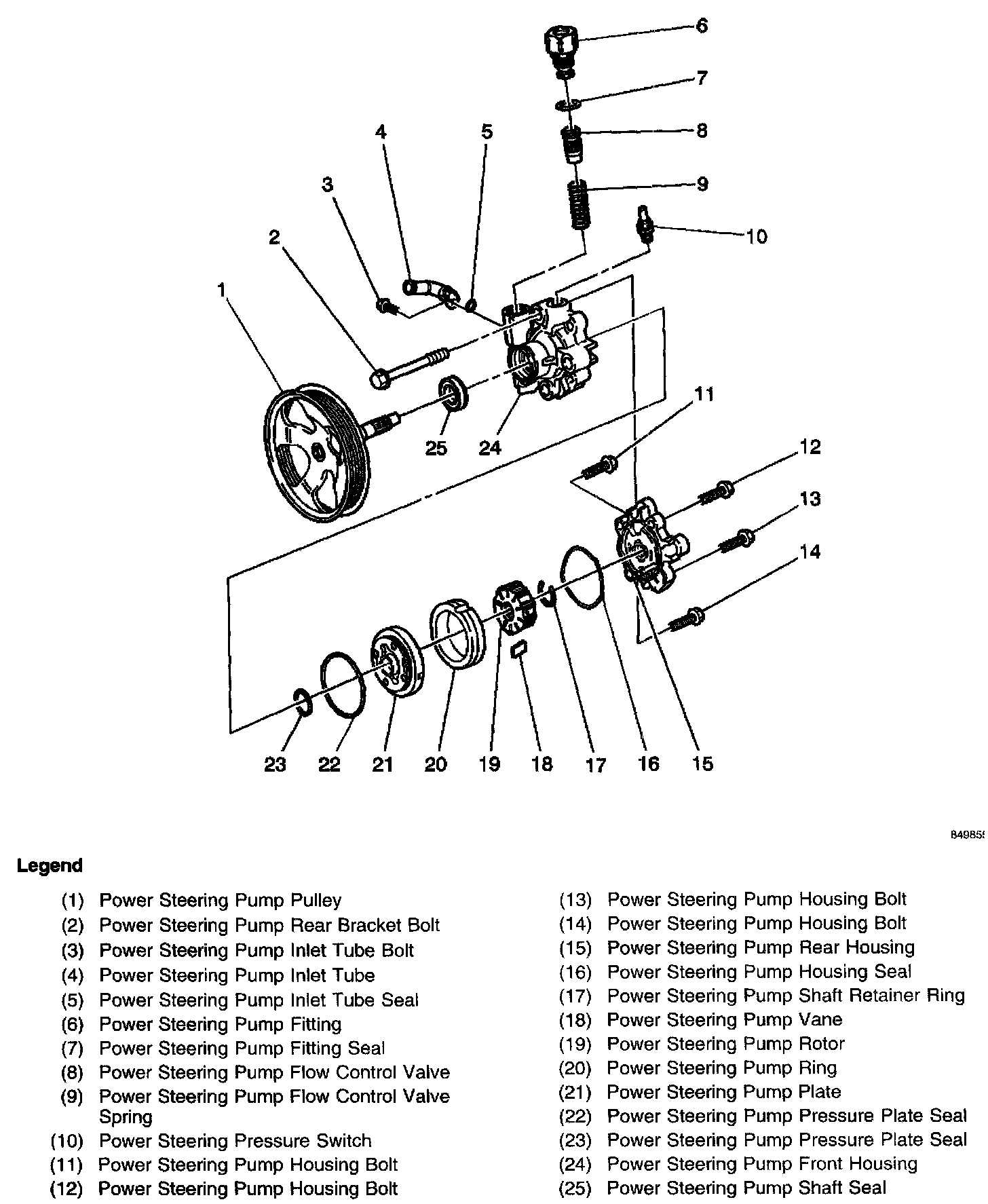

Power Steering Pump Disassembled View:

Information Sensors/Input Devices:

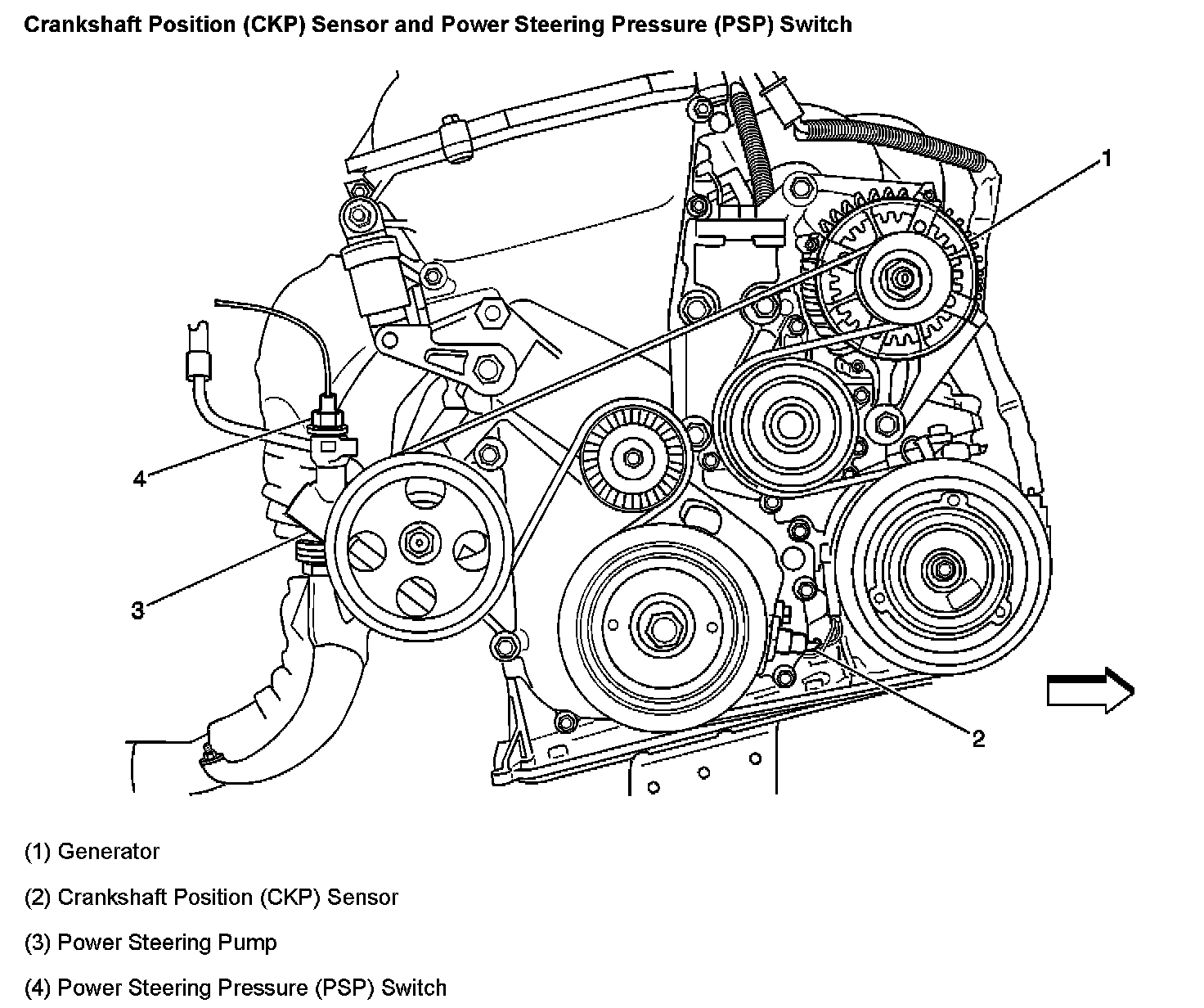

Crankshaft Position (CKP) Sensor And Power Steering Pressure (PSP) Switch:

Engine Compartment Connector Locations:
