Vibe L4-1.8L VIN L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Differential Assembly
>>
Rear Axle Mounting Components

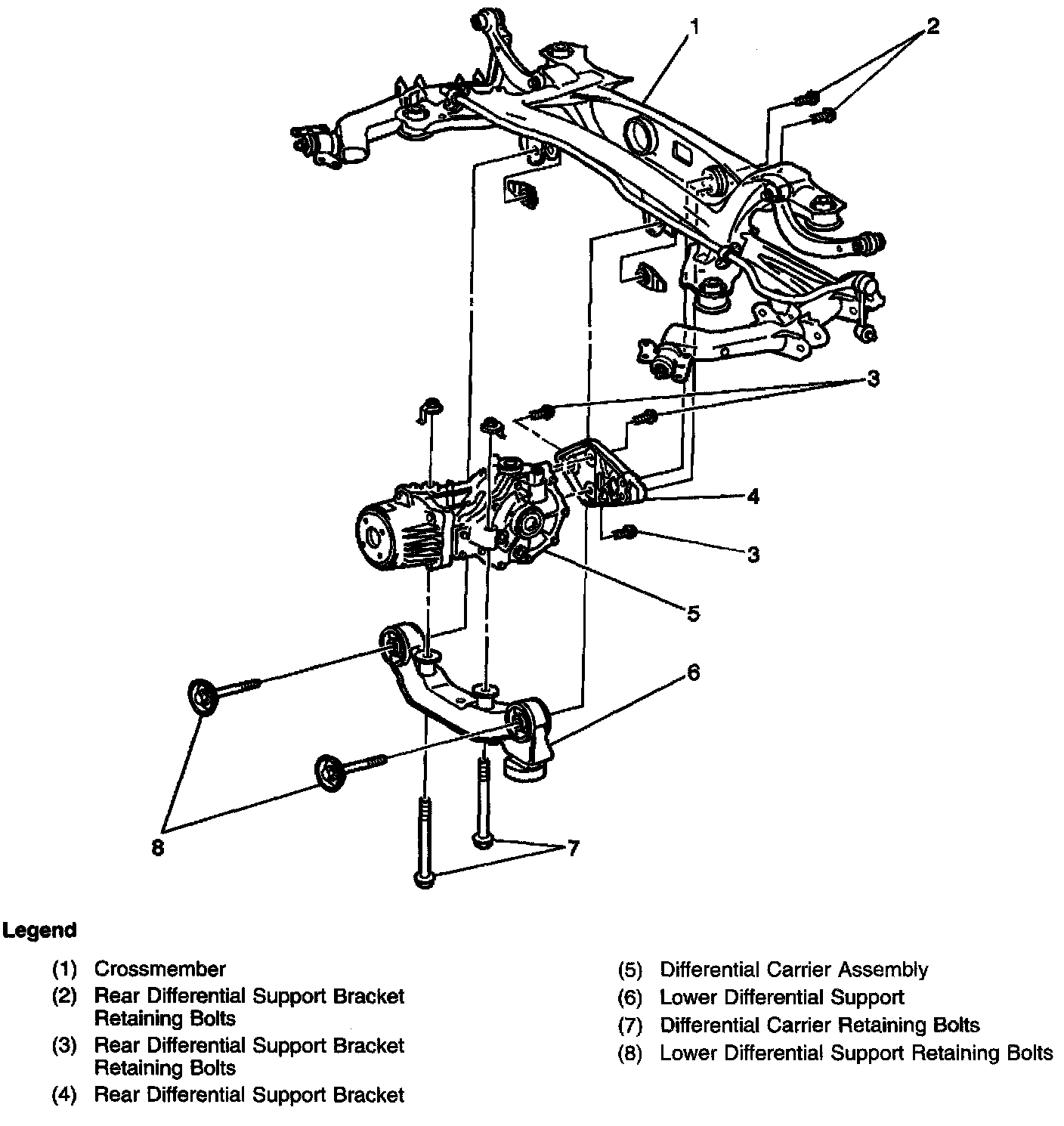

Rear Axle Mounting Components
Rear Axle Mounting Components:
