Home >> Pontiac >> 2003 >> Vibe L4-1.8L VIN 8 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Diagrams >> MU4

MU4

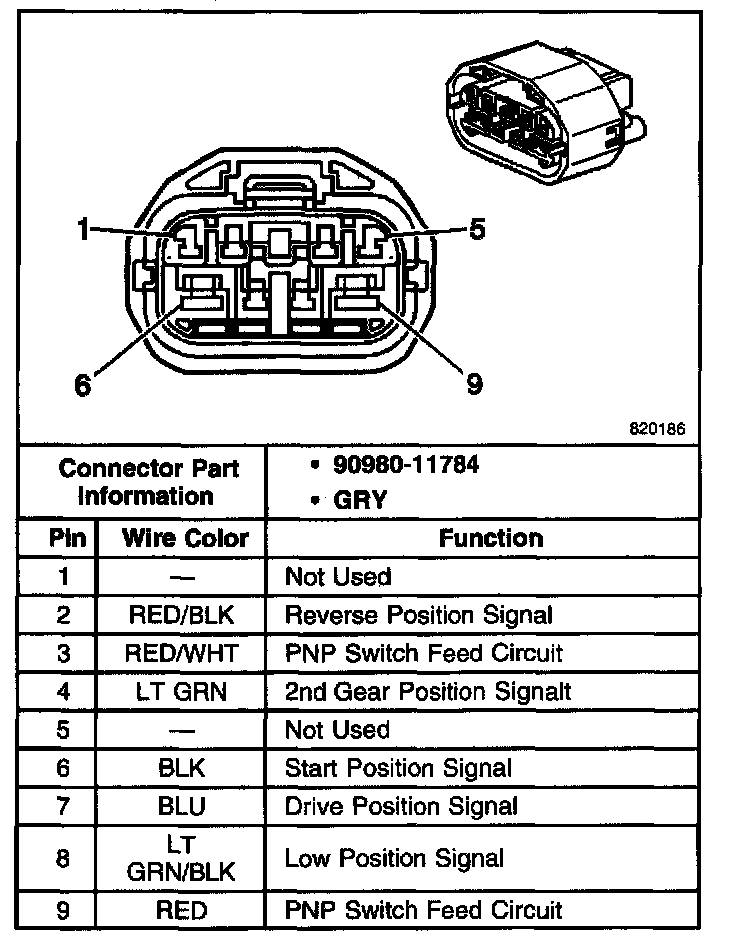

Park/Neutral Position Switch:
