Home >> Pontiac >> 2003 >> Grand Prix V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Neutral Safety Switch >> Locations

Neutral Safety Switch: Locations

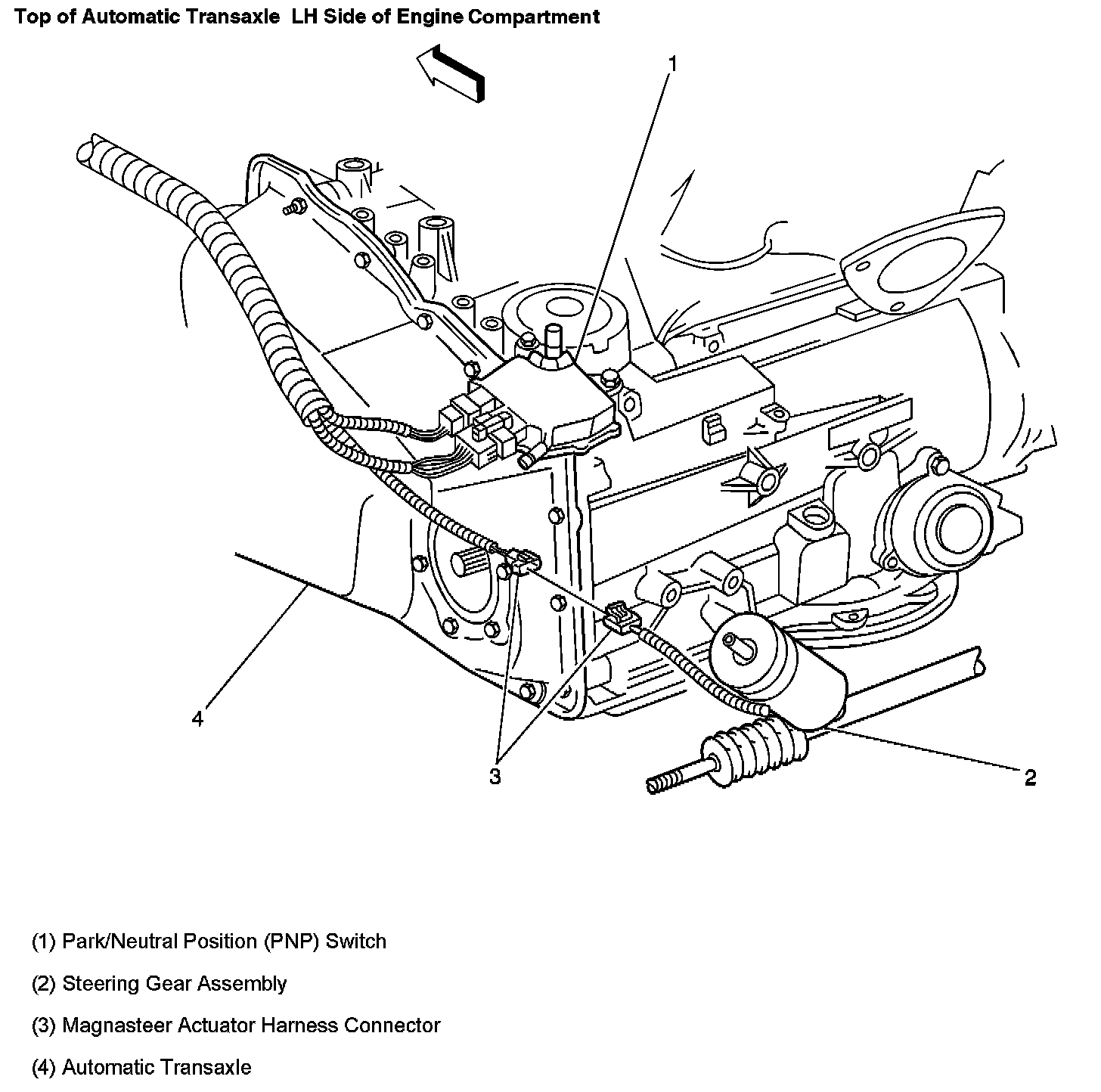

Top Of Automatic Transaxle - LH Side Of Engine Compartment:
