Scan Tool Does Not Communicate With UART Data Line
Scan Tool Does Not Communicate With UART Data Line

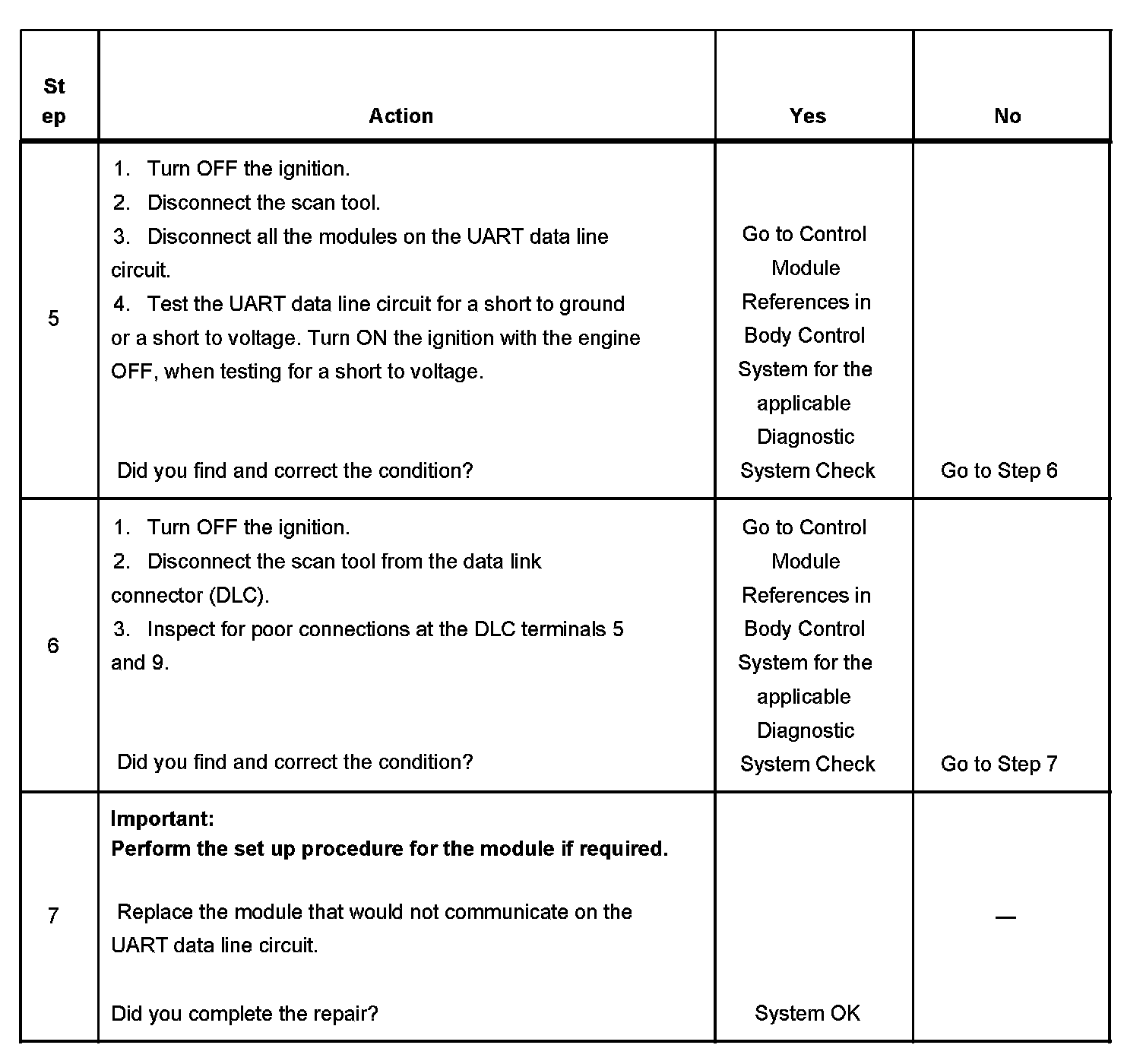

Steps 5-7:
