Grand Prix V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Control Valve Body Assembly
Control Valve Body Assembly

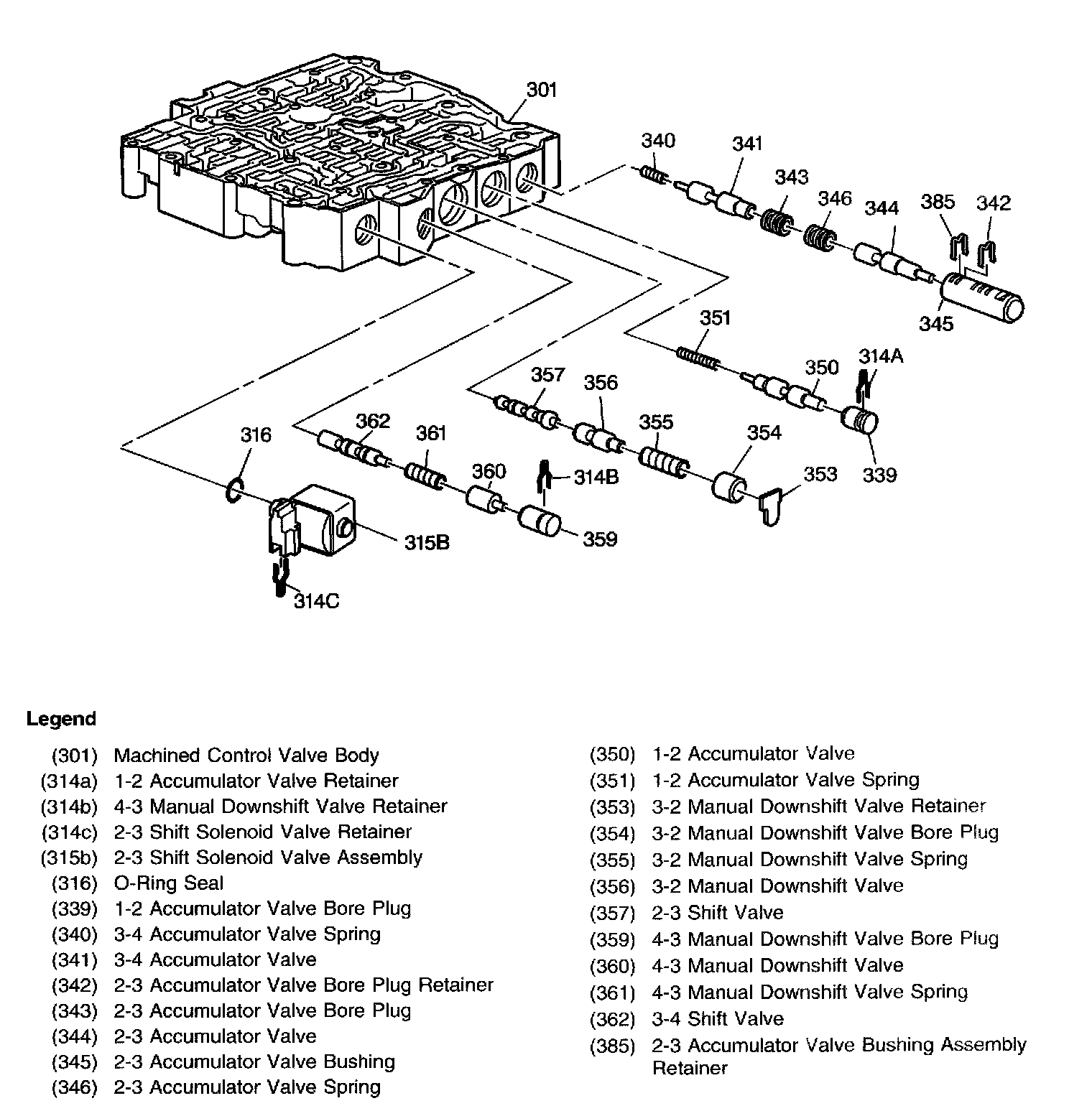

Control Valve Body Assembly Part 1 of 2:

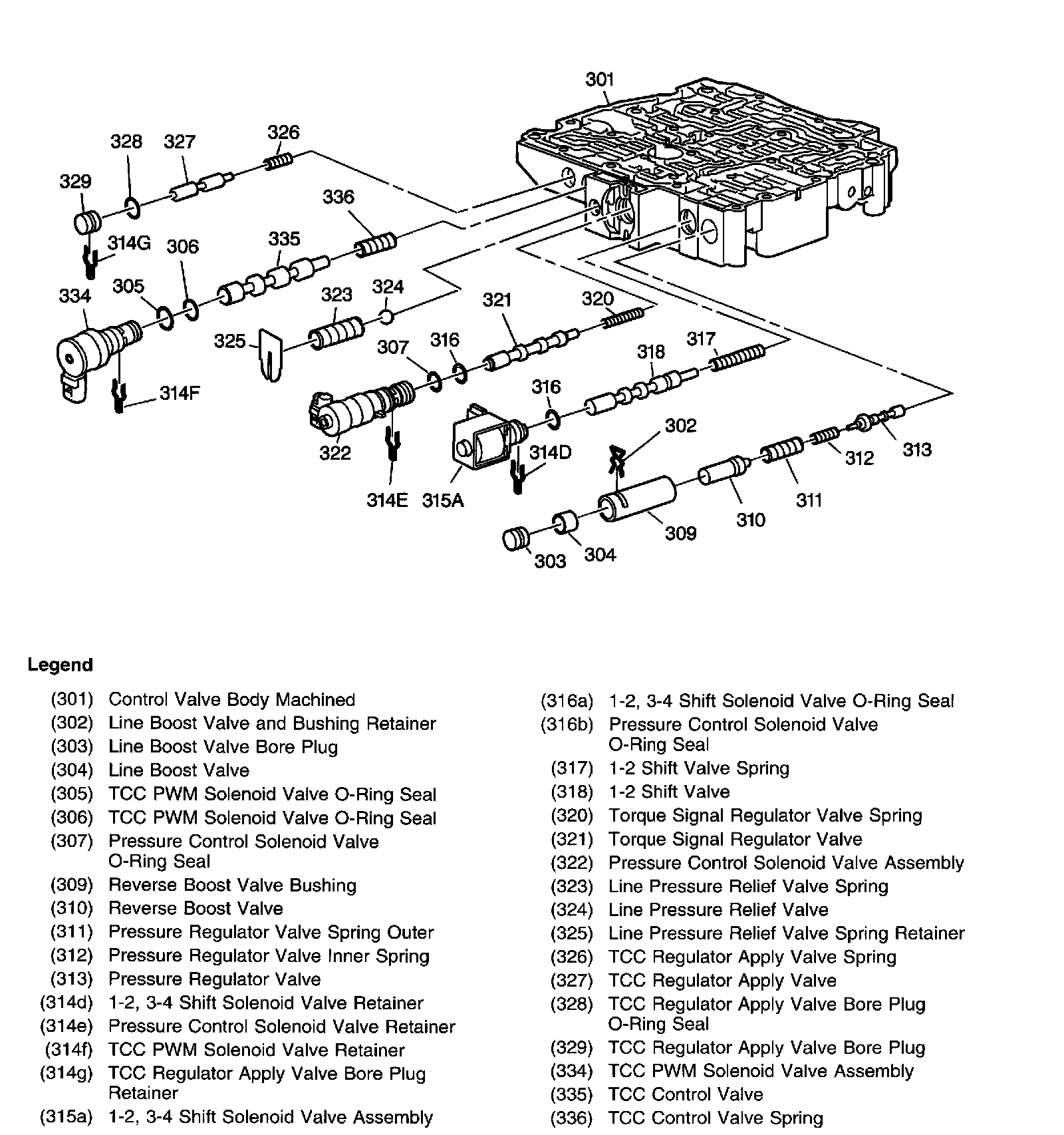

Control Valve Body Assembly Part 2 of 2:
