Home >> Pontiac >> 2003 >> Bonneville V6-3.8L VIN K >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Vehicle Speed Sensor >> Locations

Vehicle Speed Sensor: Locations

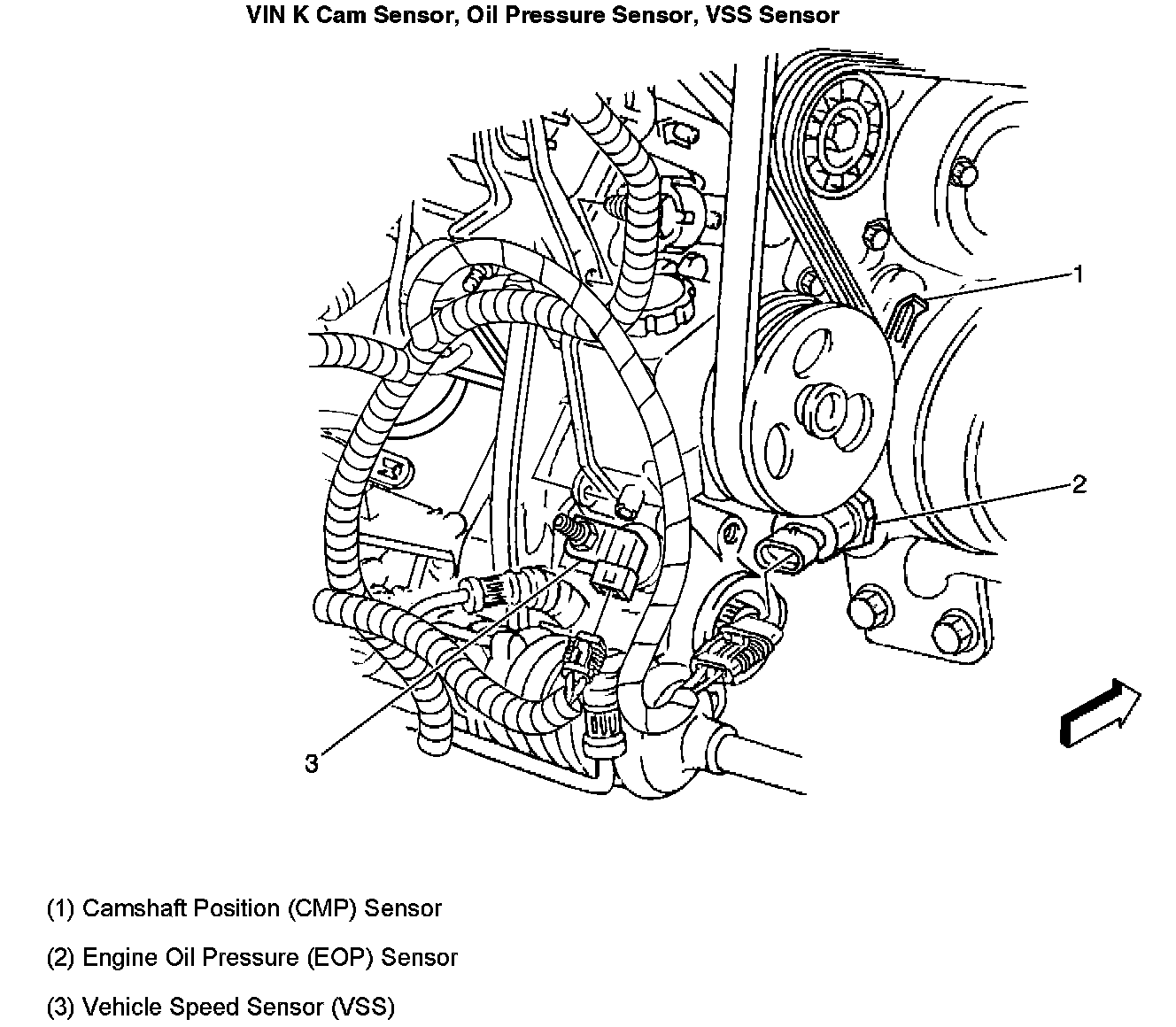

Cam Sensor, Oil Pressure Sensor, VSS Sensor:
