Home >> Pontiac >> 2003 >> Bonneville V6-3.8L VIN K >> Repair and Diagnosis >> Cruise Control >> Cruise Control Module >> Locations

Cruise Control Module: Locations

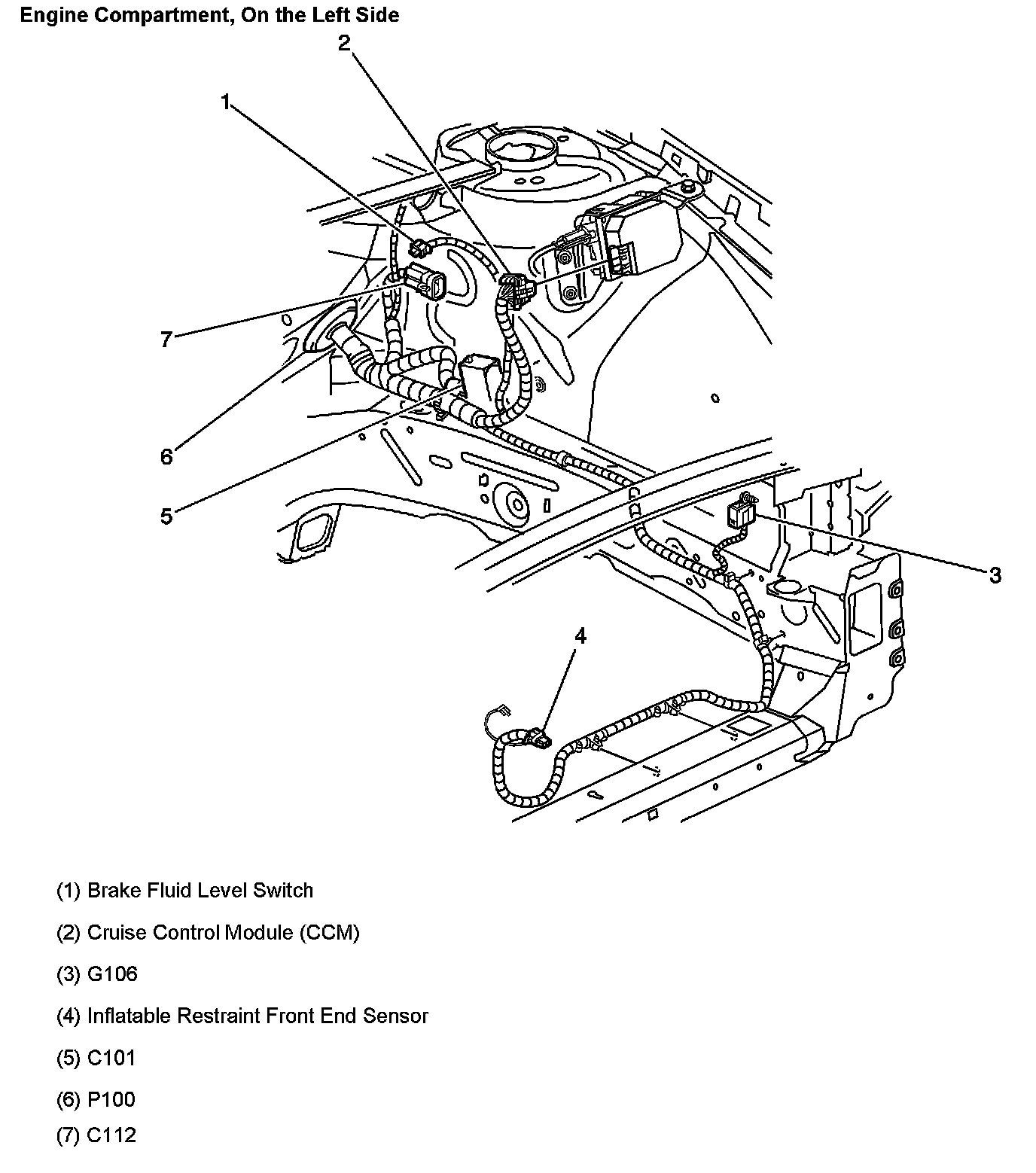

Engine Compartment, On The Left Side:

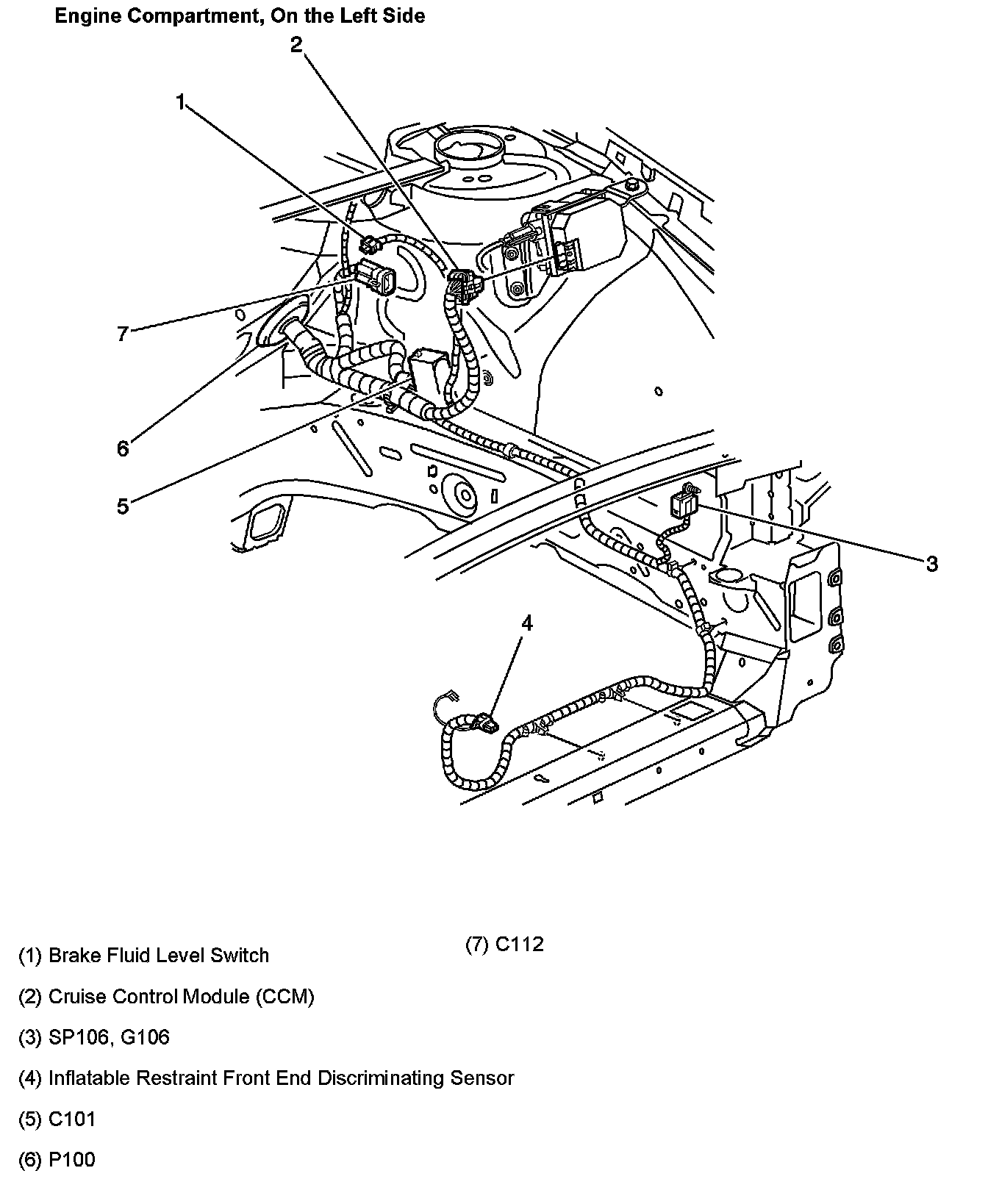

Engine Compartment, On The Left Side:
