Master Window Switch

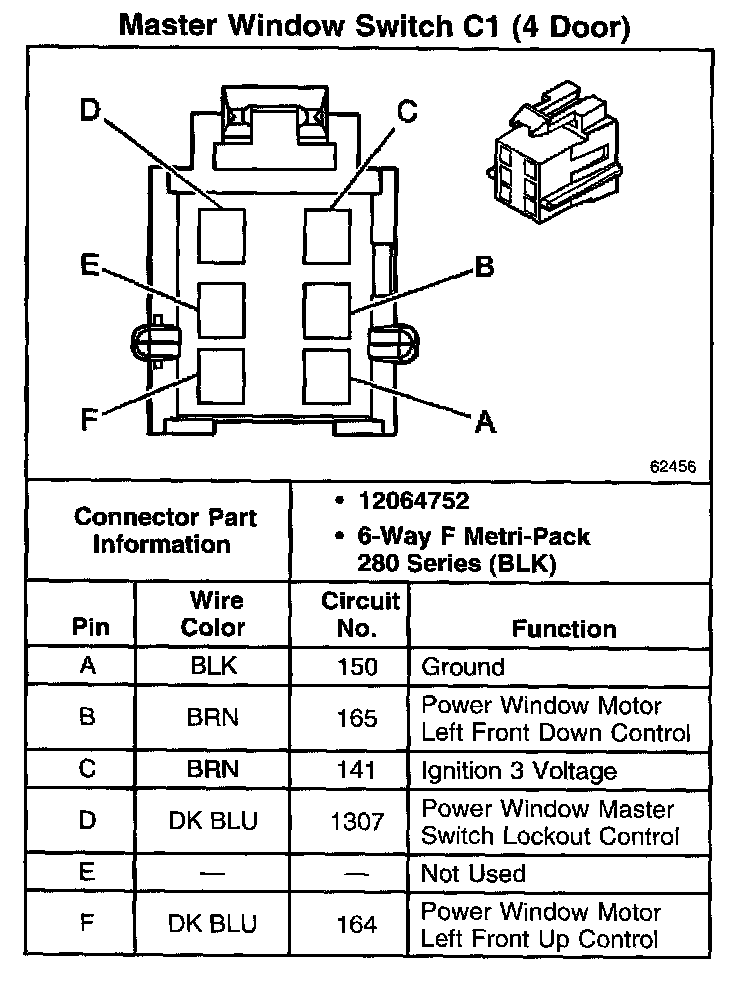

Master Window Switch C1 (4 Door):

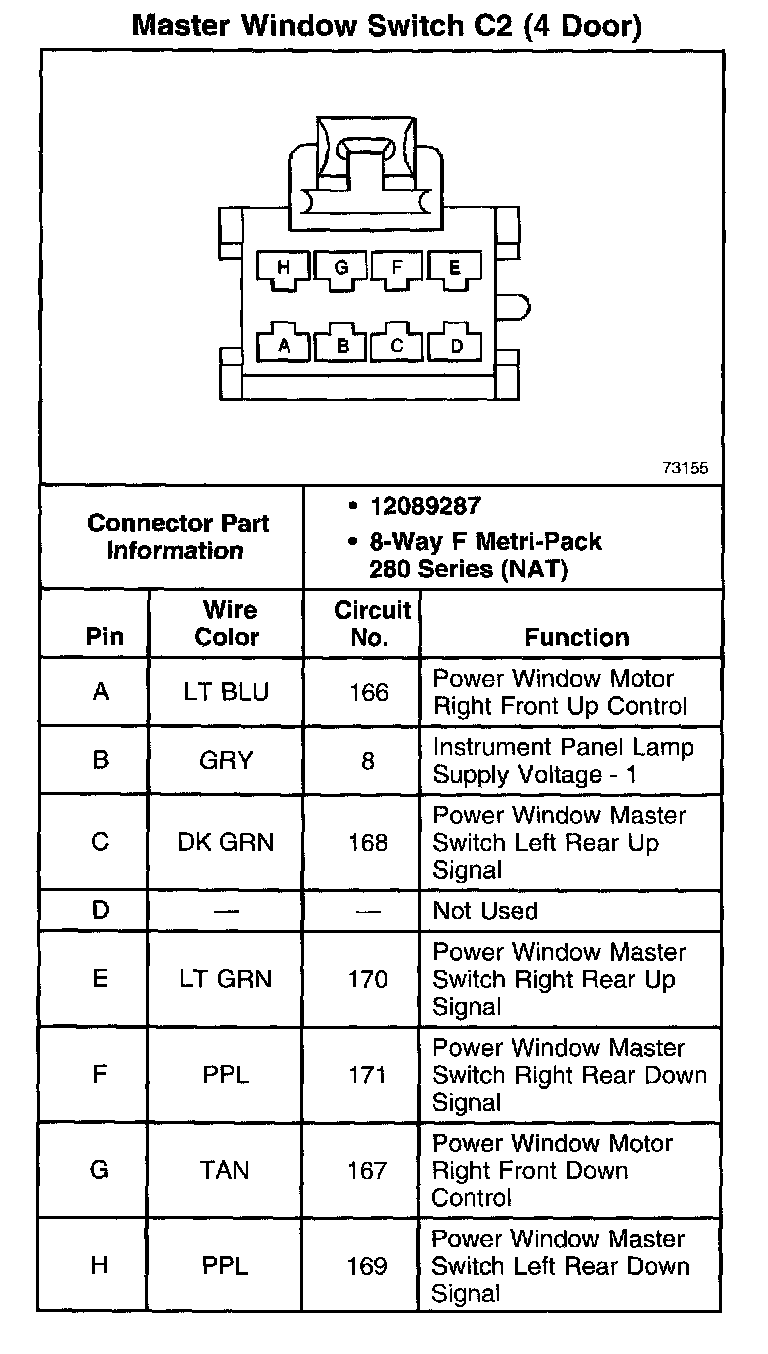

Master Window Switch C2 (4 Door):

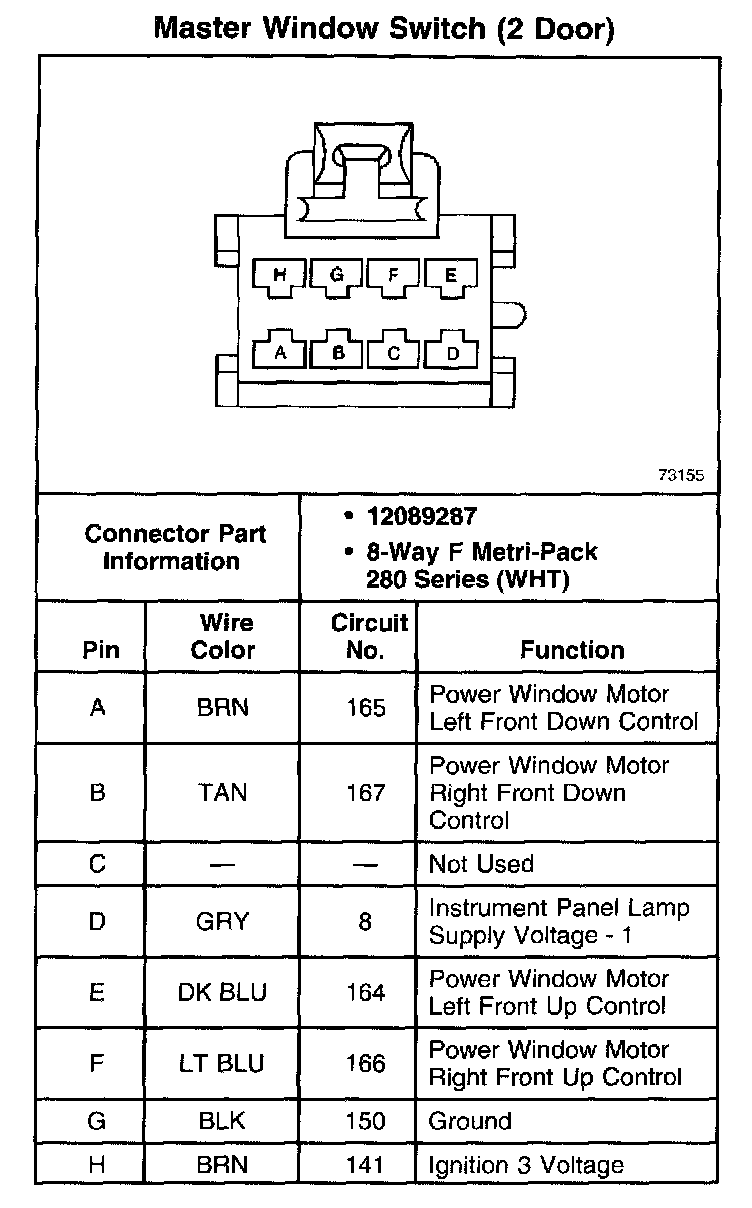

Master Window Switch (2 Door):
