MAF Sensor and A/T Controls VSS Reference

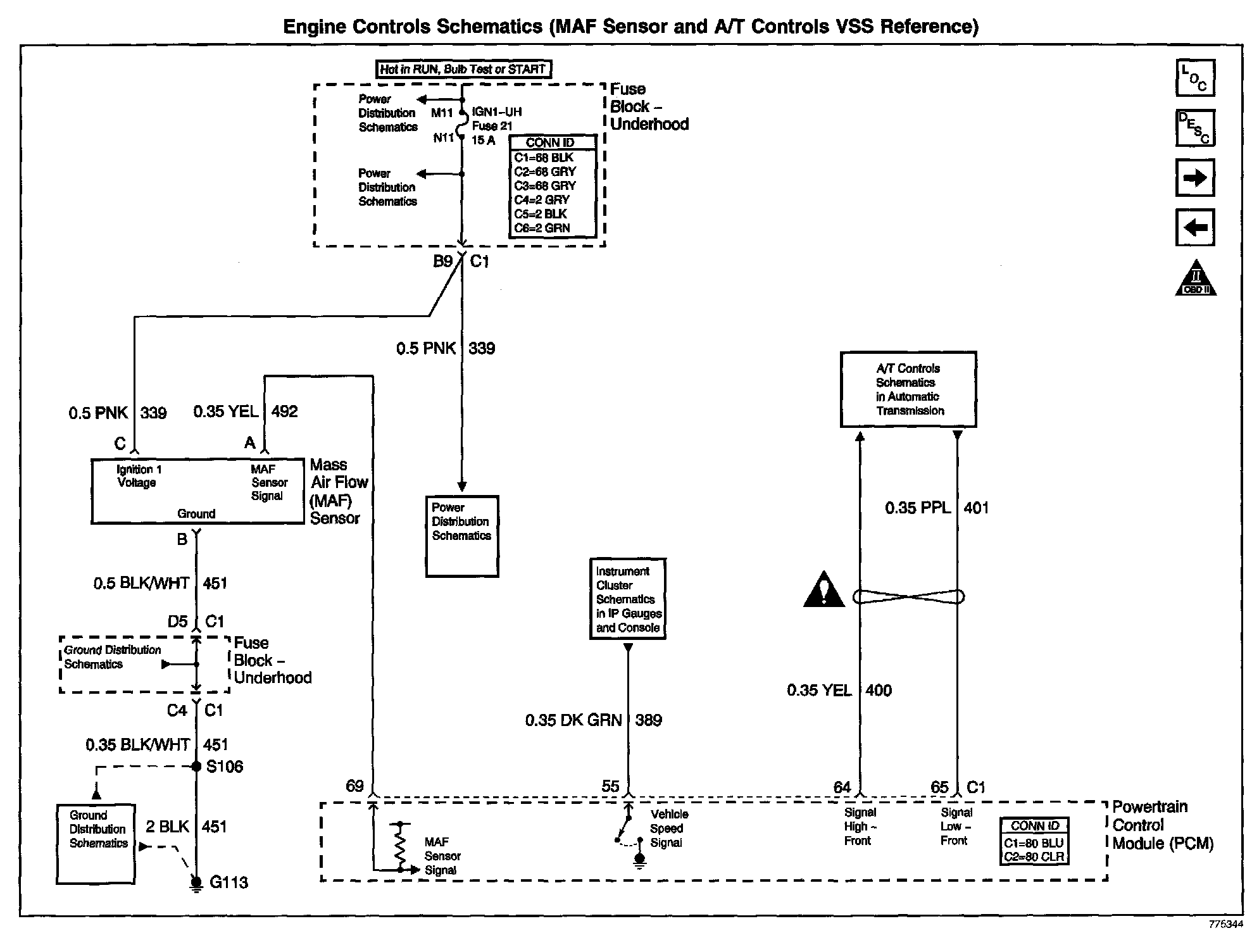

Engine Controls Schematics: MAF Sensor And A/T Controls VSS Reference:
