Automatic Transmission/Transaxle

DISASSEMBLED VIEWS

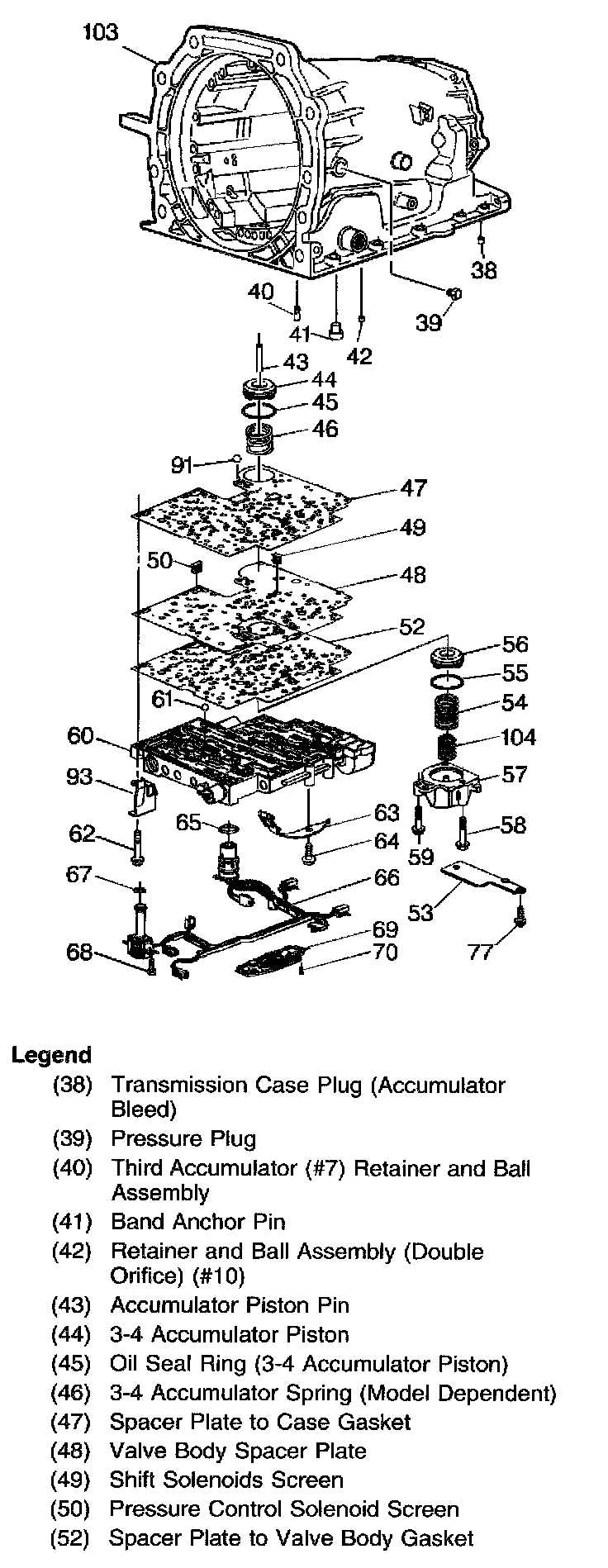

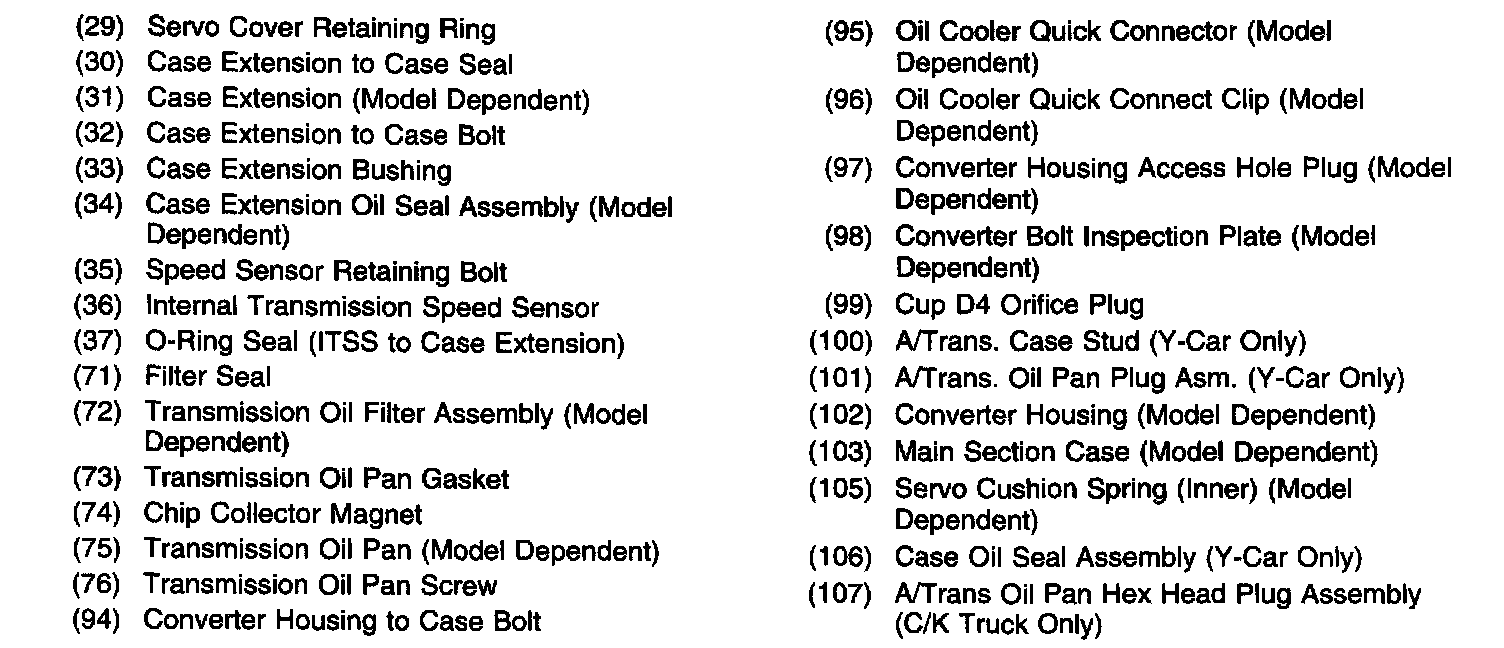

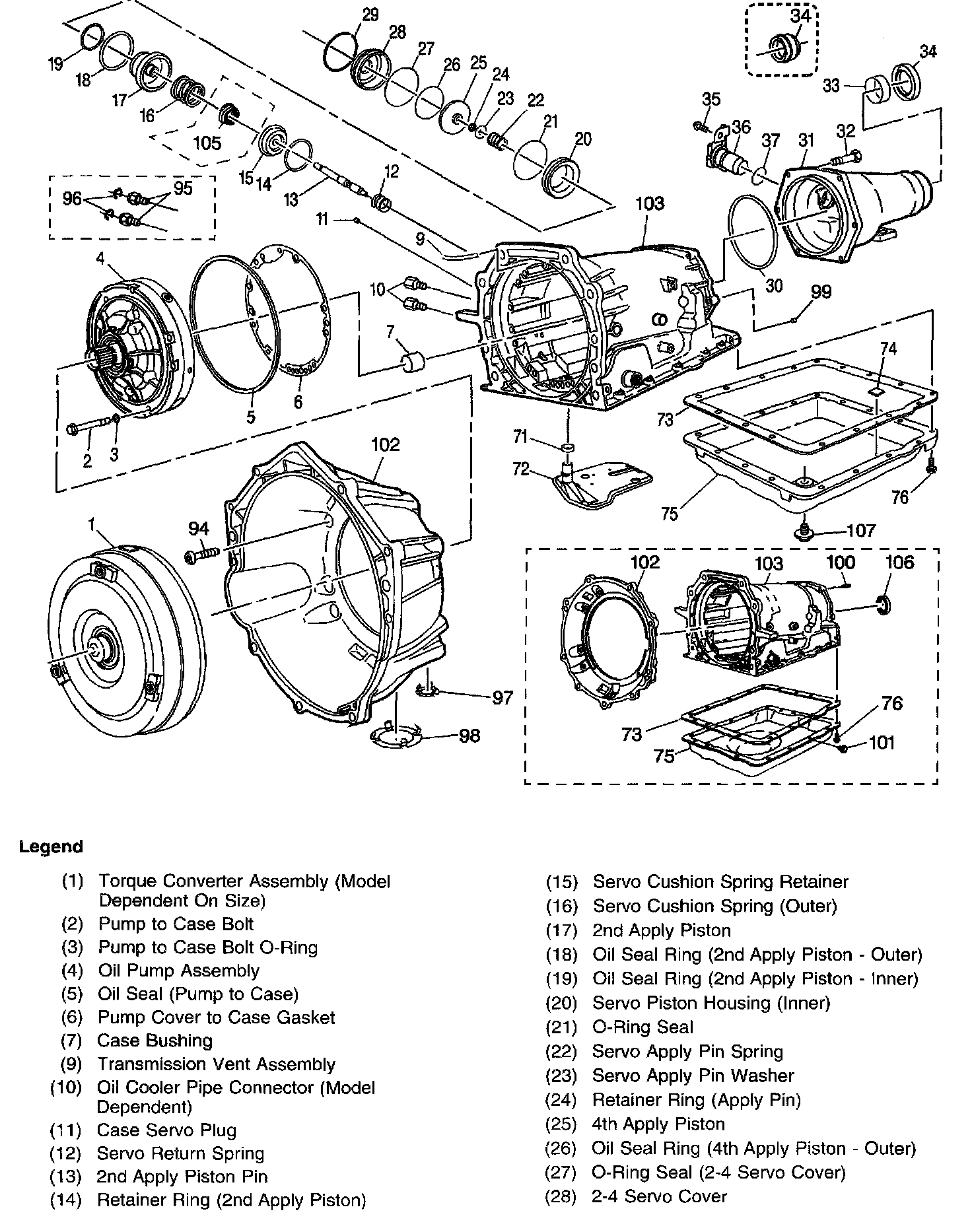

Case and Associated Parts

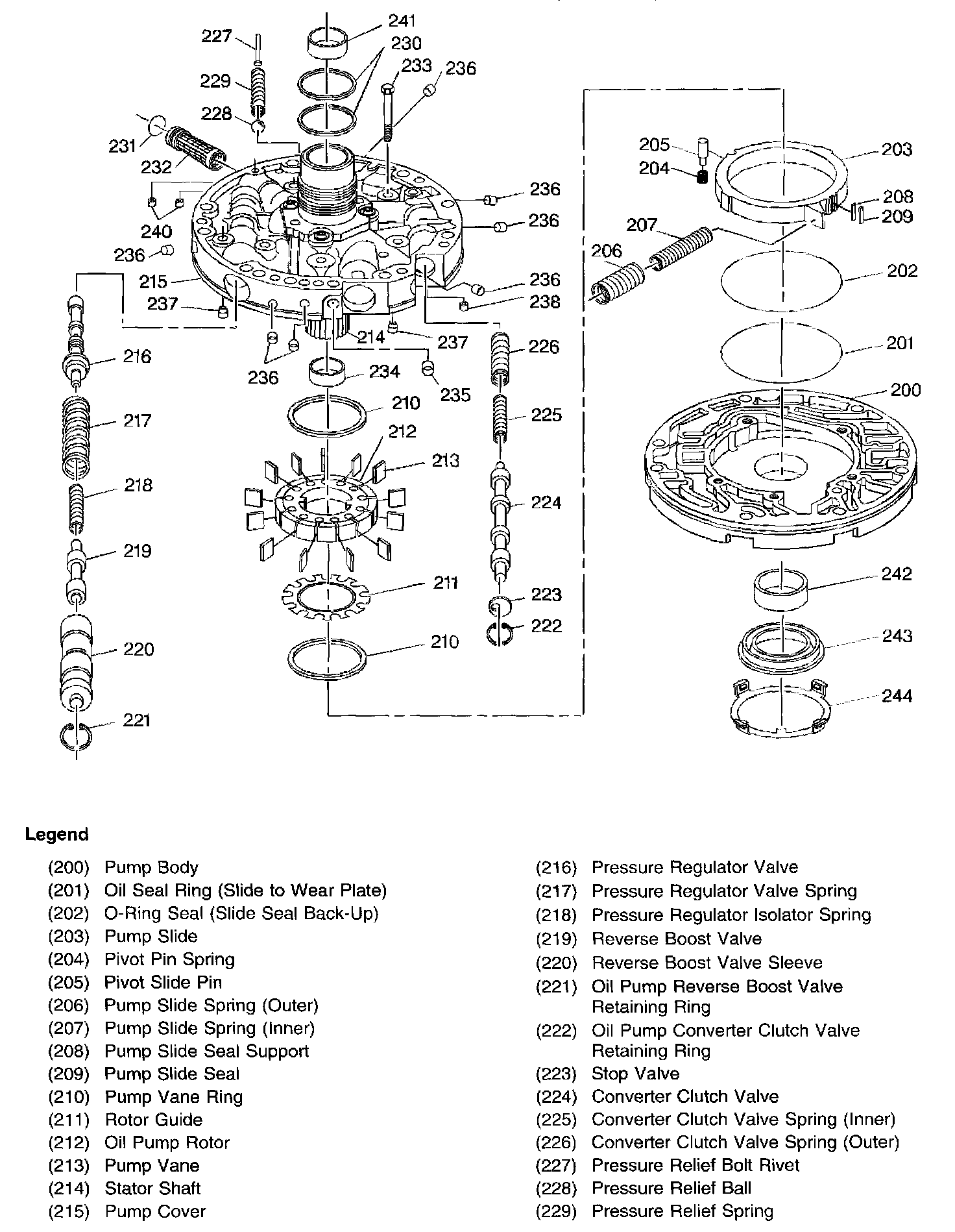

Oil Pump Assembly

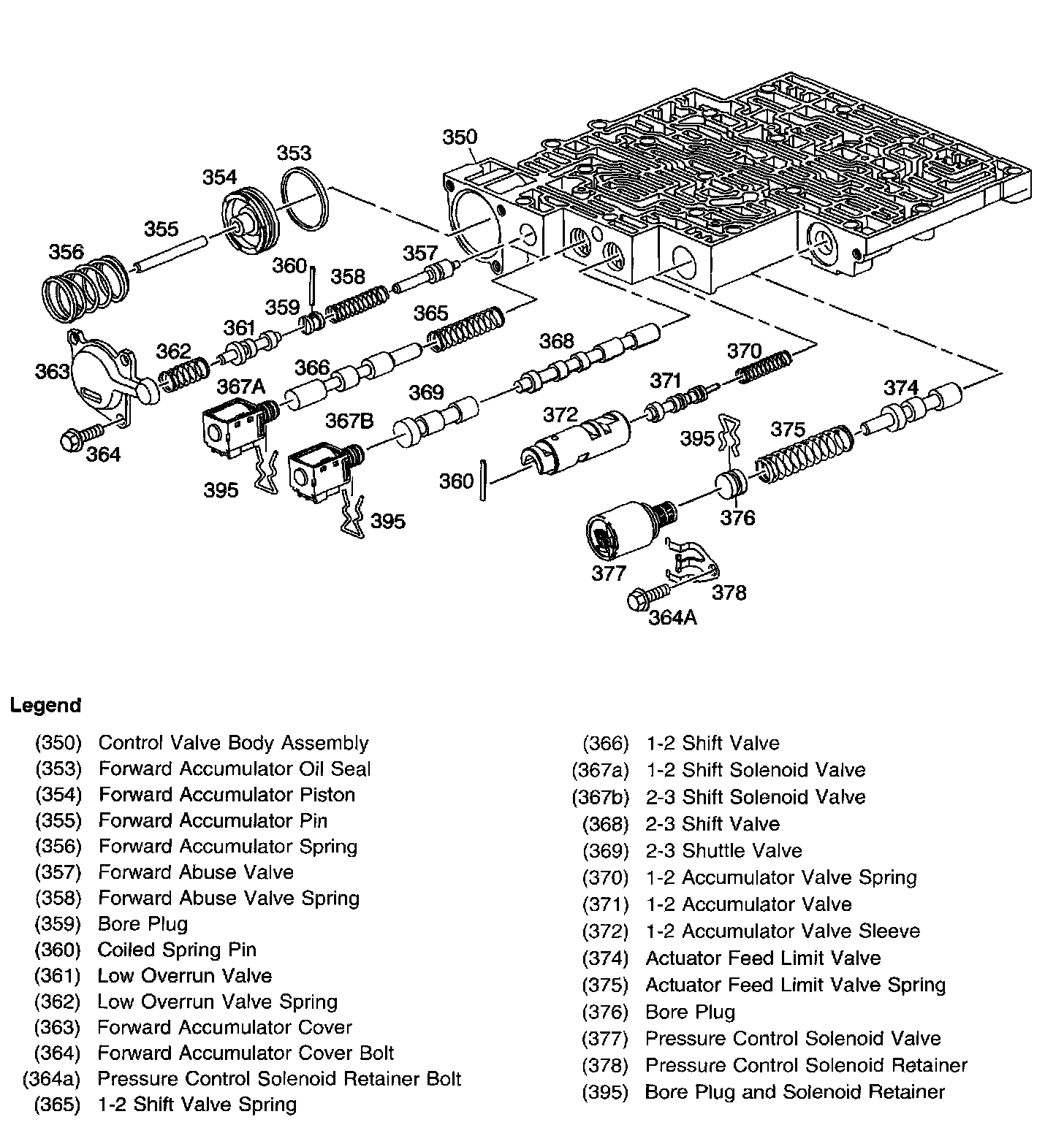

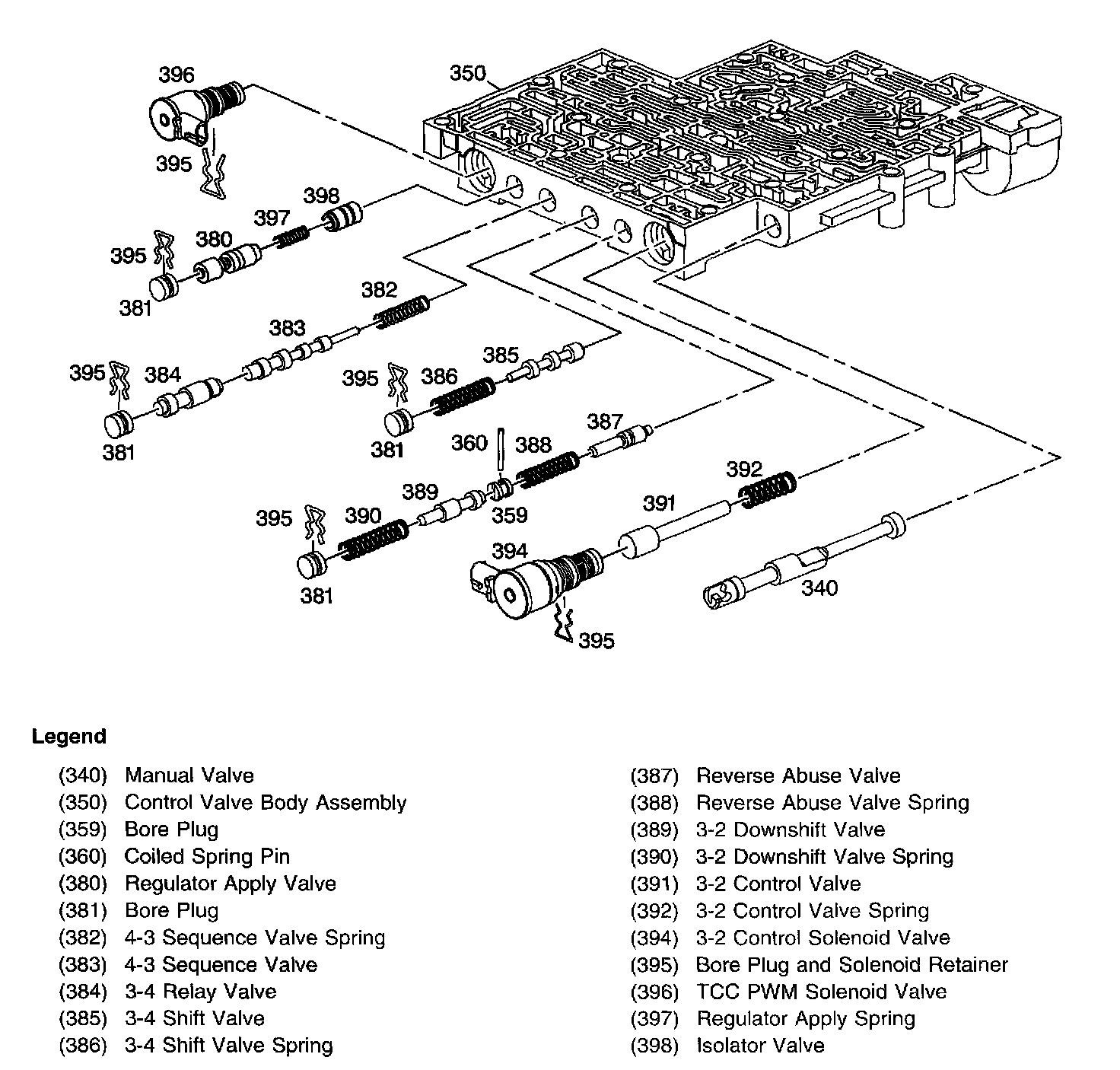

Control Valve Body Assembly

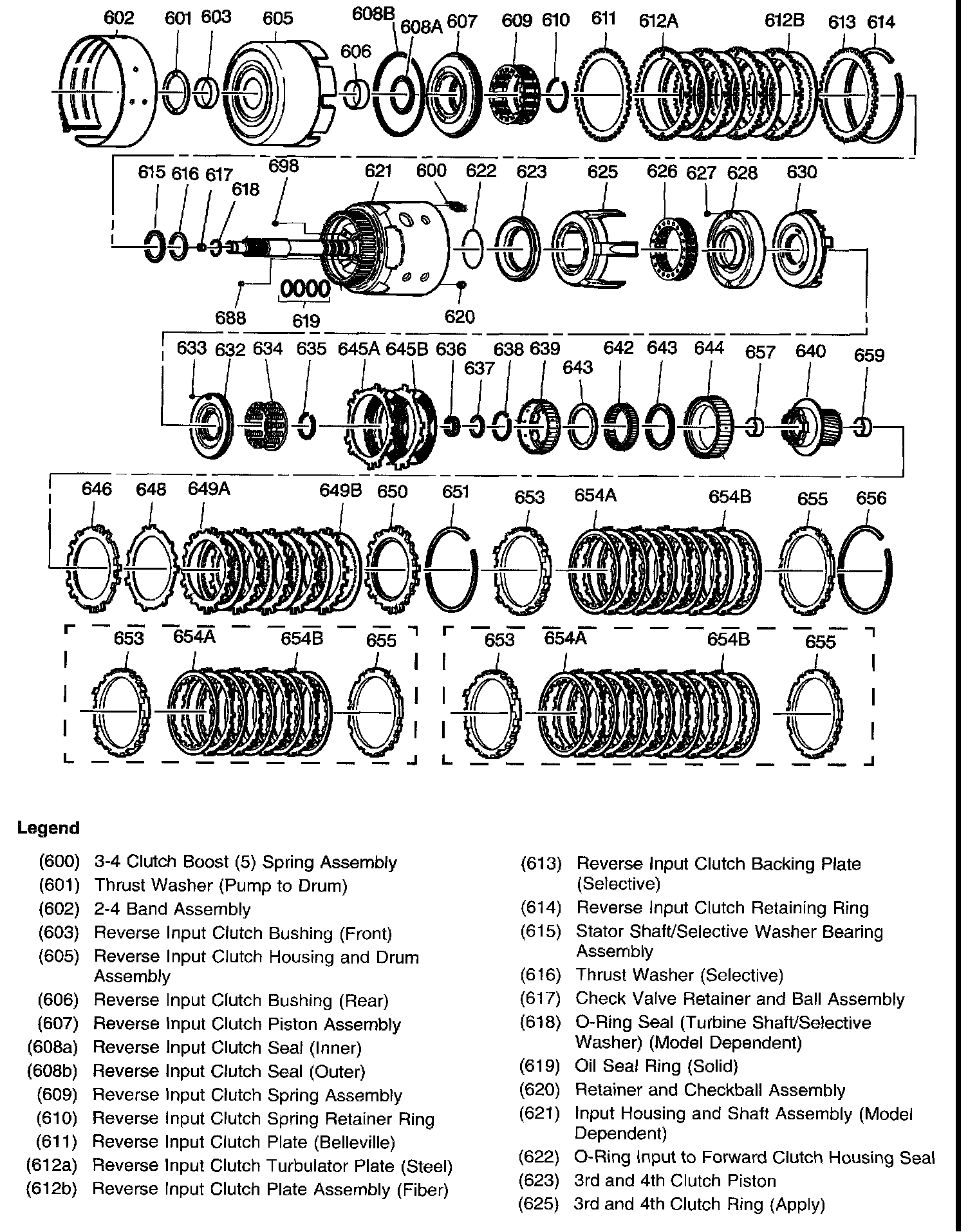

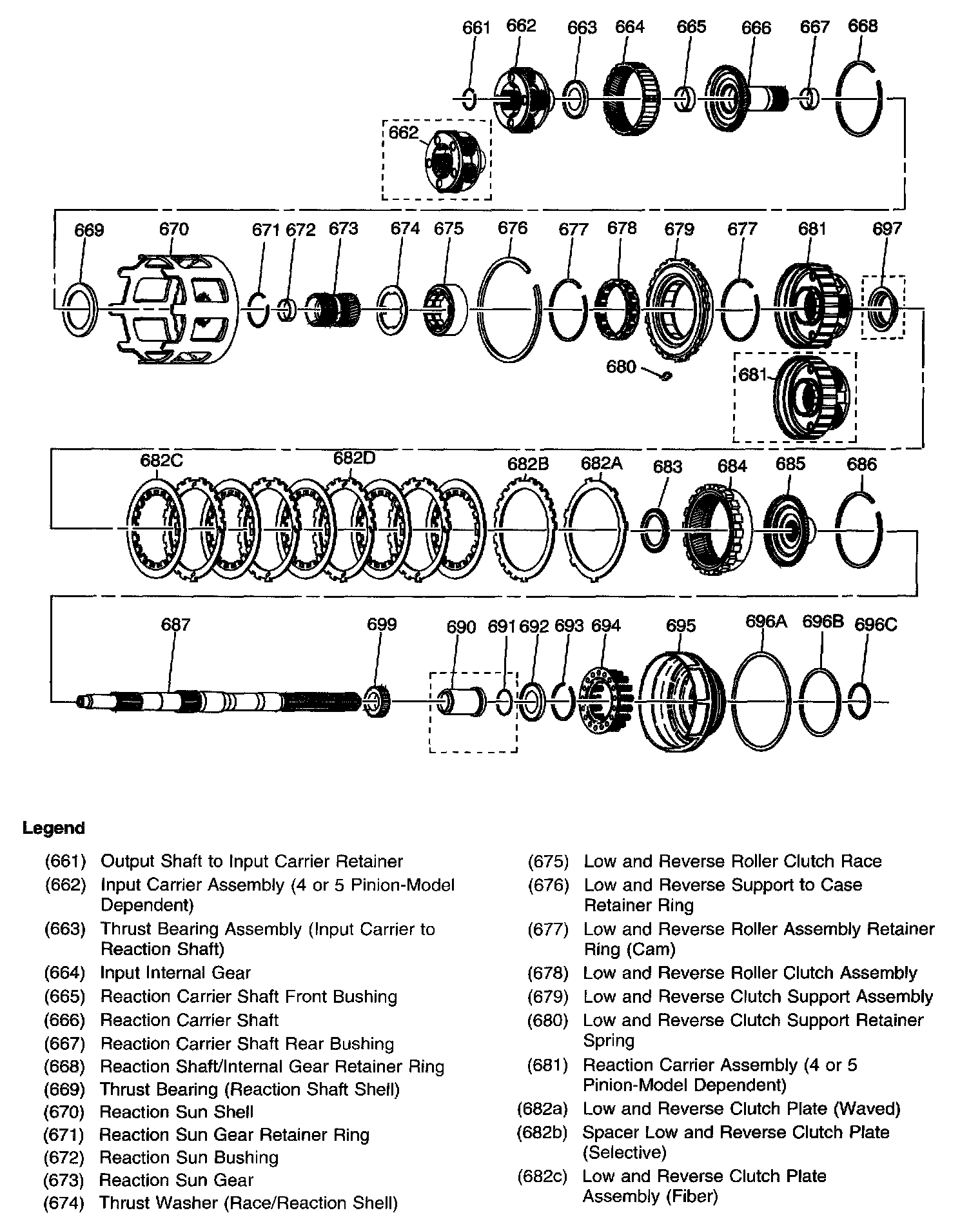

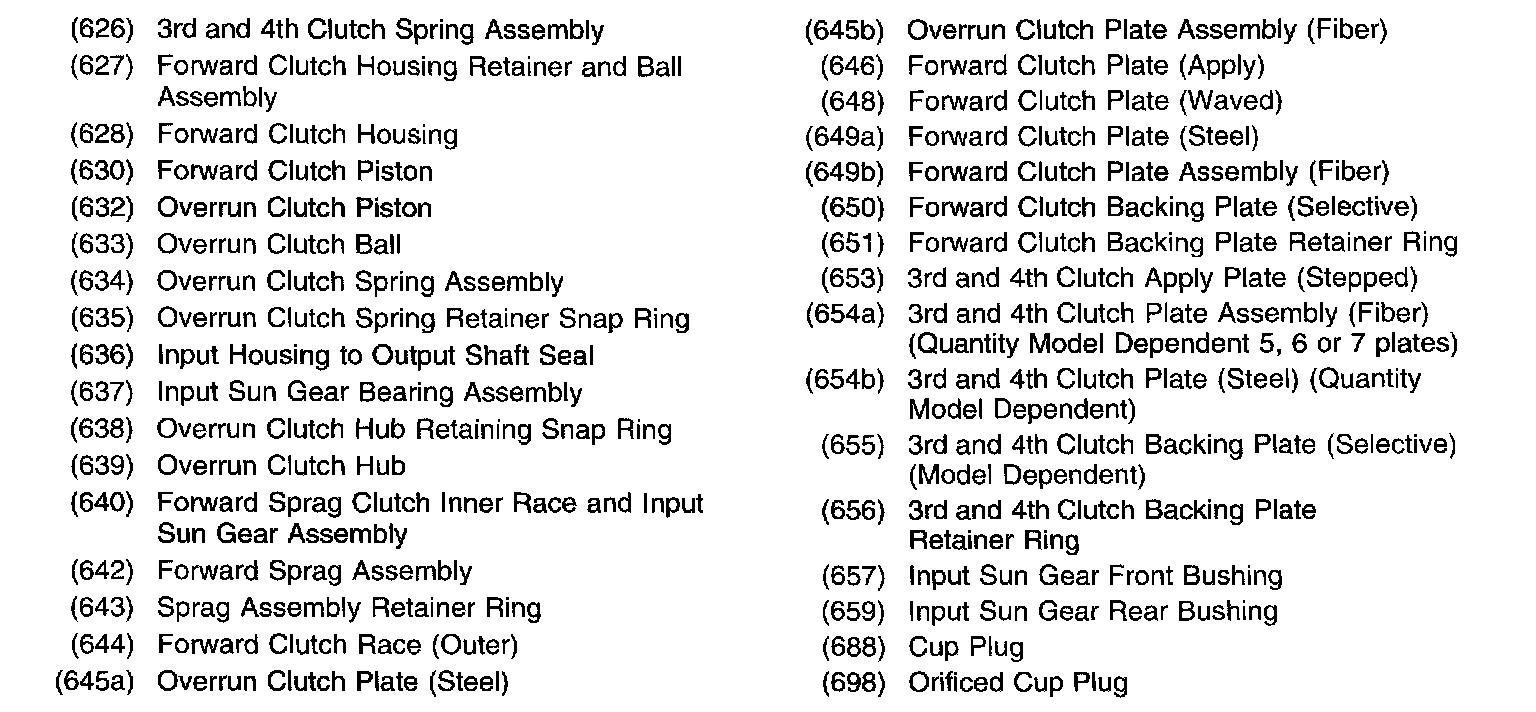

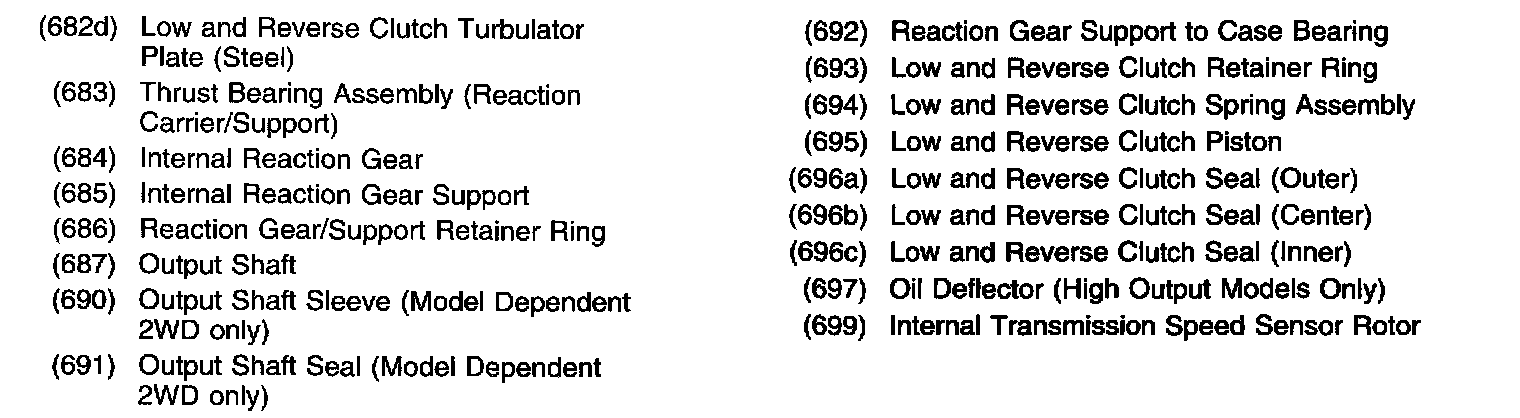

Internal Parts

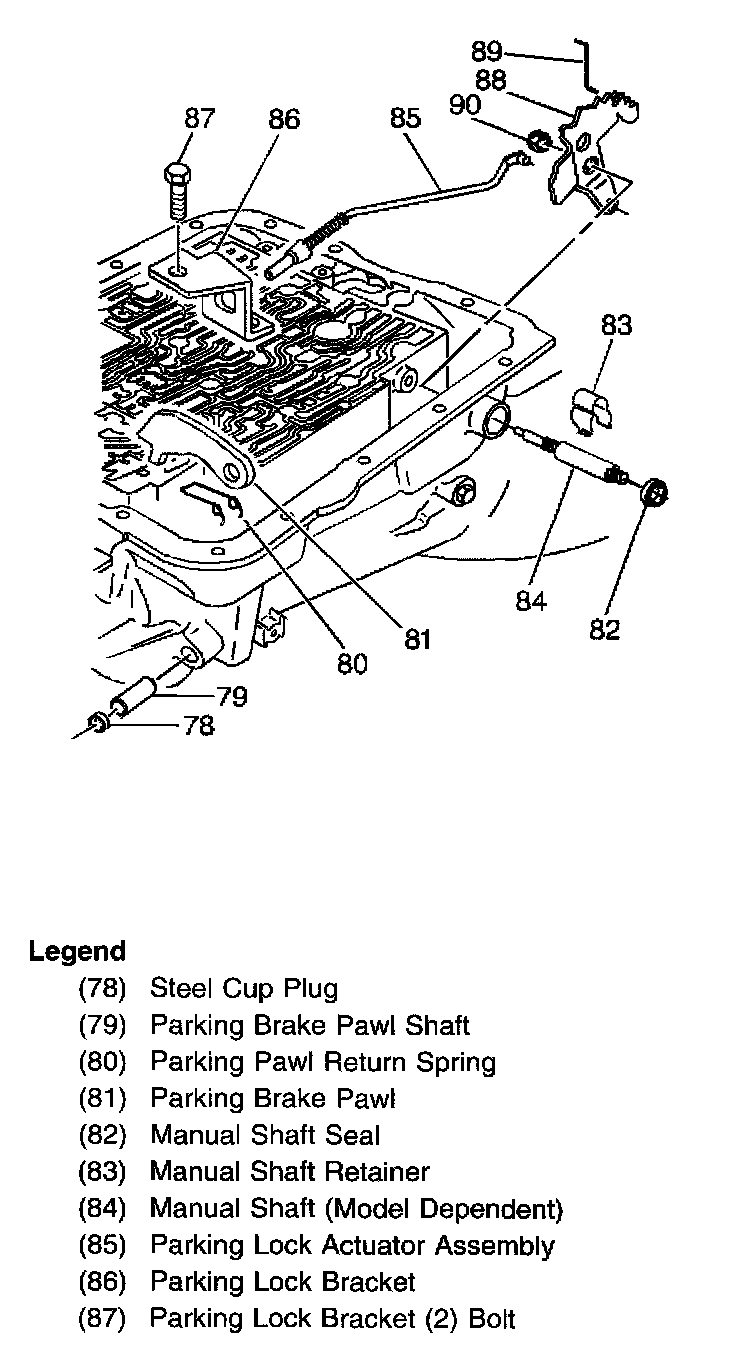

Parking Lock and Manual Shift Shaft Assembly
