Traction Control Module

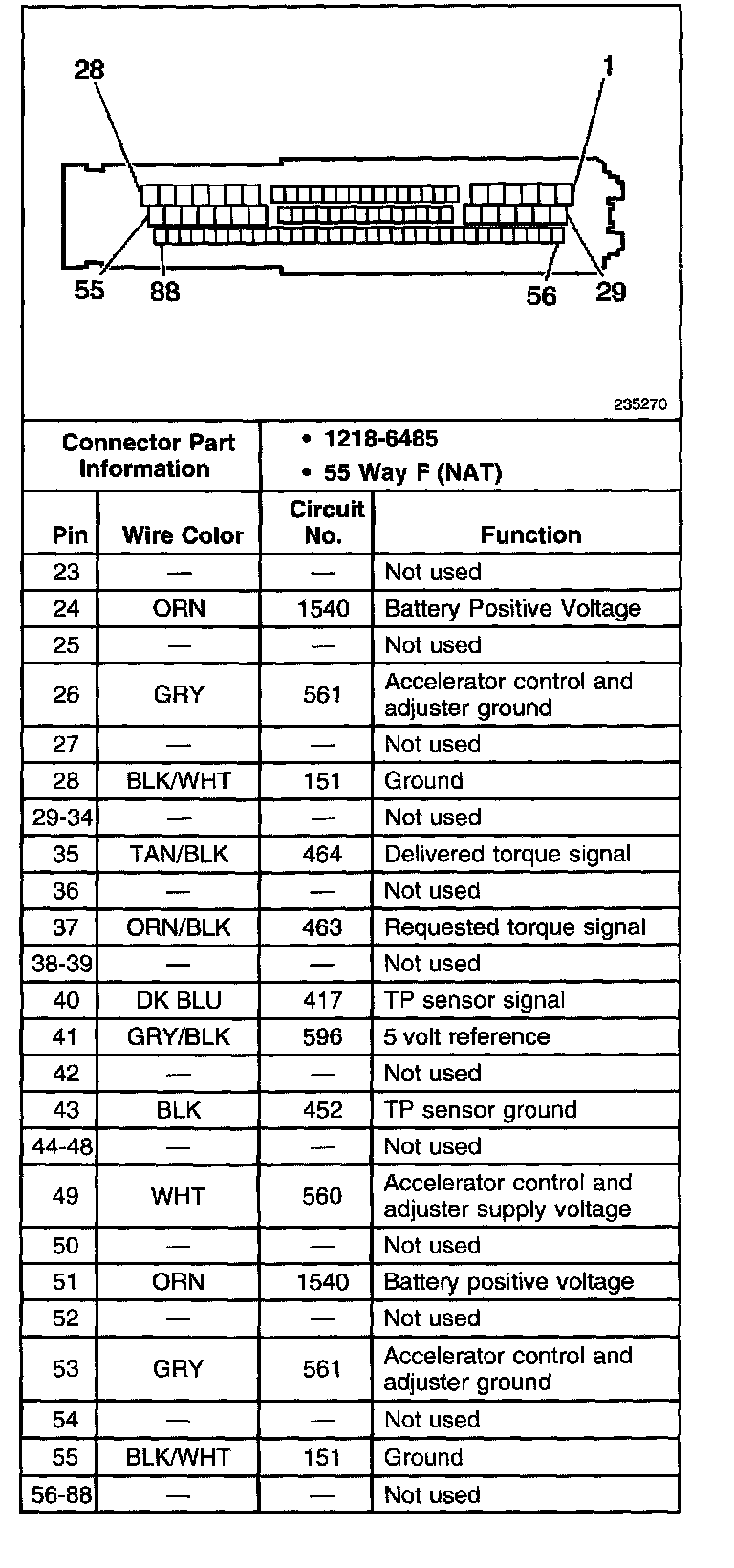

Accelerator and Servo Control Module (ASM)





Part 1 of 2





Part 2 of 2
