Scan Tool Data List - Instrument Panel Integration Module (IPM)
Scan Tool Data List - Instrument Panel Integration Module (IPM)

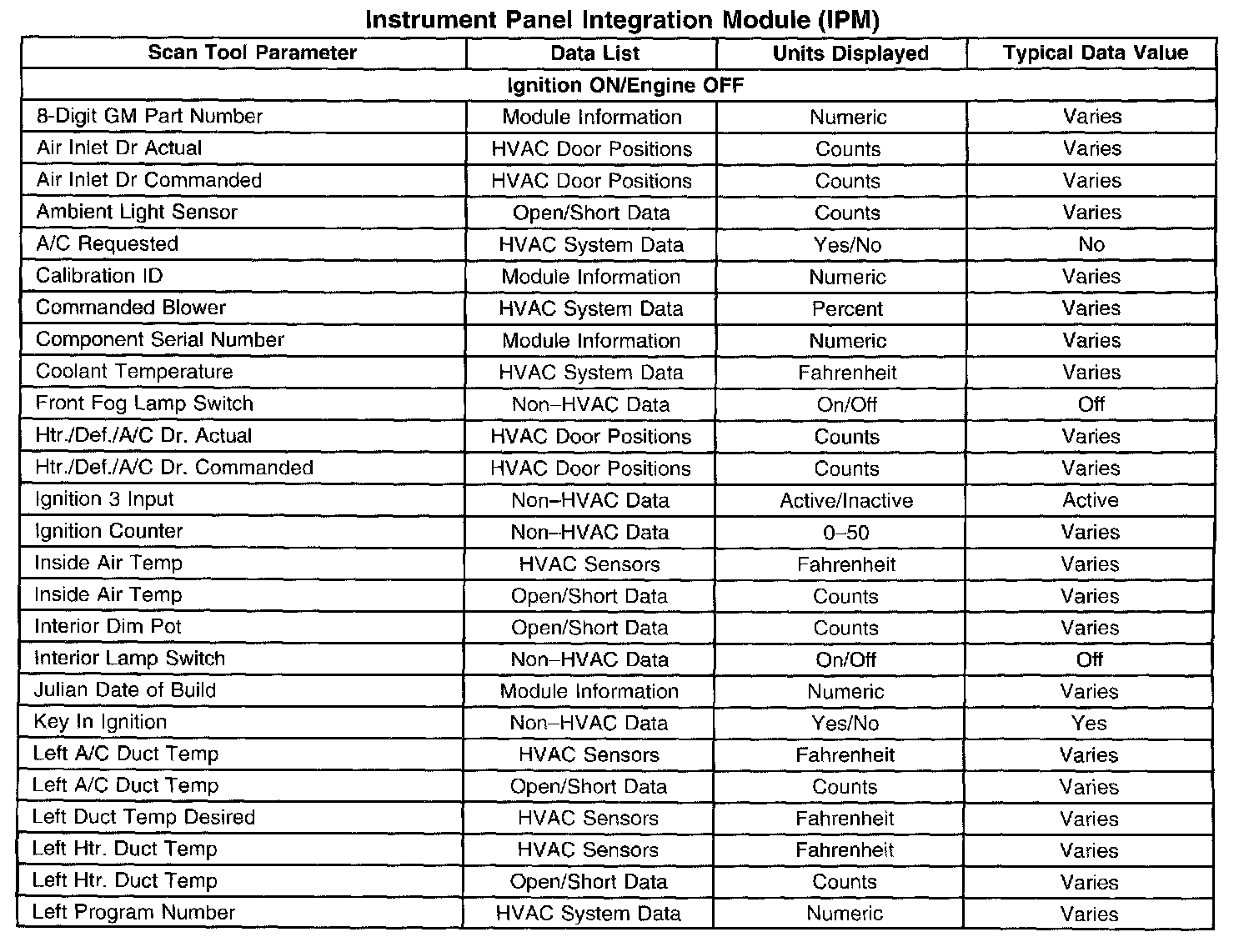

Instrument Panel Integration Module (IPM) Part 1:

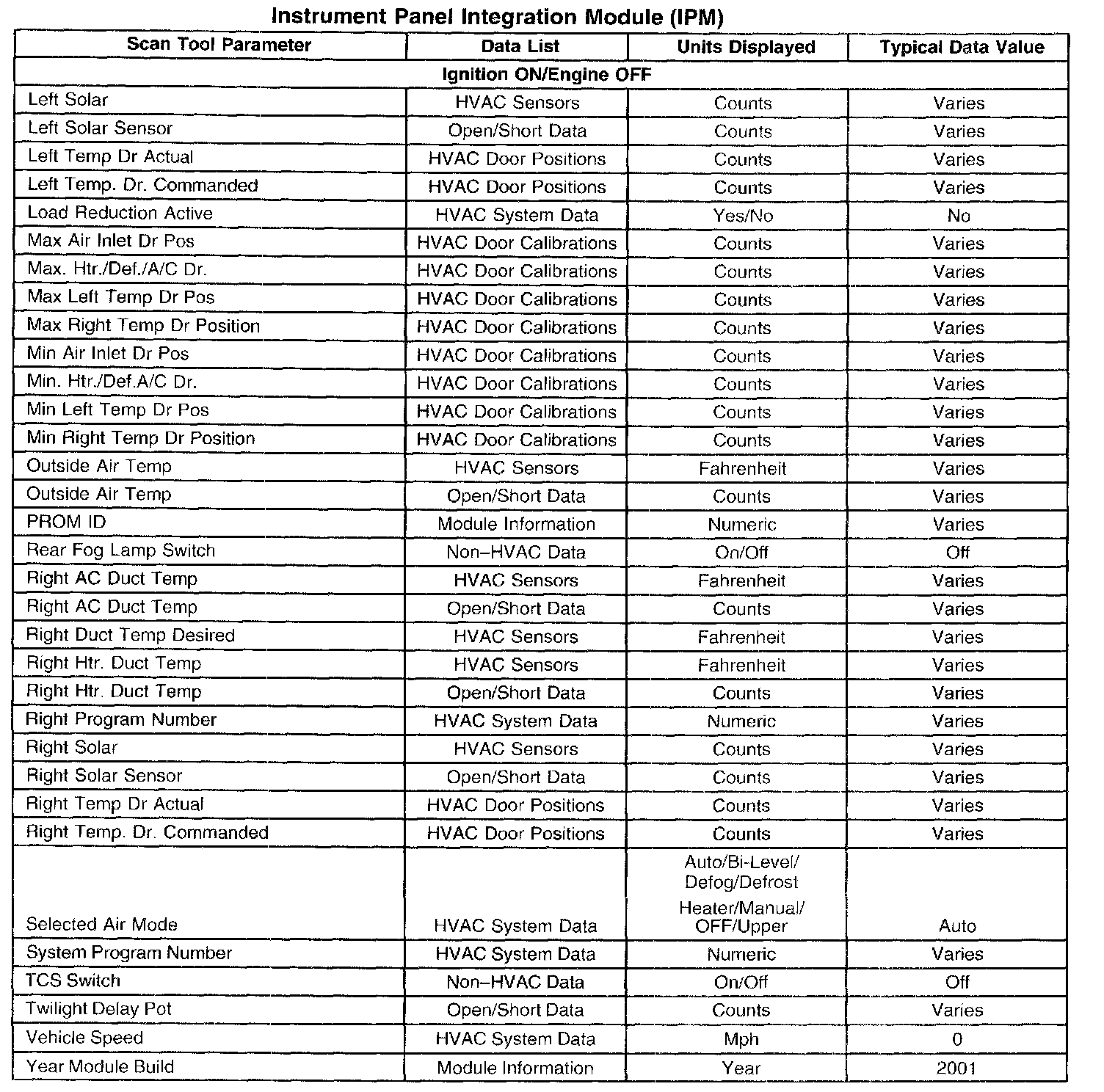

Instrument Panel Integration Module (IPM) Part 2:
