Fuel Tank Pressure Sensor (CNG)

Fuel Pressure Sensor (FPS) Output Voltage Vs Pressure (CNG):

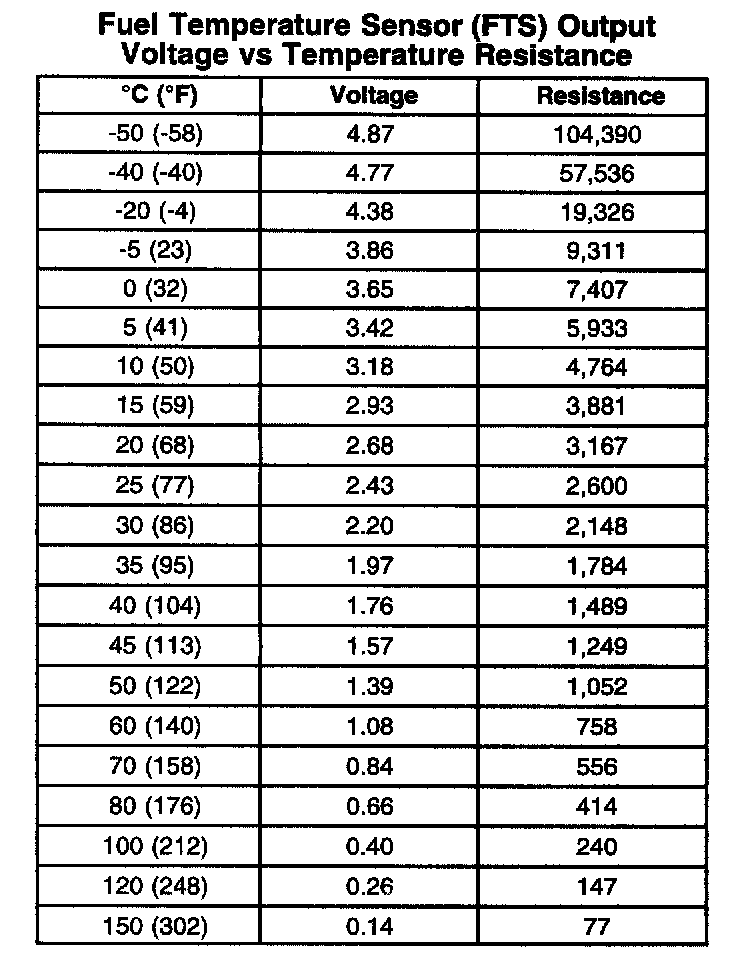

Fuel Temperature Sensor (FTS) Output Voltage Vs Temperature Resistance:
