Home >> Pontiac >> 2001 >> Grand Prix V6-3.8L VIN K >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> System Specifications

System Specifications

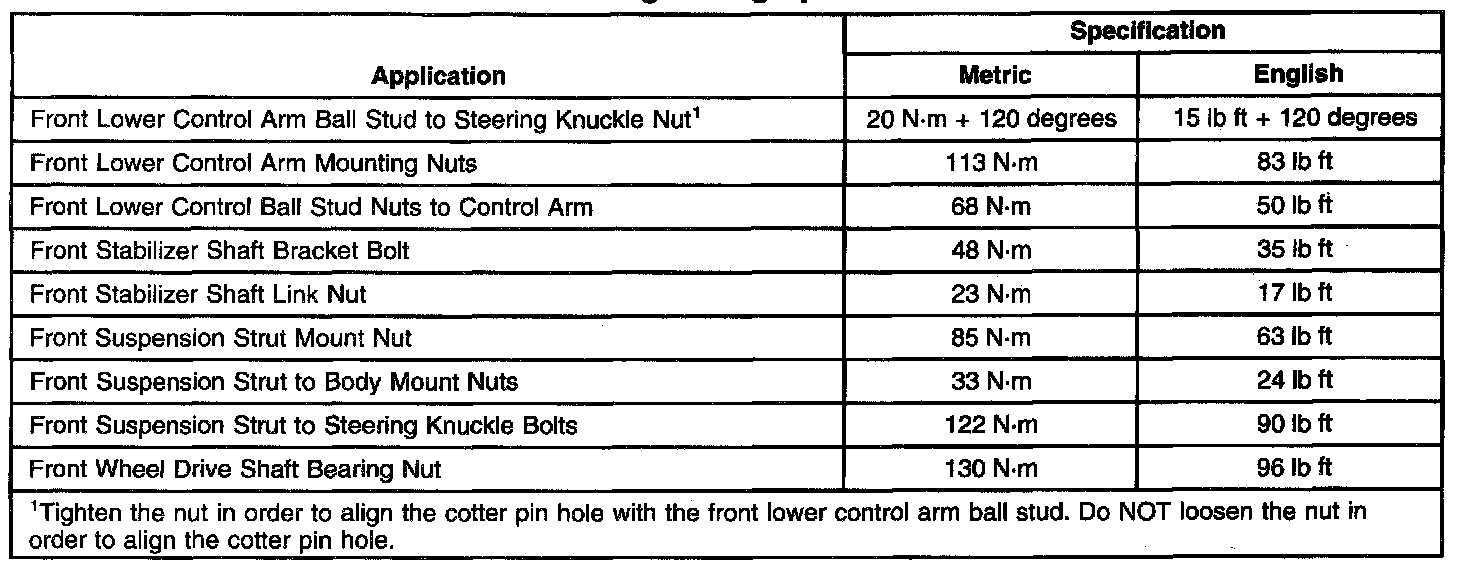

Front Suspension Fastener Tightening Specifications

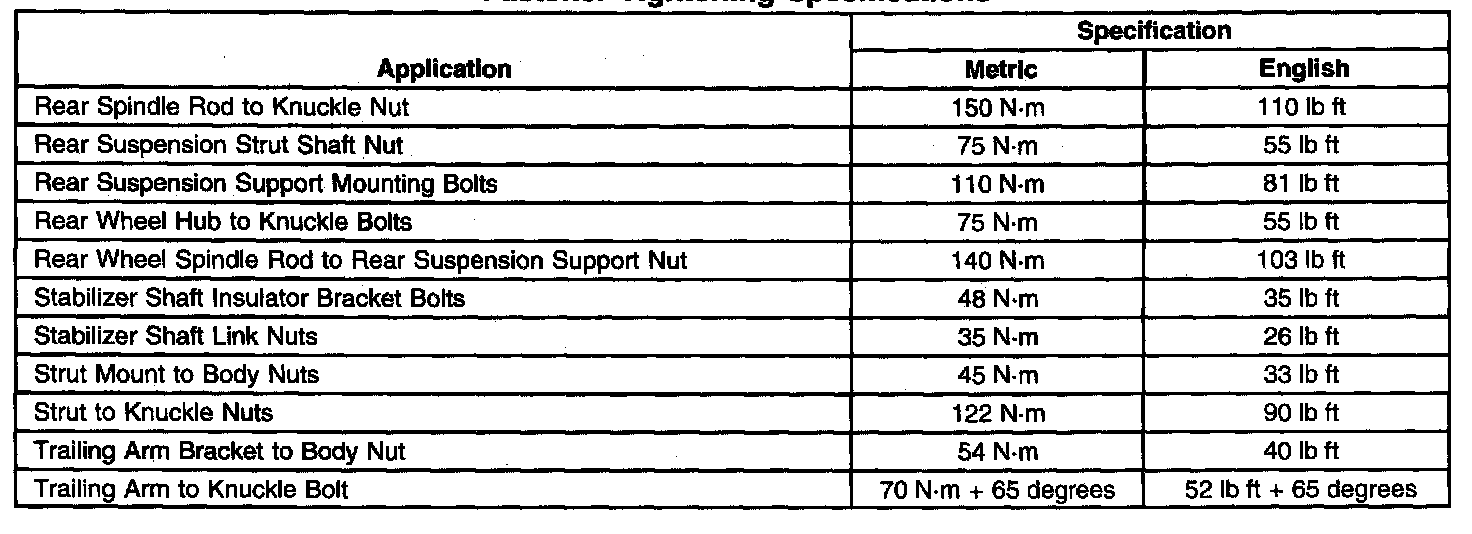

Rear Suspension Fastener Tightening Specifications






Ride Height Specifications






Measuring Z Height






Measuring D Height






Measuring J or K Height
