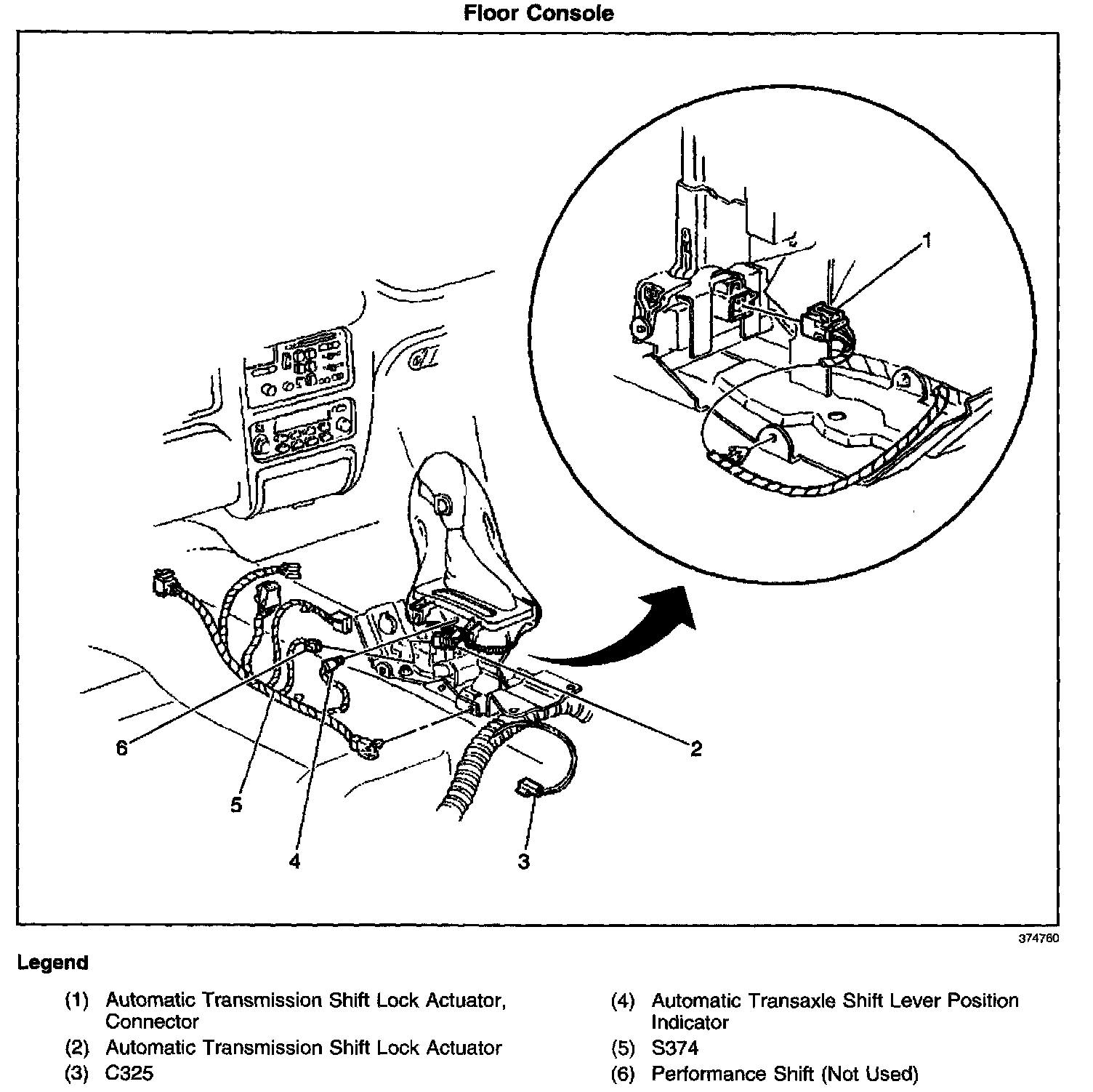

Automatic Transaxle Shift Lever Position Indicator

Locations View:




Inside the floor console, near the shifter
