System Diagram

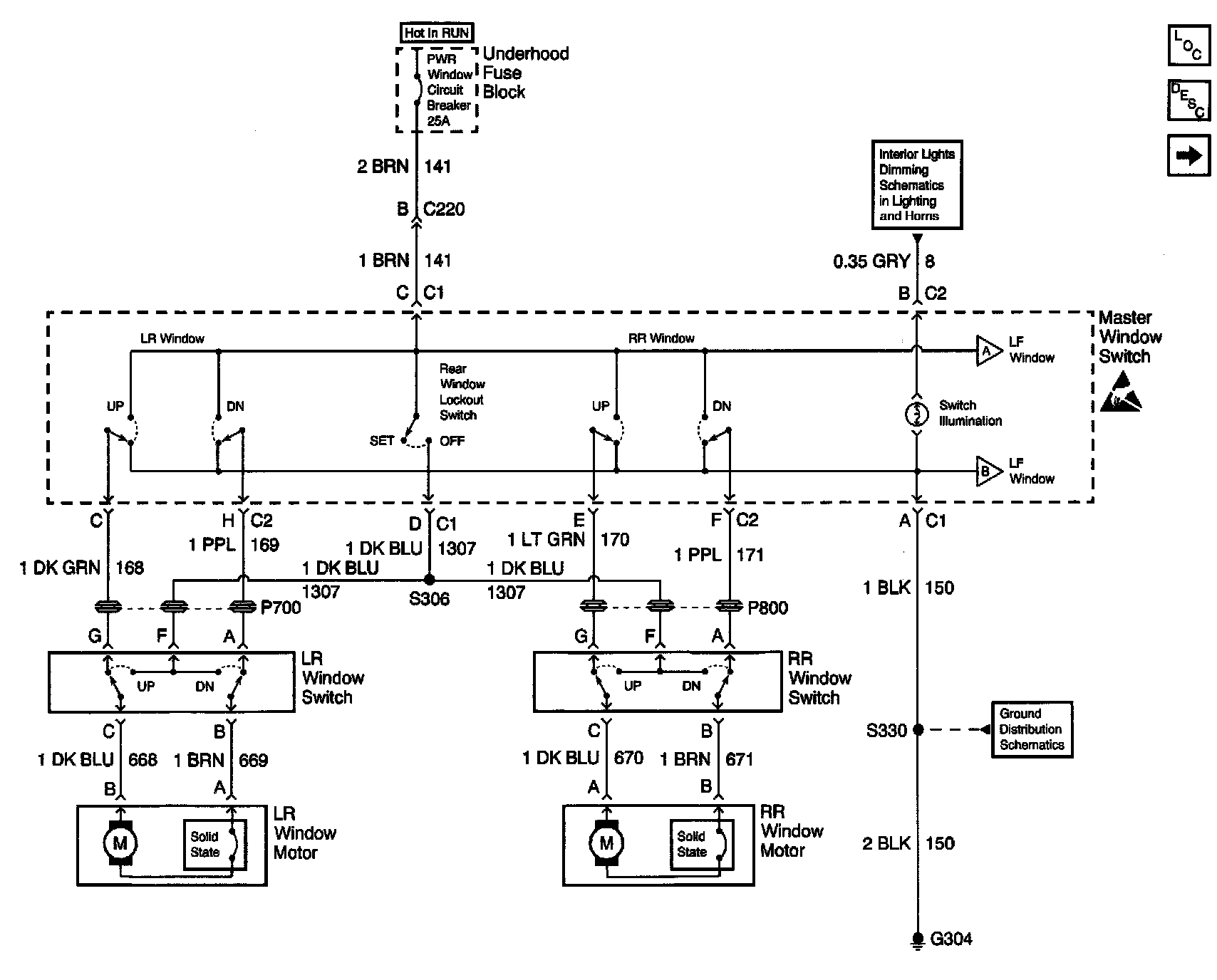

Power Windows (Sedan)

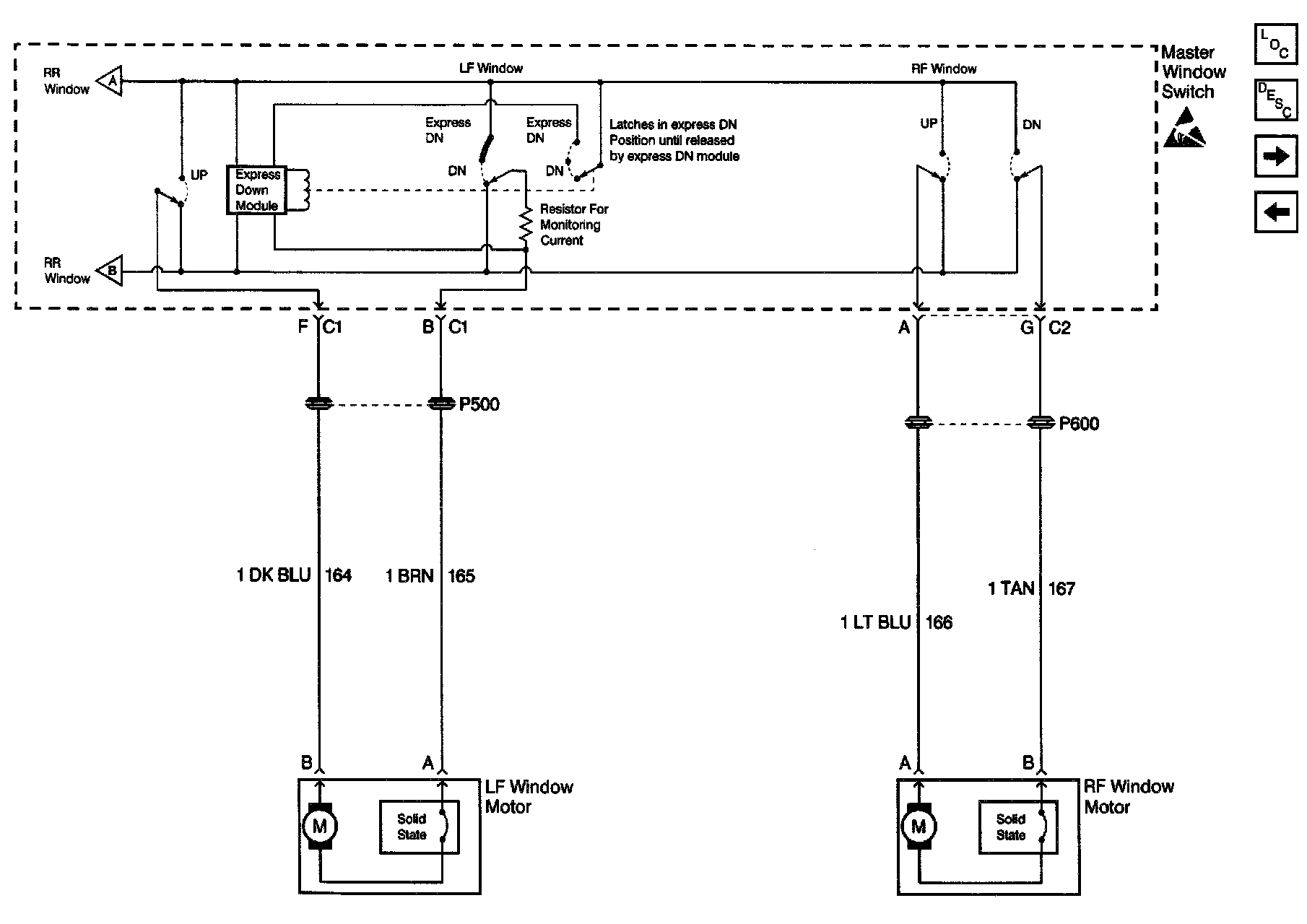

Power Windows, Front (Sedan)

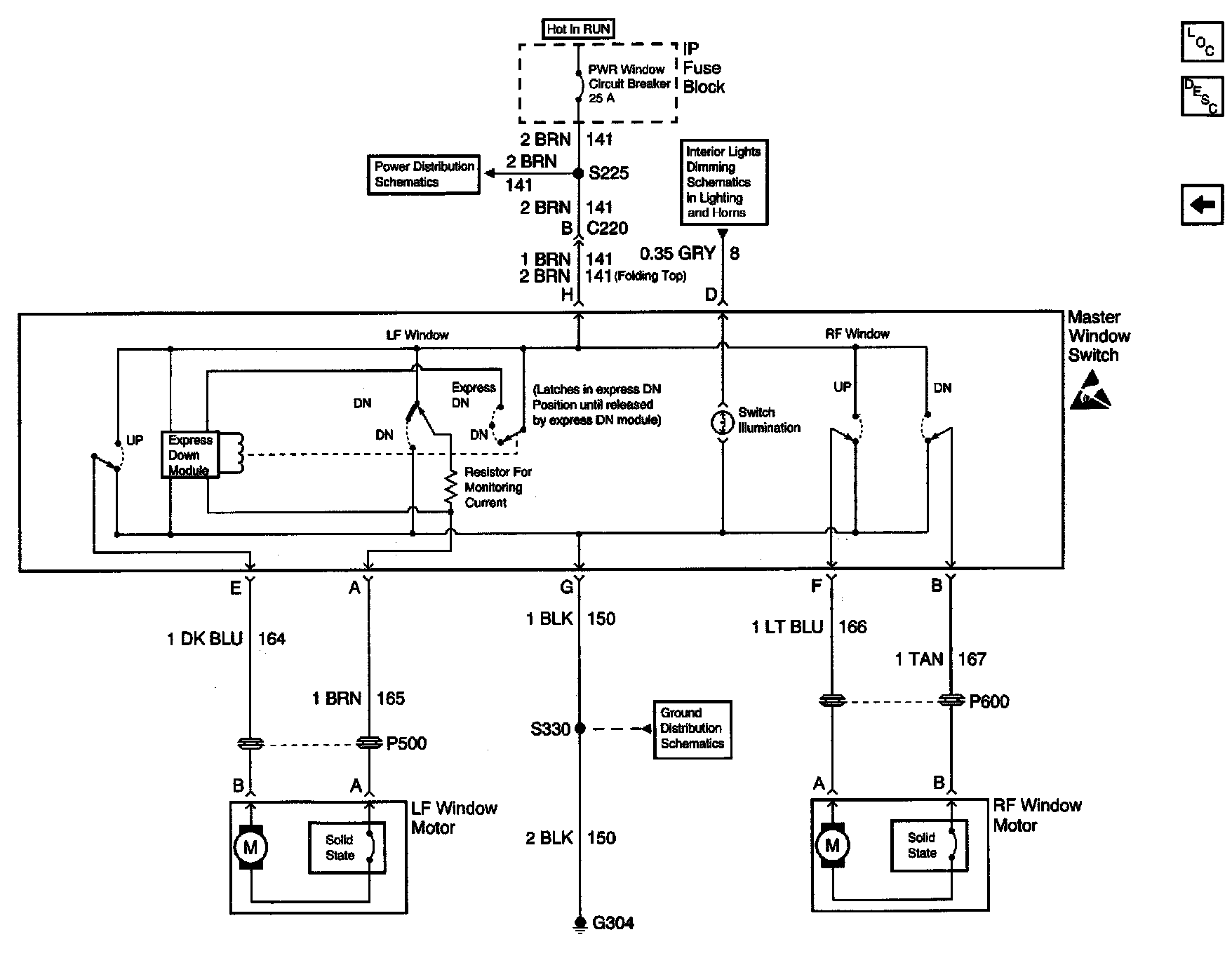

Power Windows Master Window Switch (Coupe)
