Home
>>
Pontiac
>>
1999
>>
Grand Prix V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Ignition Control Module
>>
Locations
>>
Component Locations
Component Locations

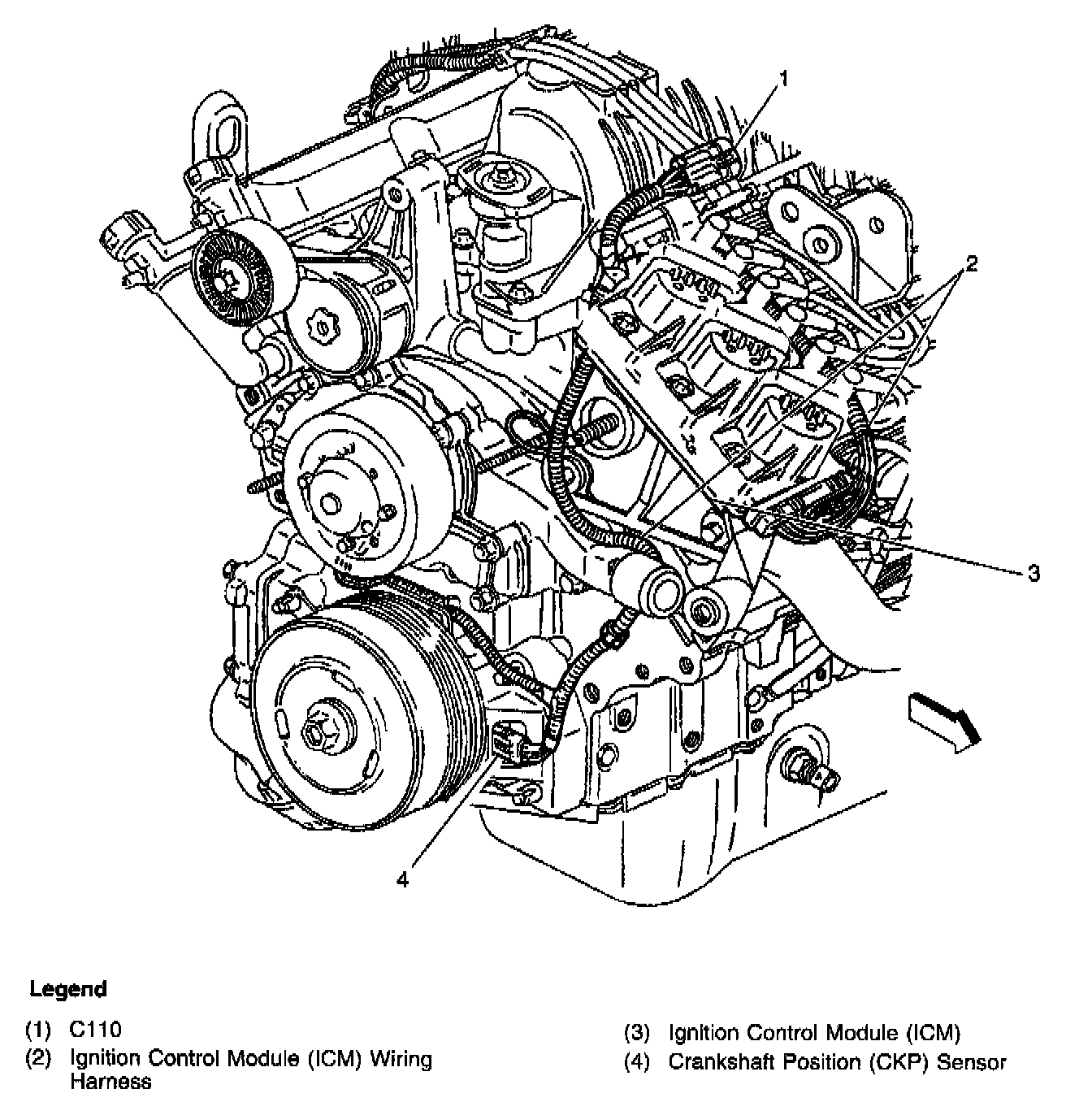

ICM, CKP Sensor And C110 - RH Side Of Engine:
Locations View:
Top center rear of the engine
Top right of the engine
