Home >> Pontiac >> 1999 >> Grand Prix V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Vehicle Speed Sensor >> Locations >> Component Locations

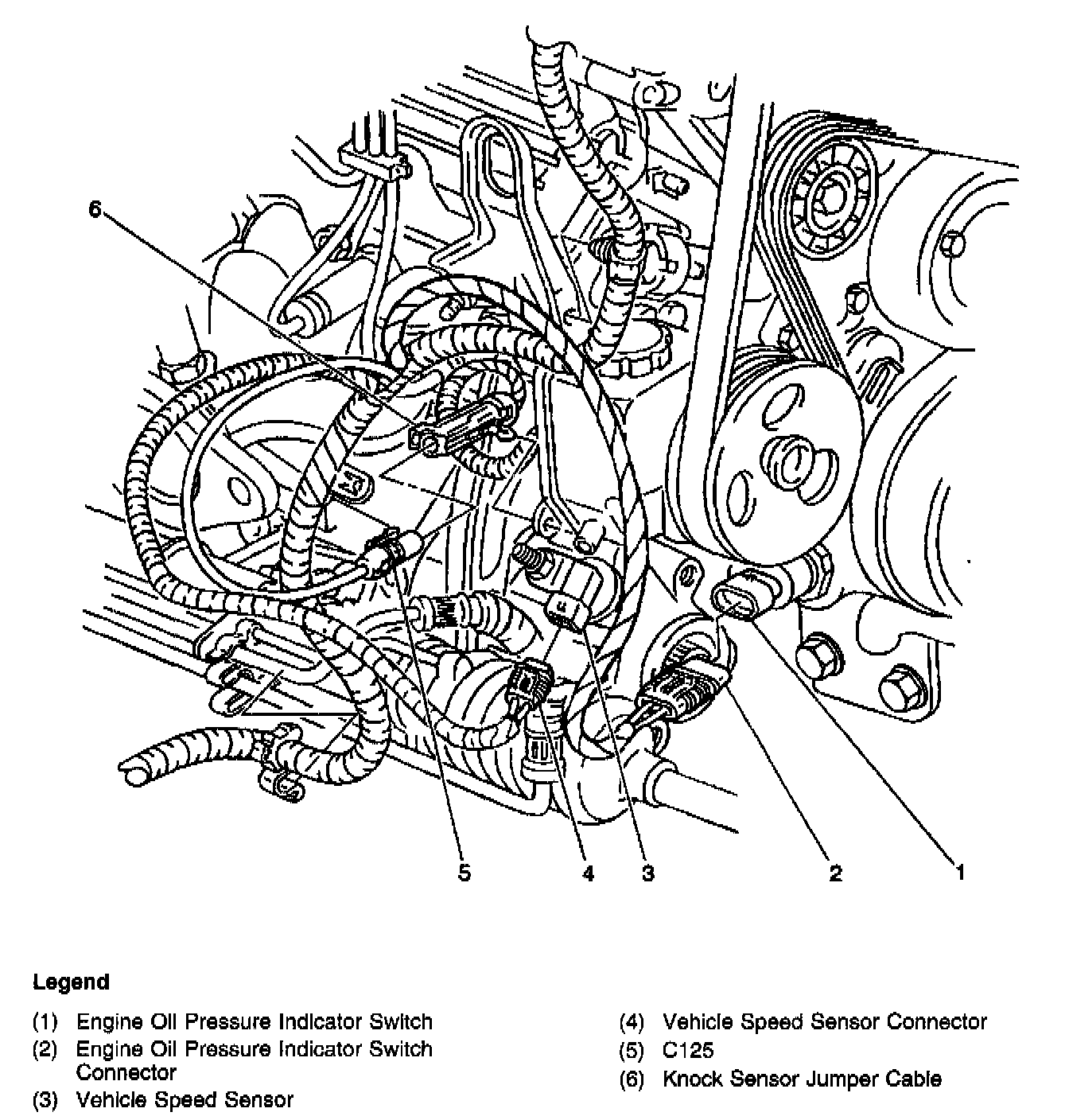

Component Locations

Right Rear Of Engine:




Right rear of the engine compartment, in the transaxle
