Home >> Pontiac >> 1999 >> Grand Prix V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Specifications >> General Engine Data Specifications >> Engine Mechanical Data

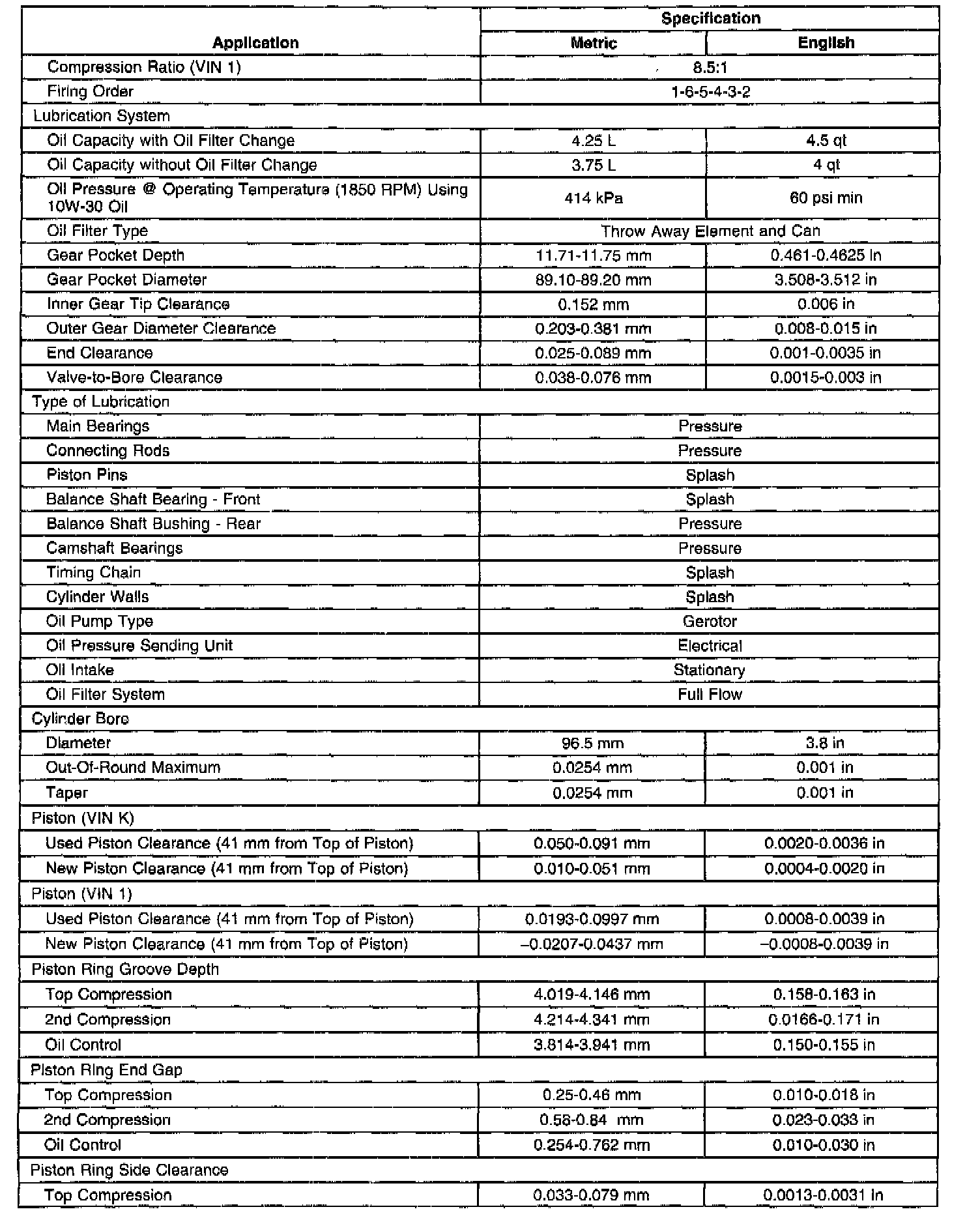

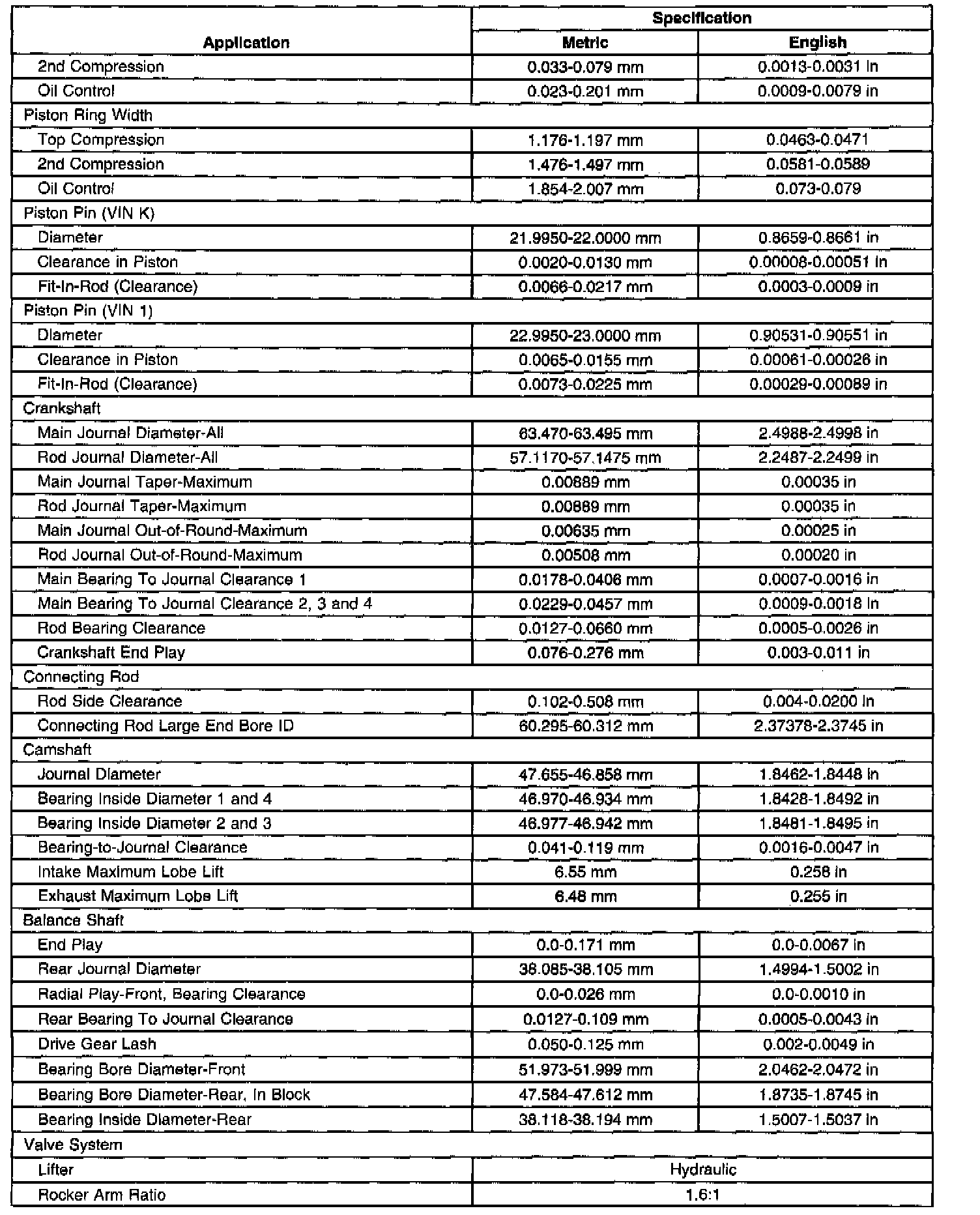

Engine Mechanical Data

2 Of 4:



3 Of 4:



4 Of 4:
