Home >> Pontiac >> 1998 >> Grand Prix V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Powertrain Management >> Relays and Modules - Ignition System >> Ignition Control Module >> Locations >> Ignition Control (IC) Module

Ignition Control (IC) Module

Locations View:

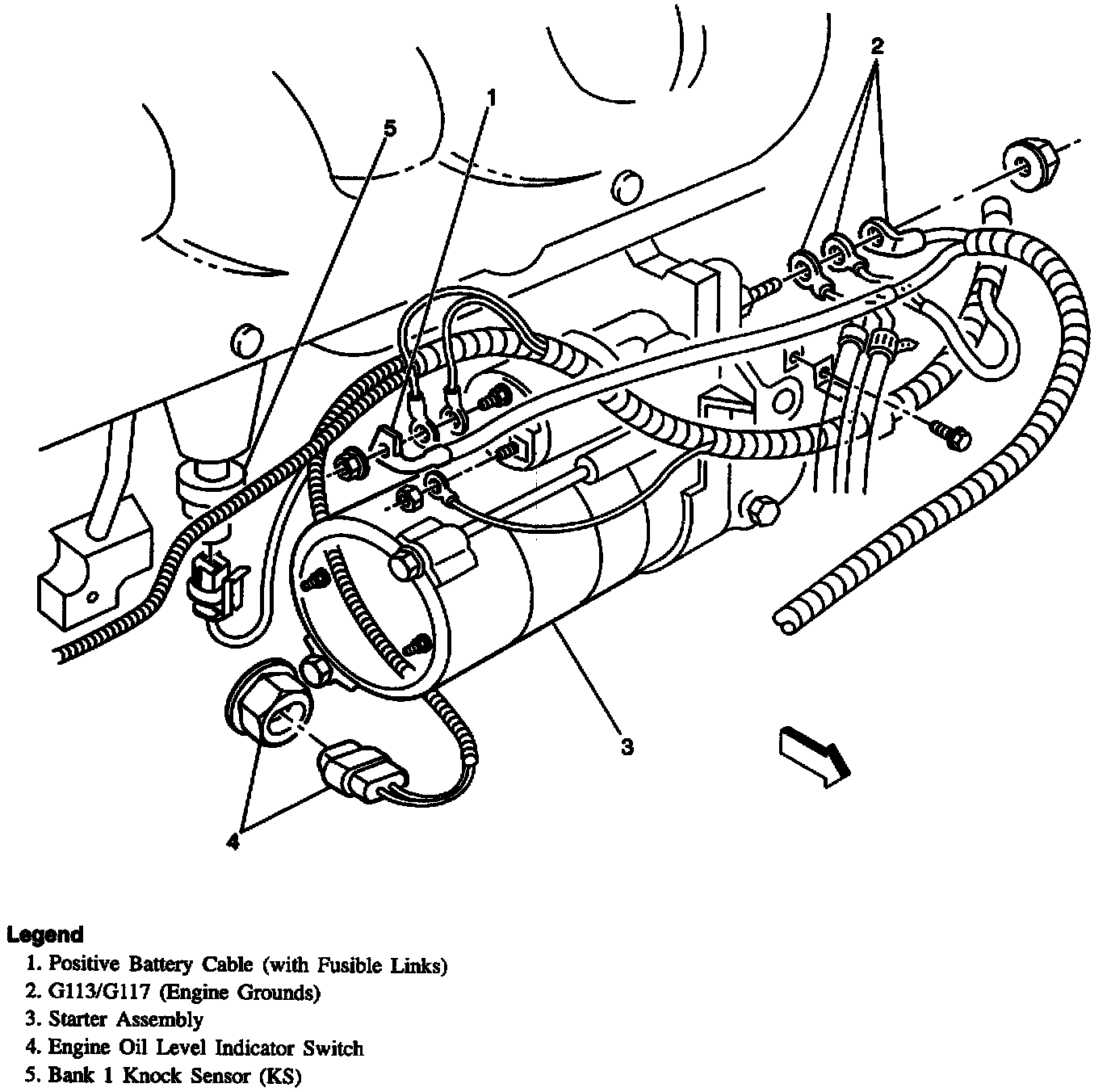

Lower Front Of VIN K Engine Compartment (VIN 1 Similar):
