Grand Prix V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>
Automatic
Automatic
Heater A/C Control (CJ2):

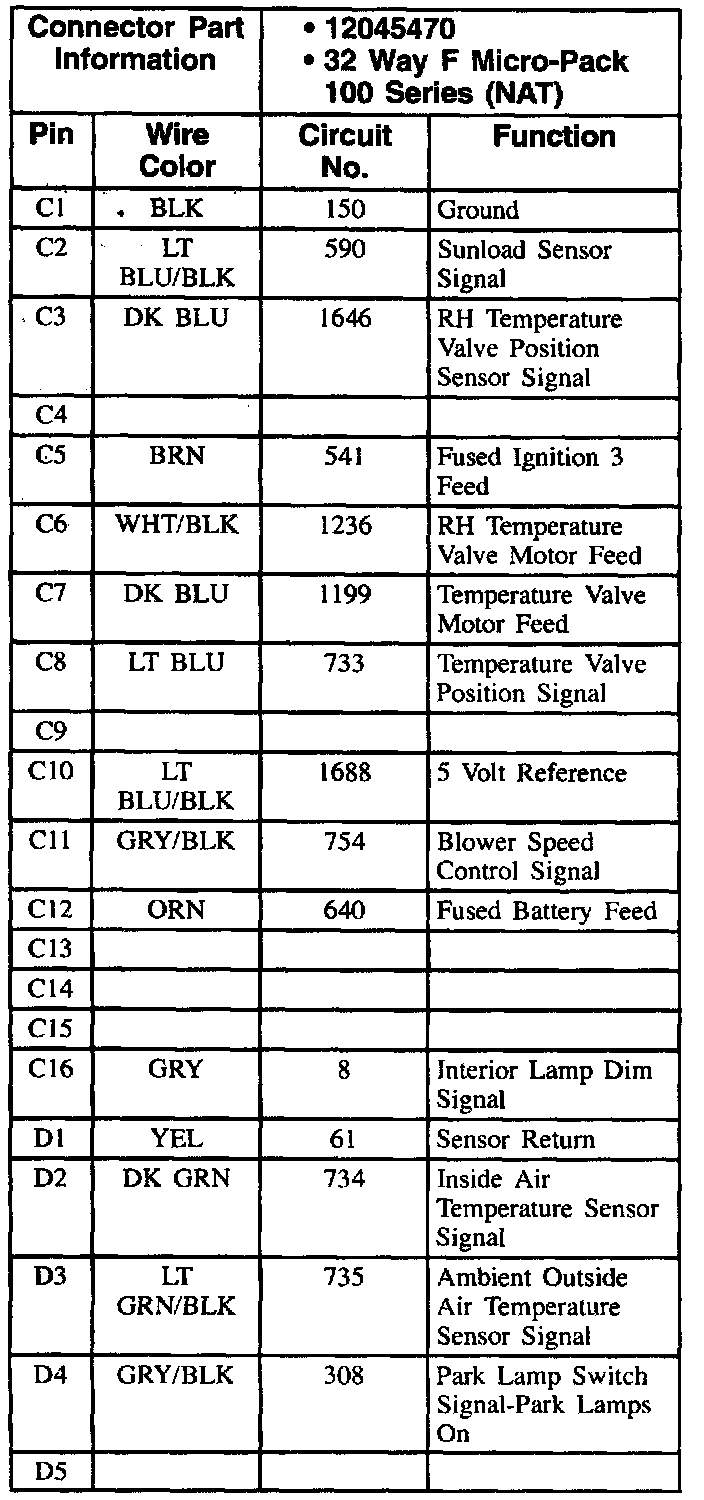

Heater A/C Control (CJ2) (Part 1 Of 2):

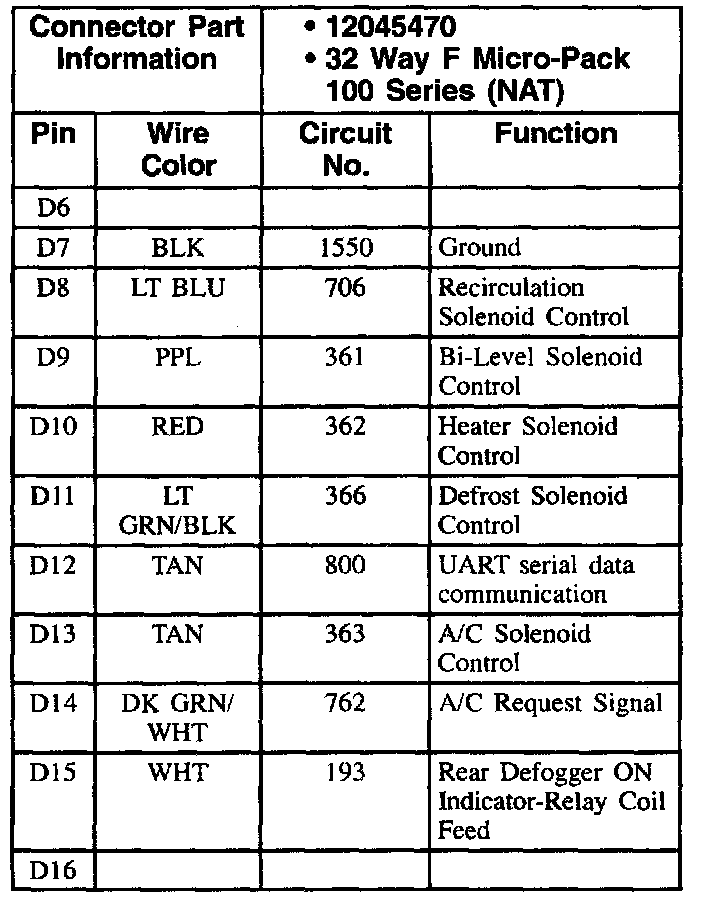

Heater A/C Control (CJ2) (Part 2 Of 2):
