Home >> Pontiac >> 1998 >> Grand Prix V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Heater-A/C Module

Heater-A/C Module

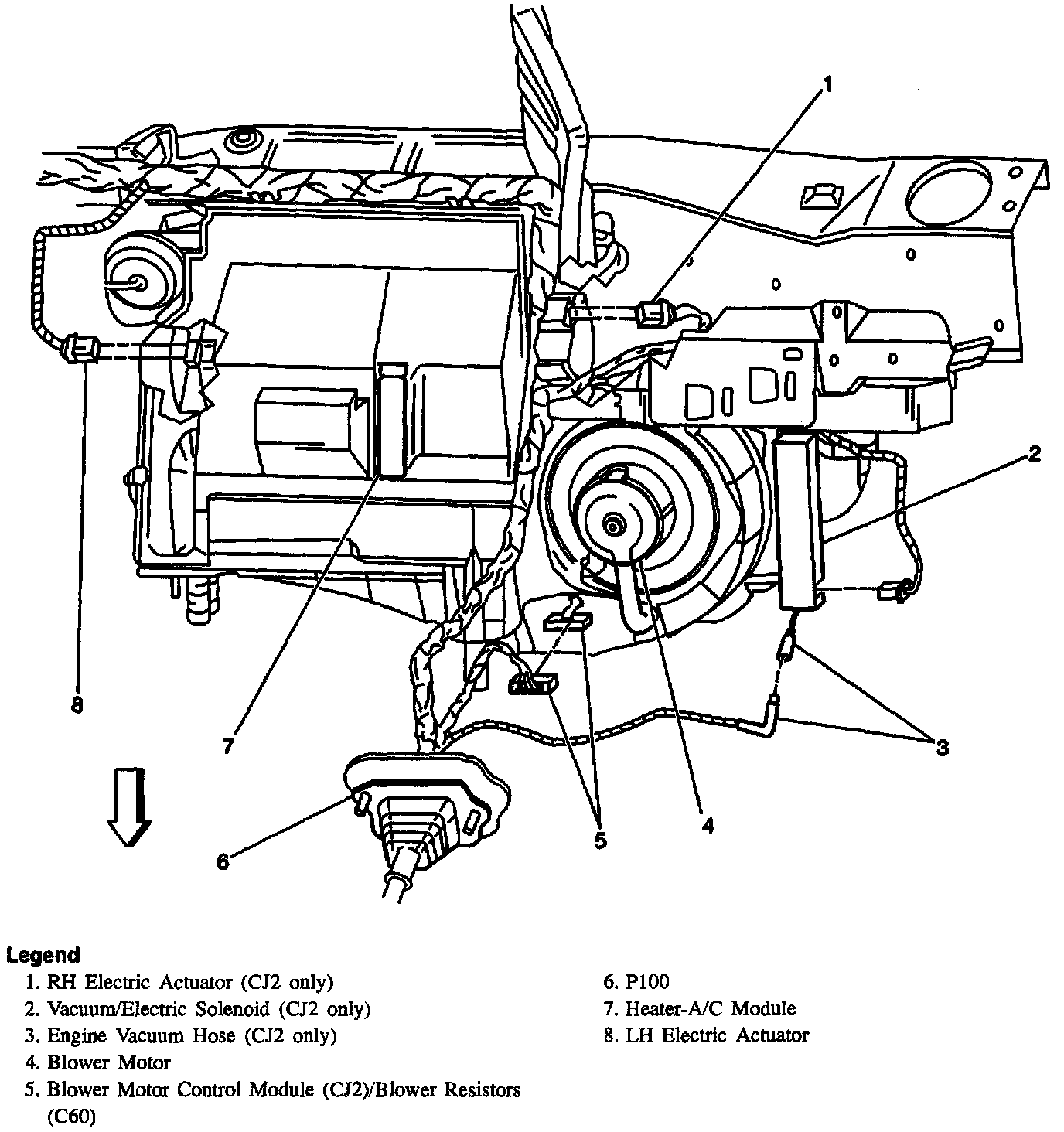

Behind Center Of I/P (CJ2 Shown, C60 Similar):
