Sunfire L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Fuse Block
Fuse Block

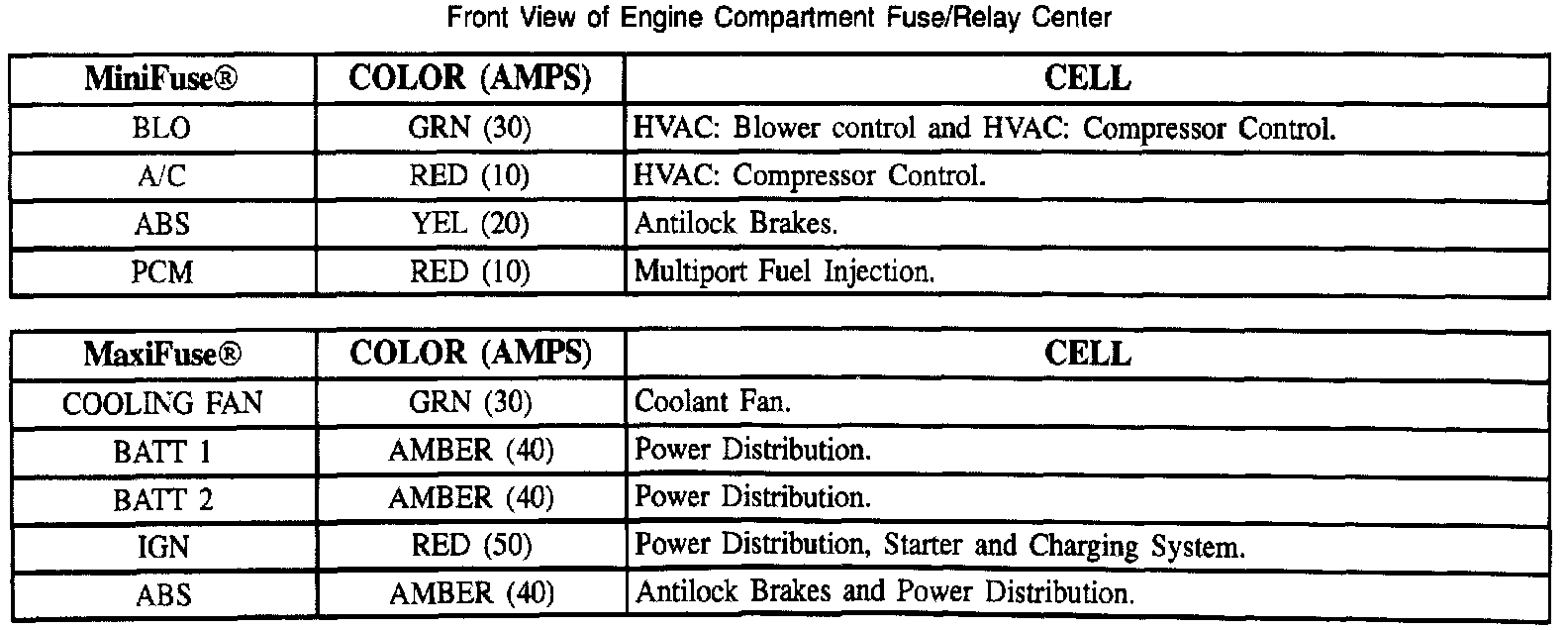

Front View Of Engine Compartment Fuse/Relay Center:

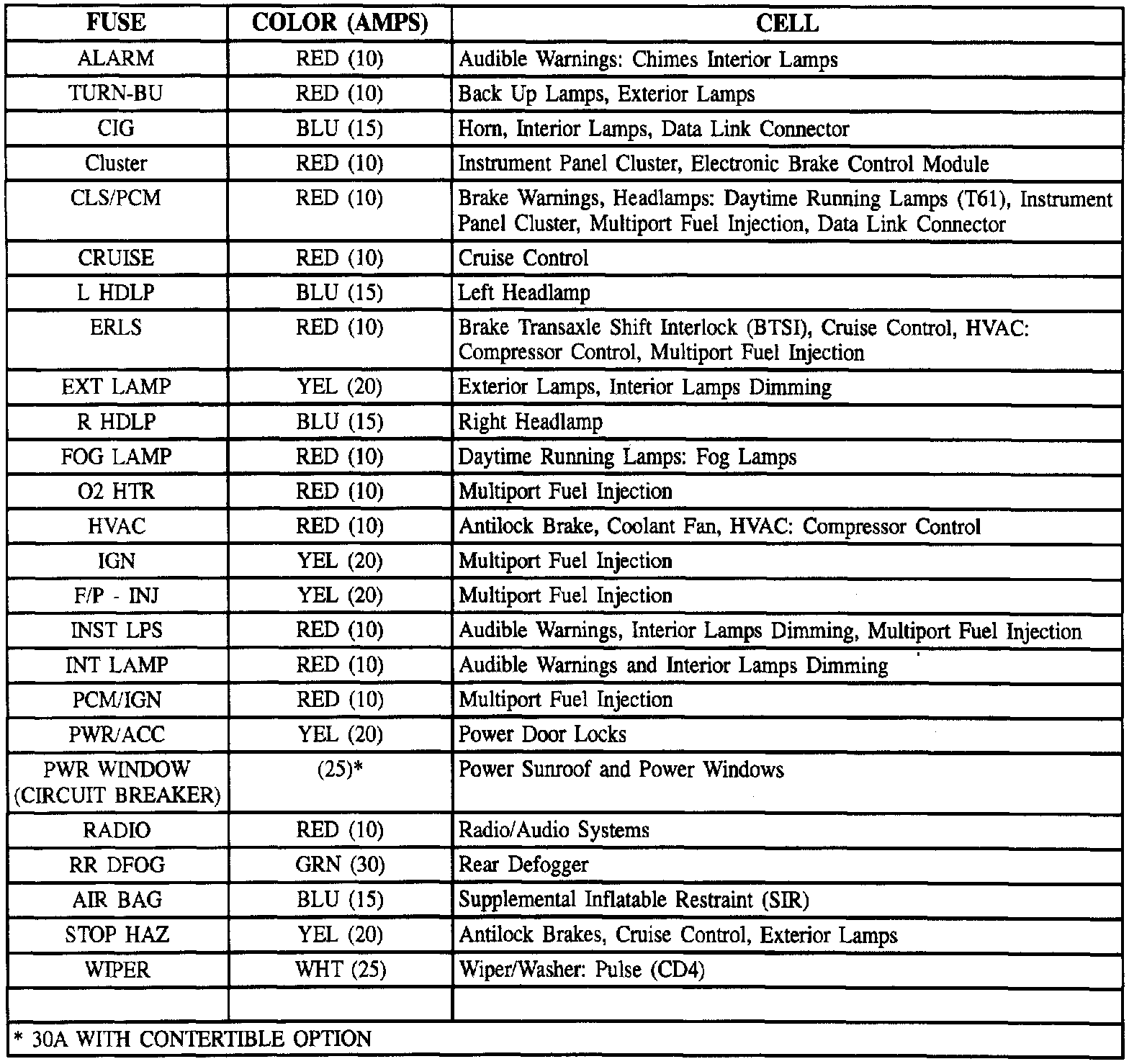

Front View Of Fuse Block:
