Home >> Pontiac >> 1997 >> Sunfire L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch

Power Window Switch

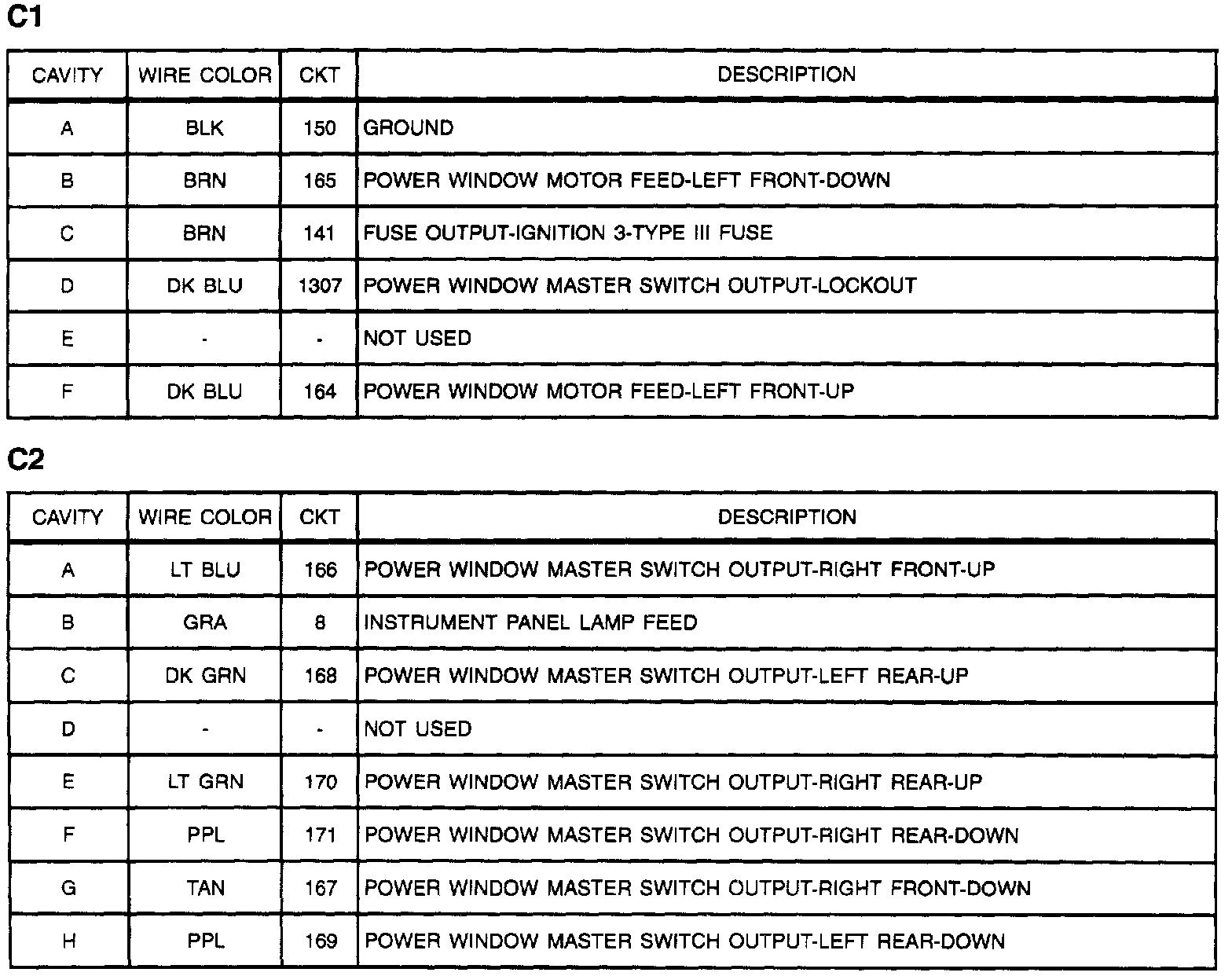

Master Window Switch: 4 Door (C1 And C2):



Master Window Switch: 4 Door (C1 And C2):



Rear Window And Door Lock Switches:
