Home >> Pontiac >> 1997 >> Firebird V6-3.8L VIN K >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Diagrams >> With HD6/HT6 Compressor

With HD6/HT6 Compressor

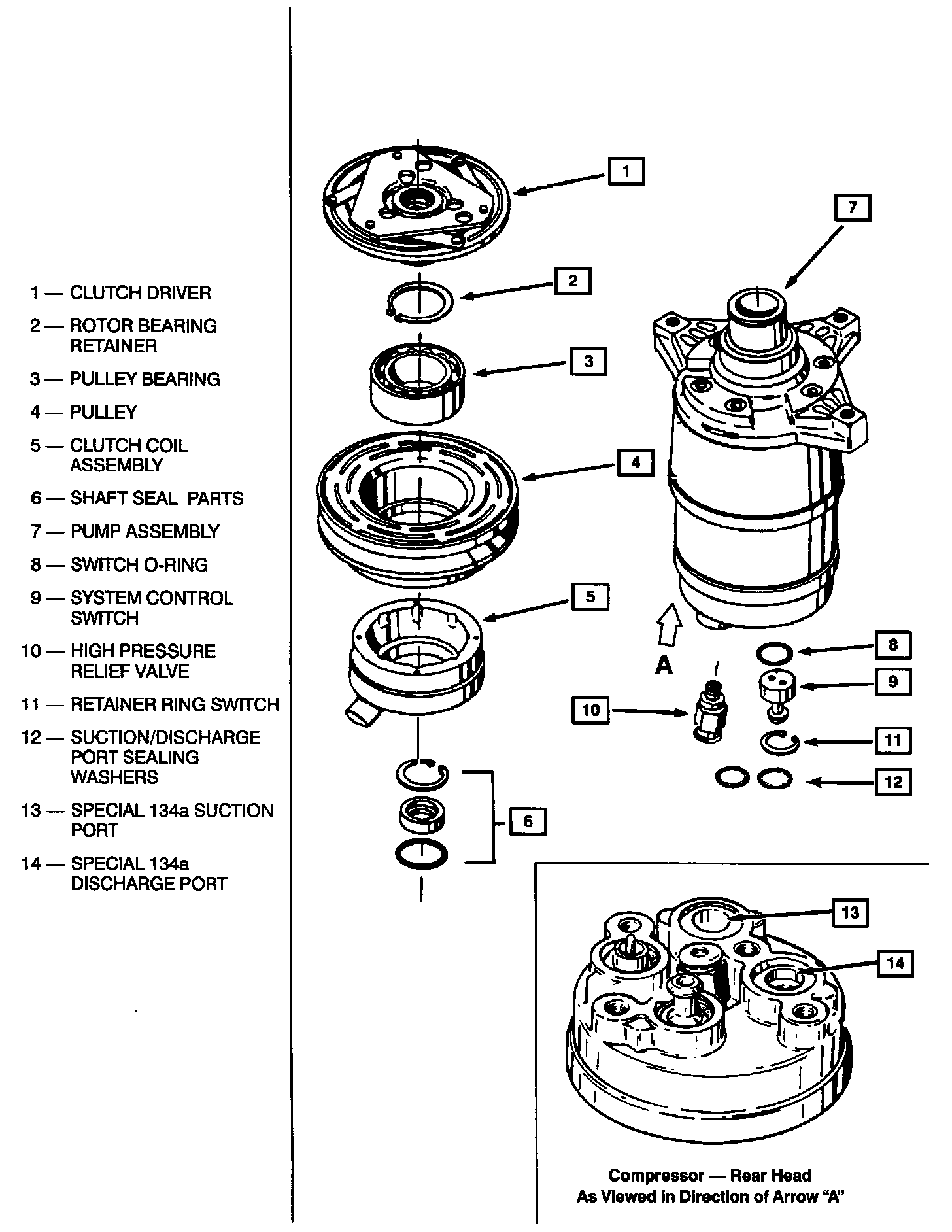

Compressor Components - Disassembly:
