Home >> Pontiac >> 1997 >> Bonneville V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Body and Frame >> Seats >> Power Seat Control Module >> Diagrams >> Seat Control Module >> C3

C3

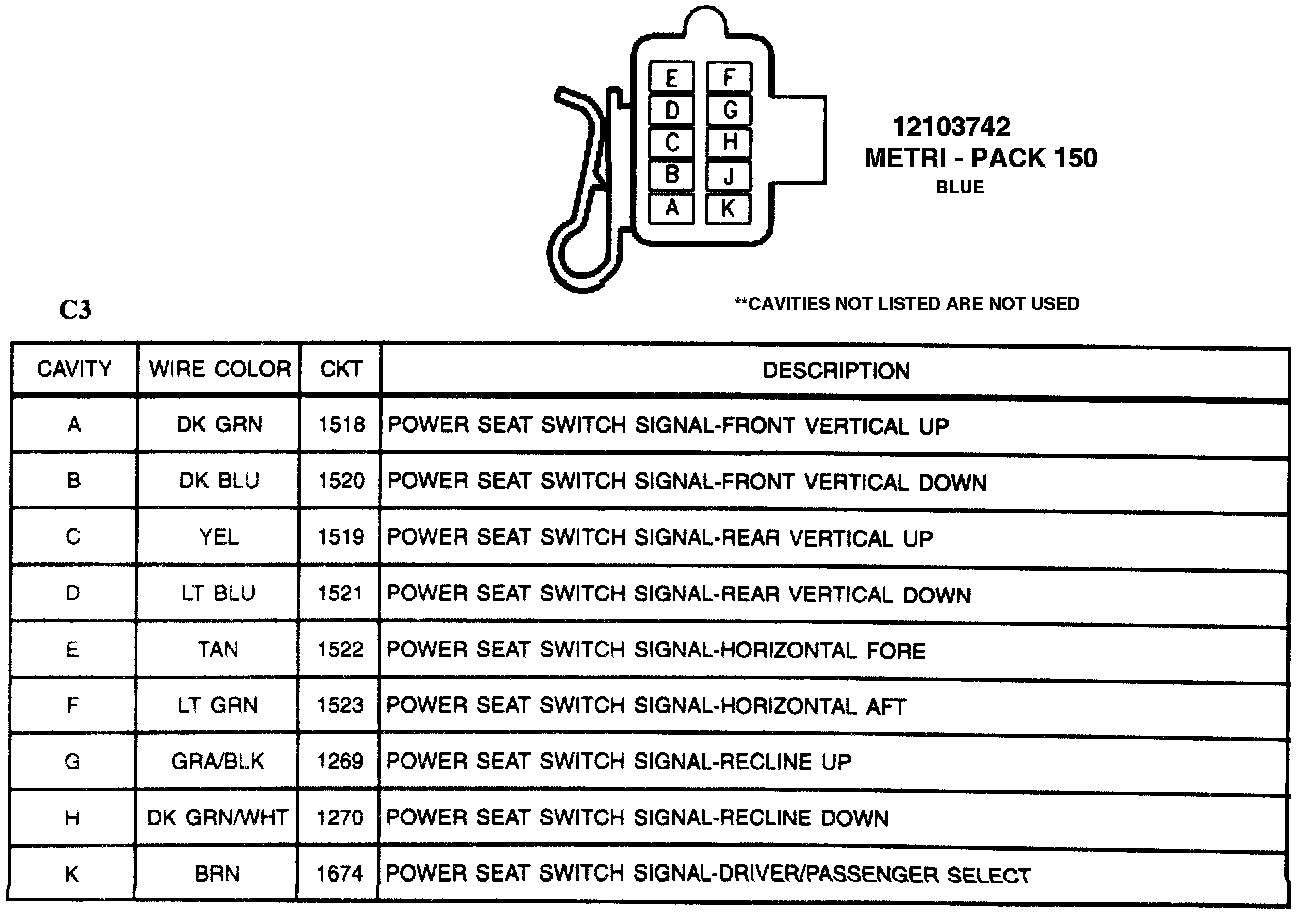

Seat Control Module: C3 (With AL7):
