Home >> Pontiac >> 1996 >> Firebird V8-350 5.7L VIN P SFI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> C1 (Red)

C1 (Red)

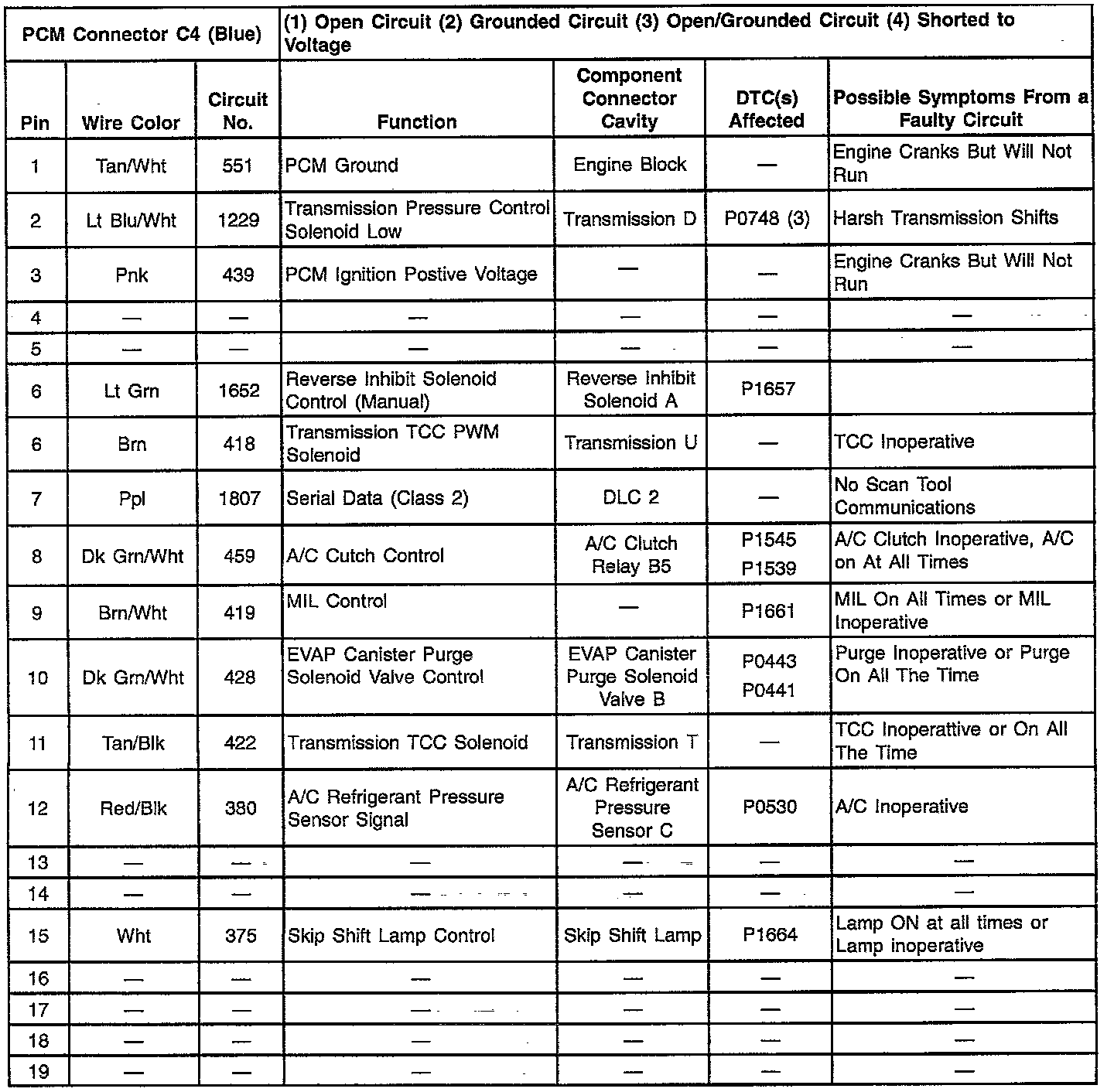

Pins 1-19:

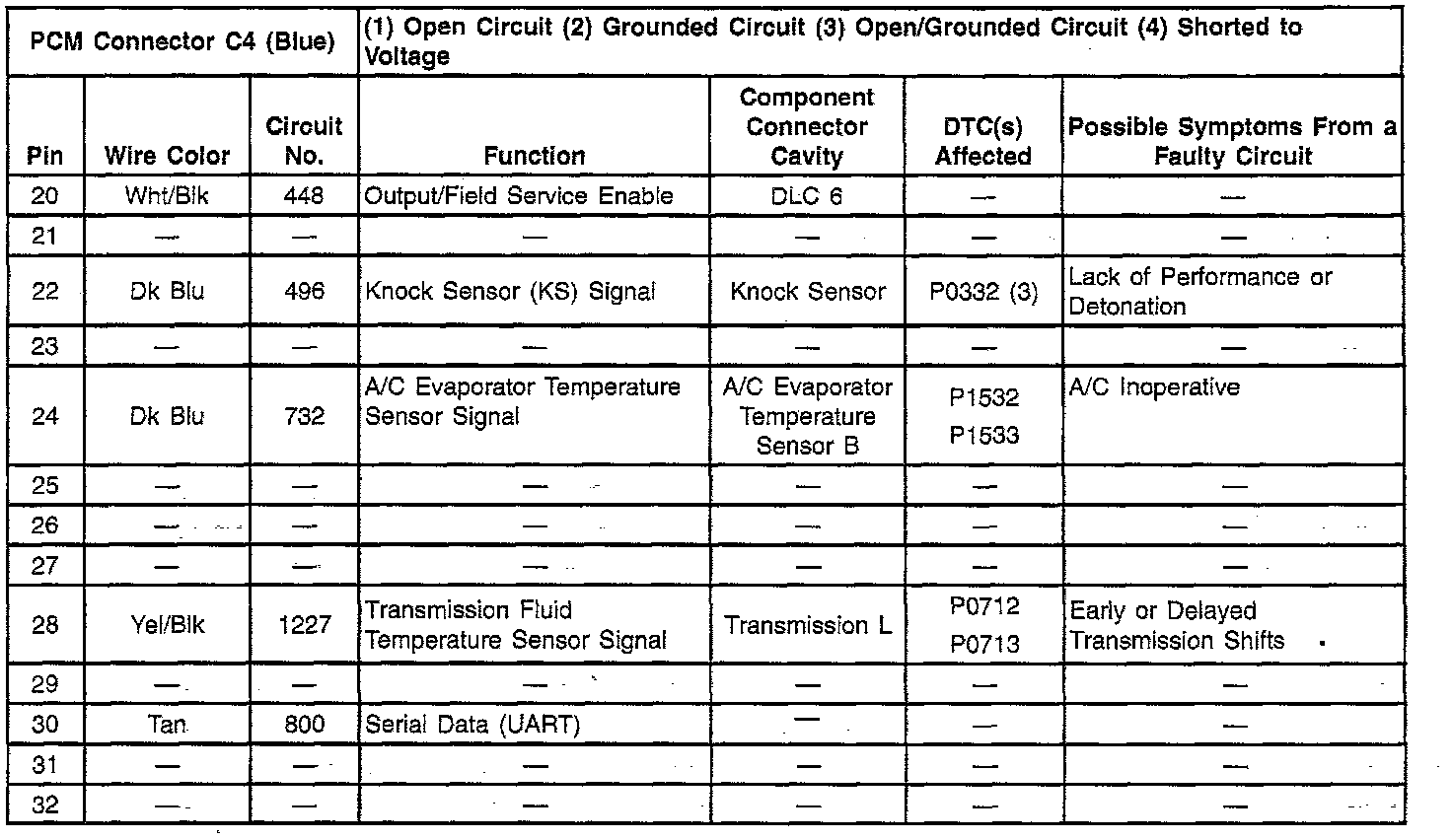

Pins 20-32:
